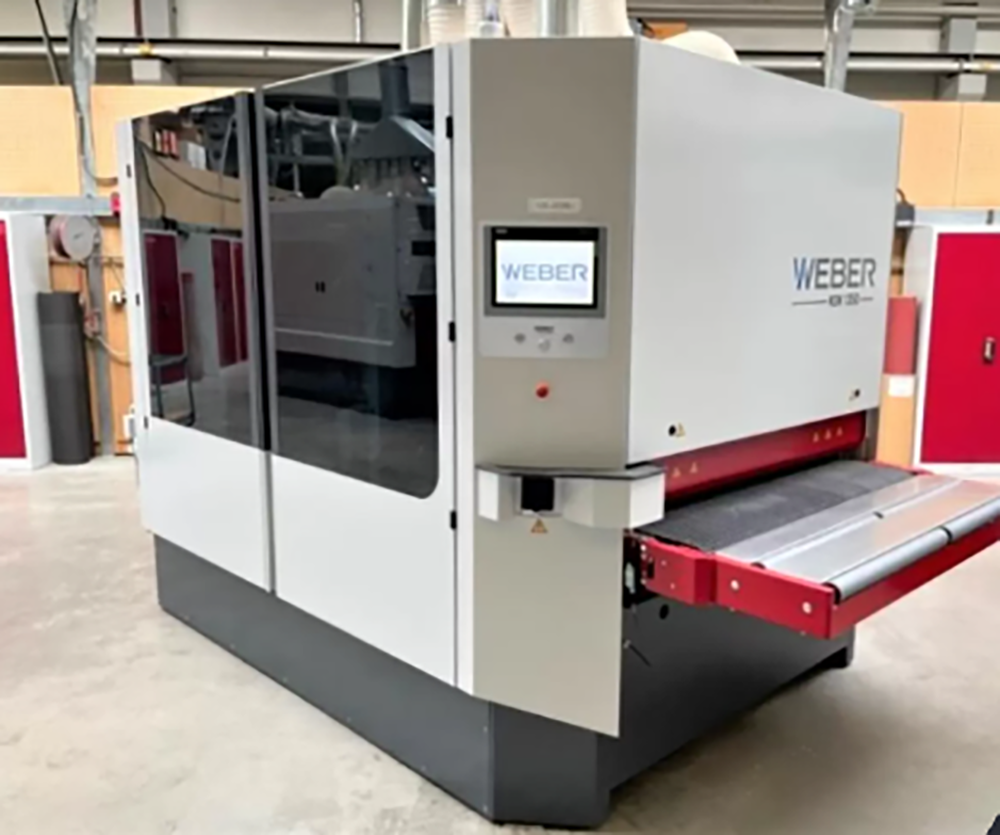

Weber KSN-3-1350 DCM Intention

Wide belt sanding machine
Demonstration machine
Fine and cross sanding machine with 3 units

Working width: 1350 mm
Workpiece thickness: 3 - 200 mm

Equipped with:
1x contact roller unit, 19 kW, frequency-controlled (3 - 20 m/s)
Grooved steel contact roller Ø 210 mm for dimensionally accurate calibration
Electrical and program-controlled infeed of the contact roller
Pressure beam guidance of the workpieces
Individual pusher control (potential-free contact)
Sanding belt dimensions: 1370 x 2620 mm

1x cross belt unit, 11 kW, frequency-controlled (1.8 - 18 m/s)
Pressure lamella belt with felt and graphite for long service life
ISA sectional pressure beam system with 22 mm workpiece detection and 22 mm pressure piece width
Lacquer package incl. frequency converter and sanding belt blow-out
Single pusher control (potential-free contact)
Sanding belt dimensions: 150 x 5100 mm

1x CBF combination unit, 15 kW, frequency-controlled (1.8 - 18 m/s)
Grooved rubber contact roller Ø 130 mm, rubber hardness 60 Shore
Mechanical adjustment of the contact roller for grain compensation
Pneumatic lifting of the contact roller
Cross-running lamella belt with sep. drive 4.0 kW drive
ISA link pressure beam system with 22 mm workpiece detection and 22 mm pressure piece width
Lacquer package incl. frequency converter and sanding belt blow-out
Individual pusher control (potential-free contact)
Sanding belt dimensions: 1370 x 2620 mm

1x workpiece blow-out device - with WEBER ES system
Energy-saving workpiece-controlled workpiece cleaning with individually controlled cleaning nozzles
with conveyor belt cleaning function
Individual pusher control (potential-free contact)

ISA (intelligent sanding pressure adjustment)
Link pressure beam system with full tolerance compensation
Pressure piece width 44 + 22 mm (movable in longitudinal and transverse direction)
Universal flap with point-shaped control for all sanding work (no change required)
Tolerance compensation +/- 1 mm
High-resolution workpiece detection with one indexing roller per pressure piece
Free feeding of complex part shapes
Multiple feeding with small lateral distance
Sanding intensity individually adjustable at all edges
Sanding pressure adjustable via proportional valves
Feed-controlled infeed and outfeed

WEBER AWDM
Automatic thickness adjustment at the machine inlet with start-up switch
For easy measurement of long workpieces
Programmable infeed
Automatic feed start/stop control

WEBER i-Touch operation
One rotary knob for navigating through the most important functions
All sanding parameters such as sanding belt speed,
feed speed and workpiece thickness can be set via
direct access using the rotary knob.

"SIEMENS" TP900 Comfort operating terminal
Graphic operator guidance via 9" color screen
Program memory with 300 programs
Setting of all parameters via program

Operating and belt change side: Left

Infinitely variable feed speed, 2 - 18 m/min, motor 2 kW
Transport table in vacuum design

Compressed air requirement: 5.5 bar
Operating voltage: 3x 400Volt/N/PE 50Hz
Control voltage: 24V DC
incl. new transport carpet!
