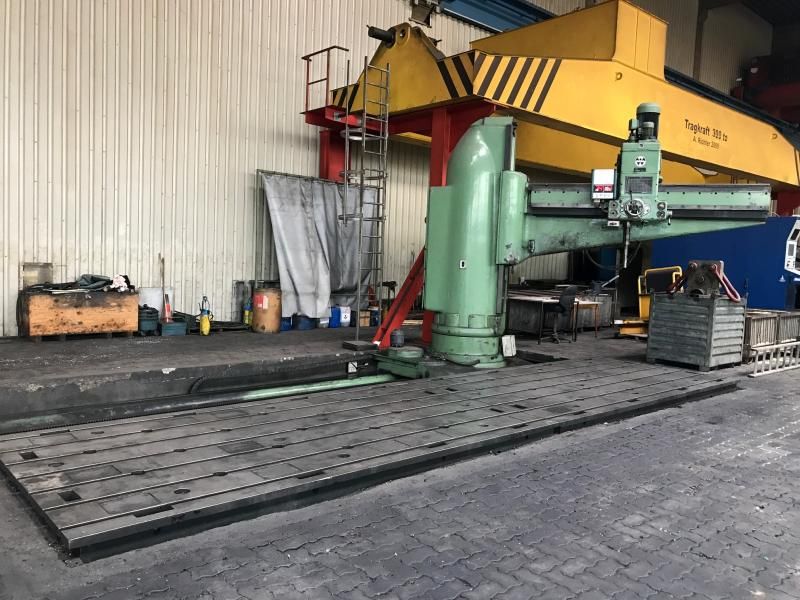

Webo HRH 100 / 3000 1600 rpm

Drilling Capacity in Steel (ST 60): Ø100 mm at 0.5 mm/rev feed
Nominal Arm Reach: 3000 mm
Maximum Arm Reach: 3100 mm
Spindle Taper: MK6
Spindle Speed Range: 22.4–1600 rpm, 36 steps
Feed Range: 0.05–2.5 mm/rev, 18 steps
Distance Spindle to Base Plate: 970–2335 mm
Quill Travel: 325 mm
Arm Swivel Range: 360°
Bed Travel Length: 7500 mm
Clamping: Electric Central Clamping
Drilling Unit Longitudinal Travel: Motorized on Bed
Clamping Table Area: 8000 × 2100 mm
Clamping Plates: 2 pcs, each 4000 × 2100 × 360 mm, 7 T-slots
Machine Dimensions (L×W×H): 8000 × 4550 × 4300 mm
Maximum Height: 4300 mm
Transport Height (Bed with Machine): approx. 3150 mm
Transport Weight (Bed with Machine): approx. 20 t
Transport Dimensions (Per Clamping Plate): 4000 × 2100 × 900 mm
Transport Weight (Clamping Plates): approx. 14 t
Condition: Good
