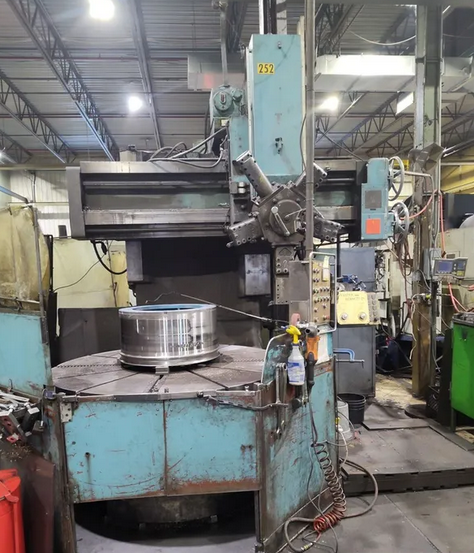

Webster & Bennett 72 E-R Table diameter: 72″ (4-jaw chuck)

Machining diameter: 84″
Maximum machining height (under turret): 59″
Maximum workpiece weight: 35,200 lbs
Maximum ram travel (Z axis): 38″
Horizontal travel (X axis): 50″
Cross rail travel: 24″
Number of tools: 5
Main drive motor: 40 HP
Table cutting speed range: 3.8 – 83 RPM
Number of table speeds: 12
Ram head angle adjustable: ±30°
Number of feed rates: 12
Machine dimensions (W × D): 156″ × 120″
Machine height (max with cross rail at top): 167″
Machine weight: 34,000 lbs
Operator pendant control
ACCU-RITE 2-axis digital readout
Four-jaw scroll type chuck
5-position turret
Power elevated rail
