Webster & Bennett S Type Table Diameter: 1500 mm

Ref : 2773266-3-GO

Condition : Used

Manufacturer : Webster & Bennett

Model : S Type

Short Description : Table Diameter: 1500 mm

Year(s) : 2005

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Max Swing: 2100 mm
Max Turning Diameter: 2100 mm
Min Height Under Crossrail: 700 mm
Max Height Under Crossrail: 1600 mm
Ram Travel: 1219 mm
Ram Section: 203 mm
Number of Gear Ranges: 2
Main Spindle Motor: 57 kW
Rapid Traverse Rates: 5000 mm/min
Electrical Supply: 415V, 3PH, 50Hz

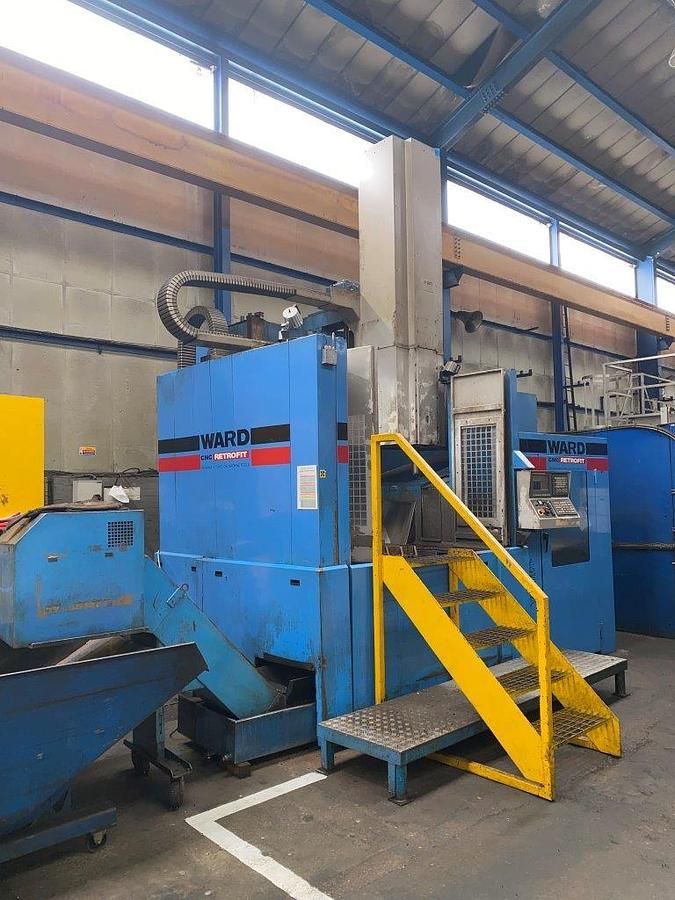

Ward CNC Retrofit
Fanuc 18i Control System
Fully Enclosed and Interlocked Guarding System
Manual and Automatic Operation
4 Jaw Manual Faceplate Type Chuck
Centralized Lubrication System for Axes & Ballscrews
Oil Cooled Recirculating Lubrication System for Main Spindle and Drive
Coolant Tank and Equipment
