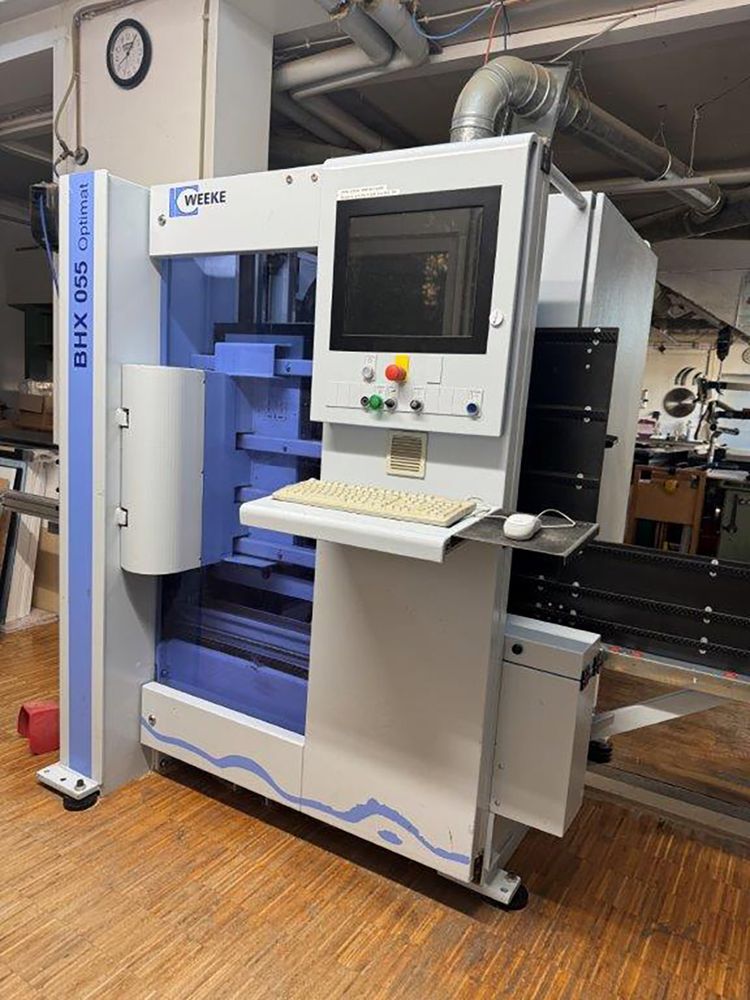

Weeke BHX 055

Vertical machining centre

Technical data:
- Min. workpiece length: 200 mm
- Max. workpiece length: 3050 mm
- Min. workpiece width: 70 mm
- Max. workpiece width: 850 mm

Vertical drilling gear V13 High Speed, with individually selectable spindles
- Spindle distance 32 mm
- Horizontal drilling gear with 4 spindles in X direction
- Horizontal drilling gear with 2 spindles in Y direction

Grooving saw, integrated in the drilling head, with D=100 mm
- Milling motor 5 KW, 6,000 - 18,000 rpm with manual hydro quick-change system

Control: Power Control PC 85
With 17-inch TFT screen
Woodwop, for graphical, dialogue-oriented creation of CNC programmes.
With graphical user guidance for managing tool data.
With workpiece length-dependent machining in the X direction
