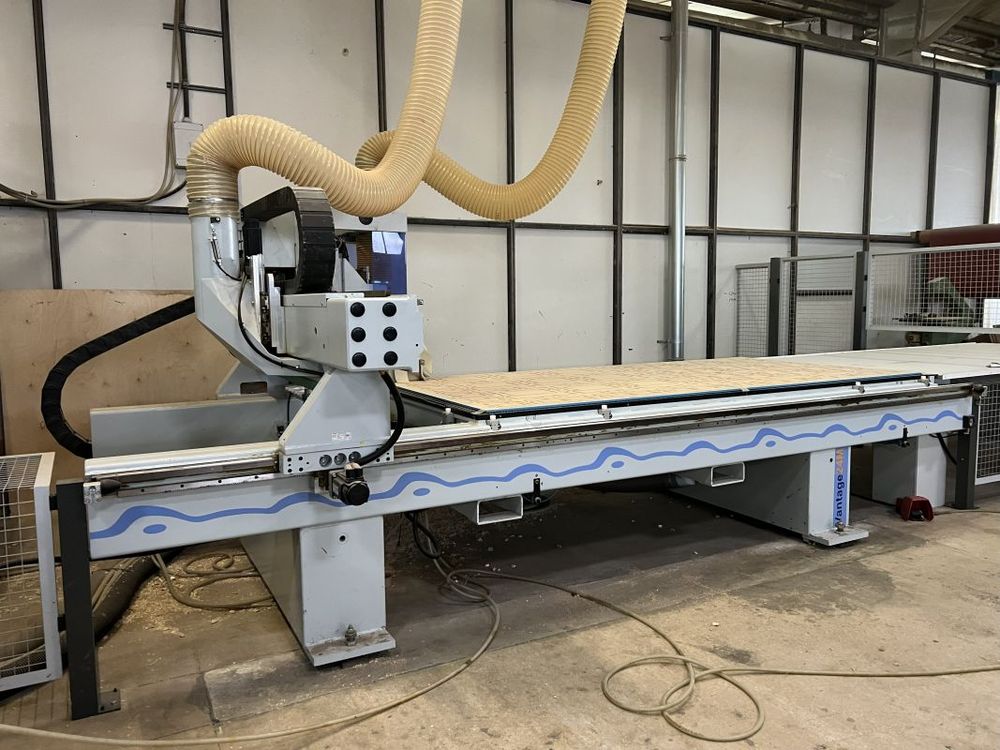

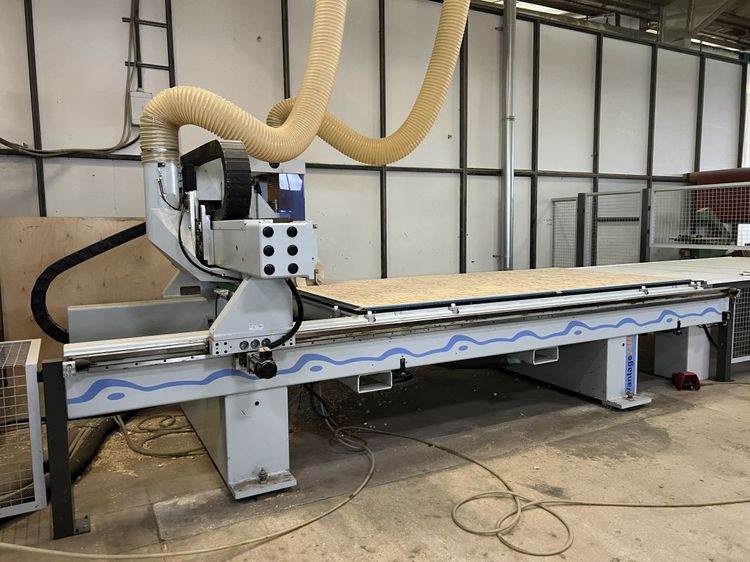

Weeke Optimat BHP Vantage 24M

CNC machining center
Technical data:
Vector speed: X/Y = 96 m/min, Z = 25 m/min

Matrix table 3100 x 1550 mm
4 vacuum areas
4 vacuum generators with a total vacuum capacity of: 360/432 m3/h, 50/60 Hz
4 pneumatic lowerable AL workpiece stops incl. electrical end position detection
Workpiece thickness: max. 100 mm

F1-HSK63-9 kW, W8 lateral
Tool holder: HSK63
Direction of rotation: right/left
Speed: 1250 - 24000 rpm, continuously programmable
Drive: frequency-controlled three-phase motor
Max. power at the tool: 7.5 / 9 kW in continuous/intermittent operation
Cooling: Air-cooled

W8 Side Automatic tool change magazine with 8 positions
Arrangement: In the machine frame
Tool holder: HSK63
Tool weight: Max. 5 kg incl. HSK holder
Tool diameter: Max. 135 mm at full occupancy
Tool change time: 10 - 18 sec.

Power control PC85
Ejection device incl. suction for protective plate and workpiece (1550 mm)
Suction channel in the outlet from below, 1550 mm
