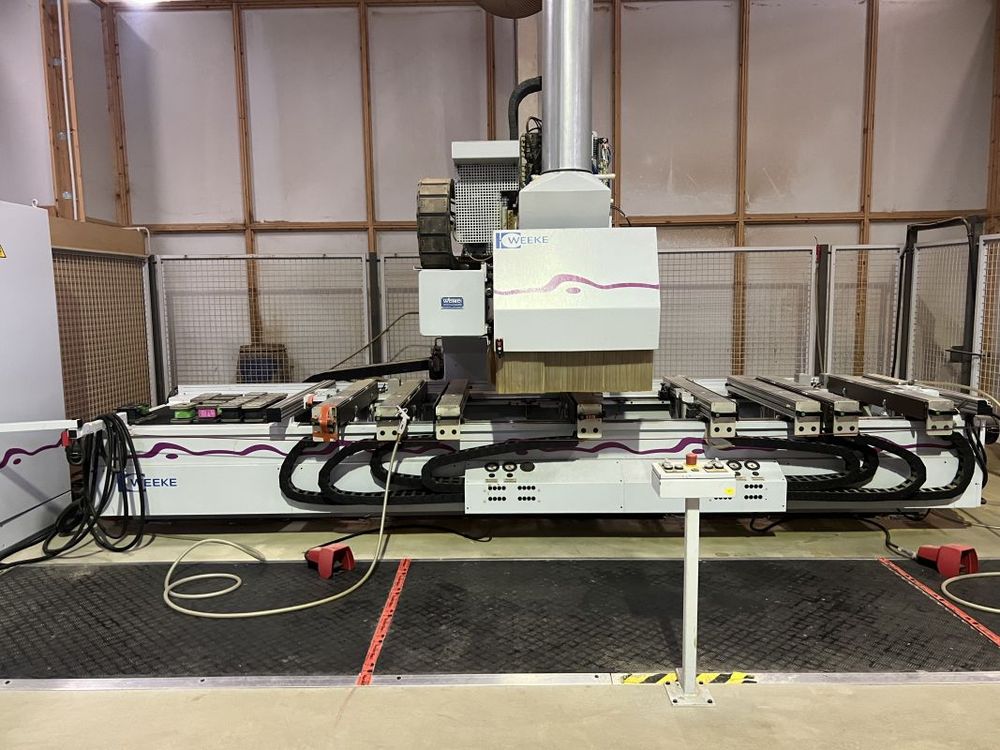

Weeke Optimat BP 145

CNC machining center
Technical data:
Working length: 3500 mm
Working width: 1300 mm

1 vertical drilling unit with 22 spindles
Feed stroke Z: 60 mm
Drive: 1.5 kW
Direction of rotation: right/left
Speed: 1500 rpm to 5000 rpm, frequency-controlled
Drill chuck: 10 mm
Drilling depth: max. 38 mm
Total drill length: 70 mm
Drill diameter: max. 20 mm, one spindle up to 25 mm, max. 35 mm
Spindle spacing: 32 mm (21 spindles)

1 horizontal drilling unit with 4 spindles
2 drilling spindles each in a 32 mm grid on the right and left in the X direction
Drilling height in the Z direction: max. 38 mm from the top edge of the workpiece
Drilling depth: max. 38 mm
Direction of rotation: left
Speed: 1500 rpm to 5000 rpm, frequency-controlled
Drill chuck: 10 mm
Total drill length: 70 mm
Drill diameter: max. 20 mm

1 horizontal drilling unit with 2 spindles
in Y direction
Drilling height in Z direction: max. 38 mm from top edge of workpiece
Drilling depth: max. 38 mm
Direction of rotation: clockwise
Speed: 1500 rpm to 5000 rpm, frequency-controlled
Drill chuck: 10 mm
Total drill length: 70 mm
Drill diameter: max. 20 mm

1 tool change spindle 9 kW - HSK F63
Speed range: infinitely variable 1250 - 24000 rpm, programmable
Anti-reb: frequency-controlled three-phase motor
Power at the tool: max. 7.5 kW / 9 kW in continuous and intermittent operation
Cooling: liquid circulation cooling

Tool changer magazine for 8 positions
(plate changer)
Tool weight: max. 5 kg total weight
Magazine capacity: max. 100 mm when fully loaded (8 milling tools), max. 160 mm with smaller tool diameters or free space on the secondary positions
Changeover time: approx. 12 - 18 sec. Chip to chip

HSK 63 combination unit Drilling / milling / sawing
Drilling depth: max. approx. 50 mm
Drill chuck: for ER 25 collet
Milling cutter diameter: max. 20 mm
Milling depth: max. approx. 50 mm
Milling cutter chuck: for ER 25 collet
Saw blade diameter: 150 mm to 180 mm
Cutting depth sawing: max. 40 mm
Saw blade thickness: max. 8 mm
Saw blade holder: 30 mm mounting hole, 4 auxiliary holes 5.5 mm diameter, pitch circle 52 mm diameter
Speed: max. 15,000 rpm programmable
Rotation range: 360 degrees
Unit holder: HSK63F cone

HSK 63 lock case D=20 mm, with blow-off nozzle
Direction of rotation: right/left
Speed: max. 12,000 rpm
programmable
Tool holder: Weldon chuck 20 mm
Tool clamping length: max. 125 mm
Total tool length: 170 mm
Unit mount: HSK63F cone
Max. milling cutter diameter: 20 mm
