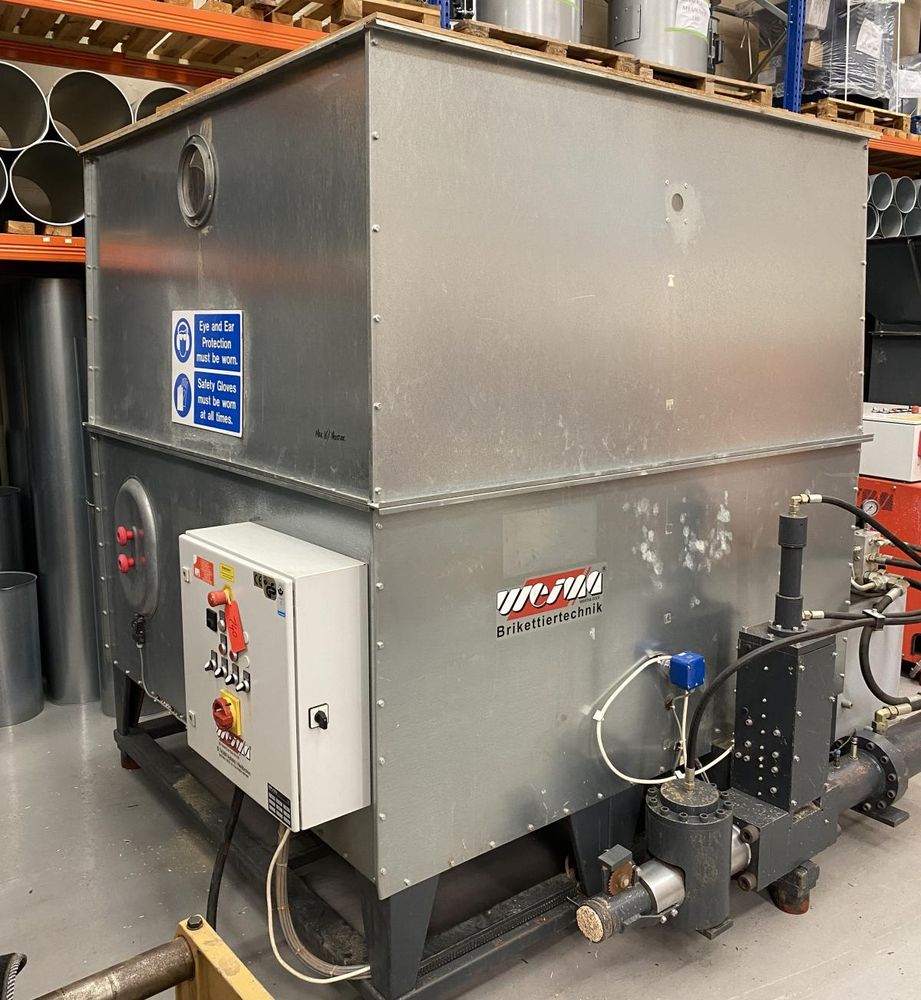

Weima TH 820

Briquette Press
CONDITION: Fully Serviced
YEAR OF MANUFACTURE: April 2009
VOLTAGE: 400V 3 Phase
DIMENSIONS MAX: 2900mm L x 2400mm W x 2420mm H
WEIGHT: 1700kg approx.

SPECIFICATION:
Briquette diameter : 80mm
Throughput per hour : 150-180Kg (dependant on material density)
Hopper dimensions (Standard) : 2000mm L x 2000mm W x 960mm H
(Optional Extra) Hopper Extension dimensions : 2000mm L x 2000mm W x 1000mm H
(Optional Extra) Heavy duty gear box & re-enforced floor for hopper extension.
(Optional Extra) High Level fill sensor for Hopper Extension
(Optional Extra) Access Hatch, linked to limit switch
Hydraulic Pump Motor : 11Kw
(Optional Extra) Hydraulic Oil Cooling System for use 7+ hours.
Automatic Start - Stop facility
Starts the briquetter when material is placed into the hopper.
Stops the briquetter when the hopper is empty.
Automatic Briquette Length Adjustment
On Board PLC automatically adjusts the machine to produce briquettes of consistant length
2787 Hours of use recorded on the Hourmeter at present.
