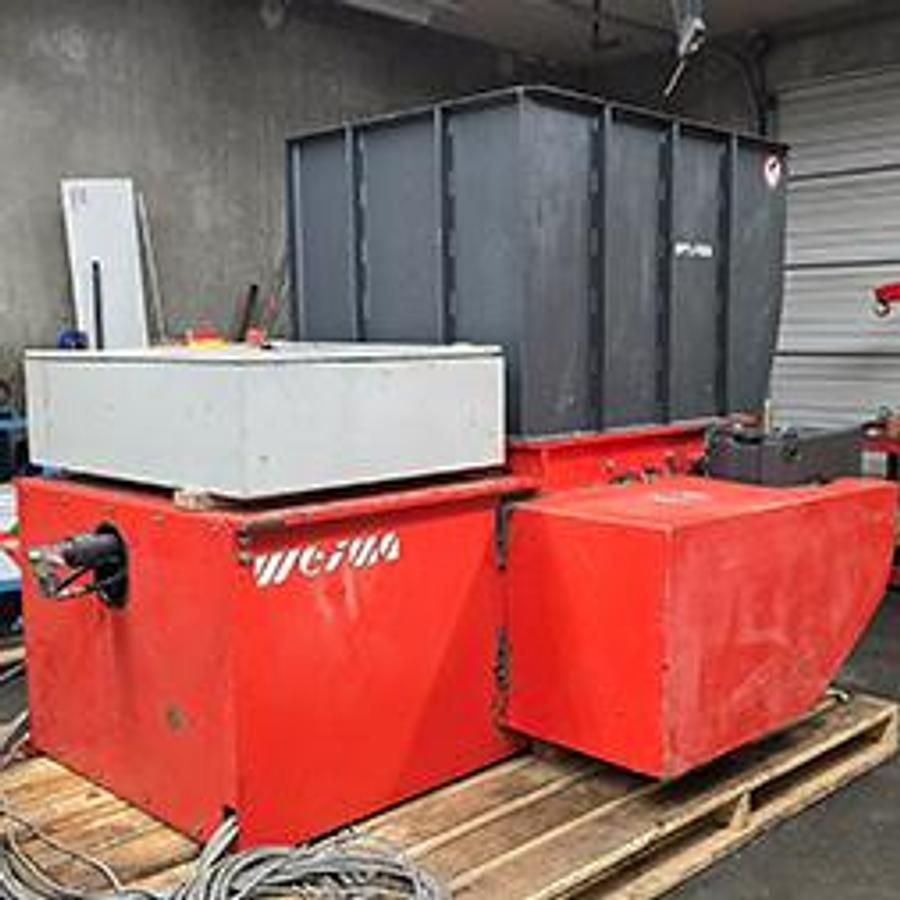

Weima WL 8

Used Wood Waste Shredder
Specifications:
· Hopper Opening: 39.4" x 49.2"
· (1,000 mm x 1,250 mm)
· Hopper Configuration: 3 straight sides with curved front wall
· Machine Opening: 39.4" x 39.4"
· (1000 x 1000 mm)
· Hopper Volume: 1.47 yds³ (1.1 m³)
· Rotor: "V-Rotor"
· Rotor Diameter: 10" (252 mm)
· Rotor Length: 39.4" (1000 mm)
· Rotor Speed: 100 RPM +/-*
· Type of Cutter: 4X indexable concave shape
· Size of Cutter: 1.57" x 1.57" (40 x 40 mm)
· # of Cutters: 54
· Extraction Requirements: 1900 cfm,
· 8” (200 mm) diameter
· Weight: App 4,630 lbs (2,100 kgs)
· Power: 460 V / 60 Hz / 3 Phase
· Screen: 20/25 mm
· Output**: 1,000 – 1,250 lbs/hr (450-570 kg/hr)

INCLUDED with WL(K) Series (4-8):
· Control Panel with Star Delta Starter and 16 ft. Cable Bundle
· Allen Bradley PLC w/ Touch Screen HMI
· Anti Vibration Feet
· V-Rotor
· Two (2) Rows of Rotor Knives
· Reverse Counter
· Fast Hydraulic Ram
· WEIMA Gearbox with Limit Switch
· Log Spacer Hopper
· 1-Sided Bottom Serrated Ram
