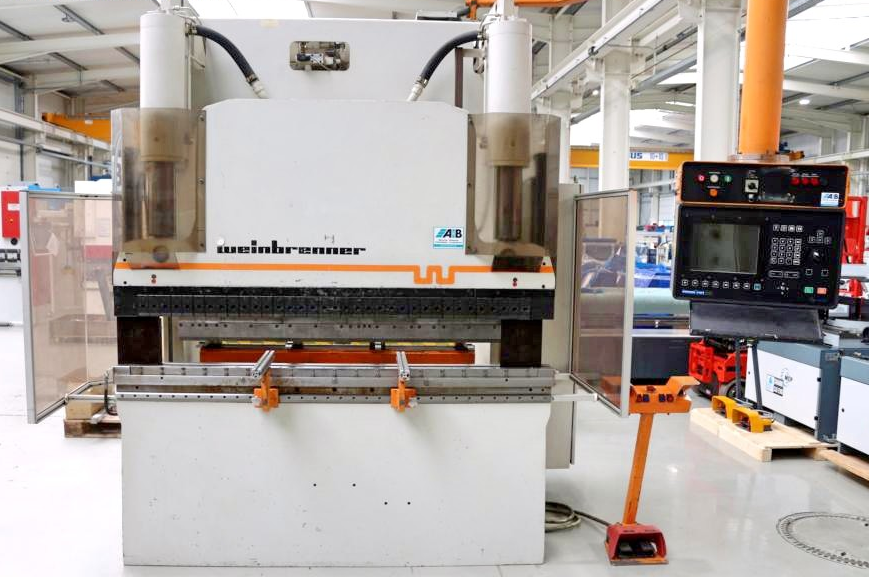

Weinbrenner GPL 80 80 T

Price:

WEINBRENNER GPL 80 1995

Press Force 80 t
Chamfer Length 2,050 mm
Distance Between Columns 1,550 mm
Column Arm 250 mm
Table Width 85 / 135 mm
Stroke Approx. 390 mm
Daylight Approx. 585 mm
Adjustment Speed 180 mm/sec
Working Feed 1 - 10 mm/sec
Return Speed 135 mm/sec
Work Height Max. 1,050 mm
Operating Hours 32,495 h
Oil Volume 200 l
Operating Pressure 320 bar
Total Power Requirement 11.6 kW
Weight 7,300 kg
Machine Footprint 3,700 x 2,000 x 3,000 mm
CNC Electro-Hydraulic Press Brake
Increased Installation Height Approx. 550 mm
Increased Cylinder Stroke Approx. 390 mm
CYBELEC CNC Control DNC 904 PS-A
Pivoting Control, Front Right
High-Resolution Graphic Display
Clear Menus in Operator’s Language
Large Tool and Product Library
Graphic 2D Programming
Automatic Bending Sequence Calculation
CNC-Controlled Axes Y1+Y2 / X / R
CNC Electro-Motorized Backgauge X Axis
4 Manually Adjustable Stop Fingers
CNC Electric Height Adjustment R Axis
Electro-Hydraulic Upper Tool Clamp
Electro-Hydraulic Lower Tool Clamp
1x Freely Movable 2-Hand/Foot Control
2x Front Movable Support Arms
Side Safety Device Swinging Doors
Rear Safety Device Swinging Doors
Machine and Control Manual with Circuit Diagram
