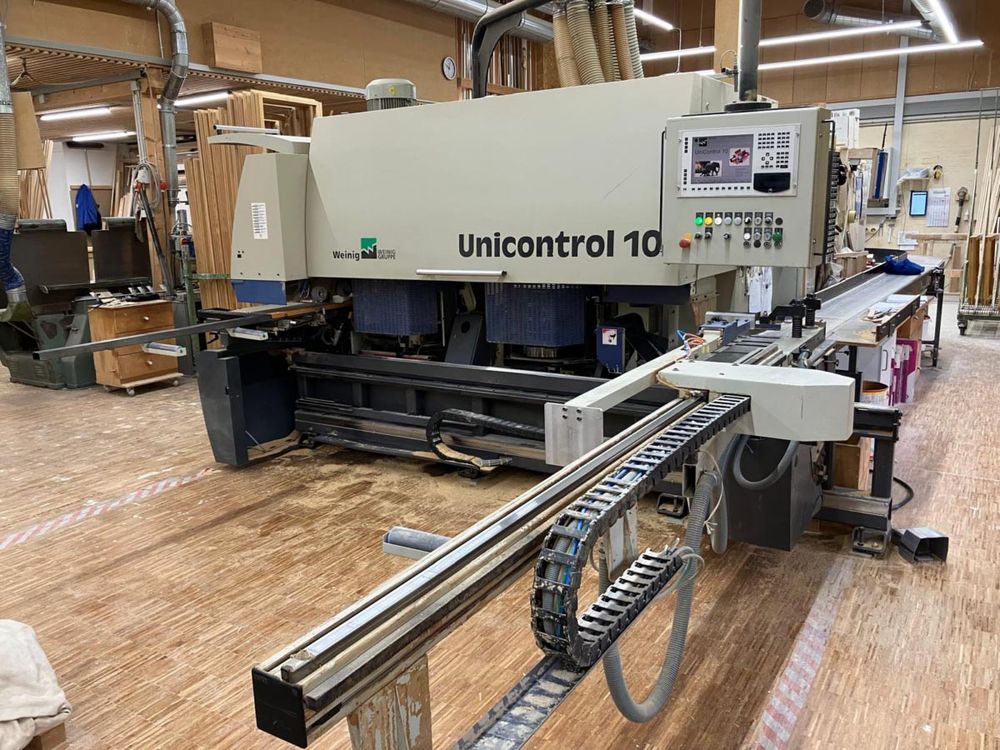

Weinig Unicontrol 10
EUROPE (Western and Northern)
CNC spindles with radial and axial CNC control
With the following processing units:
Cross-cut saw with laser alignment beam, motor power 3 kW, spindle diameter 40 mm,
spindle speed 3,000
Axial adjustment via NC axis
Radial adjustment pneumatic to 8 positions for edge rounding from above
Unit from below for edge rounding
Axial adjustment with crosscut saw
Tenoning and slotting spindle :
Motor power 15 kW
Spindle diameter 50 mm
Spindle speed 2,925 rpm
Tool swing diameter min. 380, max. 400 mm
Tool clamping length 640 mm
Axial adjustment via CNC axis
Axial travel 580 mm
Axial travel speed 100 mm/sec.
1. Profile spindle (synchronous and counter-rotating)
Motor power 11 kW
Spindle diameter 50 mm
Spindle speed 6,000 rpm
Tool clamping length 400 mm with counter bearing
Axial and radial adjustment via CNC axis
2. Profile spindle
Motor power 11 kW
Spindle diameter 50 mm
Spindle speed 6,000 rpm
Tool clamping length 400 mm with counter bearing
Axial and radial adjustment via CNC axis
Horizontal top profiling milling unit
Motor power 3 kW
Spindle diameter 40 mm
Spindle speed 9,000 rpm
Pneumatic adjustment to 8 positions, axially and radially
Vertical profile milling unit on the right-hand side at the end of the machine
Motor power 3 kW
Spindle diameter 40 mm
Spindle speed 5,850 rpm
Pneumatic adjustment to 8 positions, axially and radially
Additional accessories:
CNC-controlled length stop, mounted on the slotting table for lengths up to 3500 mm,
including a positioned cross-cut saw integrated into the control system.
Studio window unit, 60° swivelling on both sides
Double-part package with automatic separation and transfer
Synchronisation unit with automatic window mechanism for rebating
Rebating carriage for rebating small sash widths
Air conditioning unit in the control cabinet
NEXUS PC control system
Automatic turning system
Slat conveyor, including conveyor belt for returning workpieces to the operator
Tools option:
Window sections see PDF appendix
IV 68 Wood, Wood/Aluminium
IV 78 Wood, Wood/Aluminium
IV 68 Front doors
