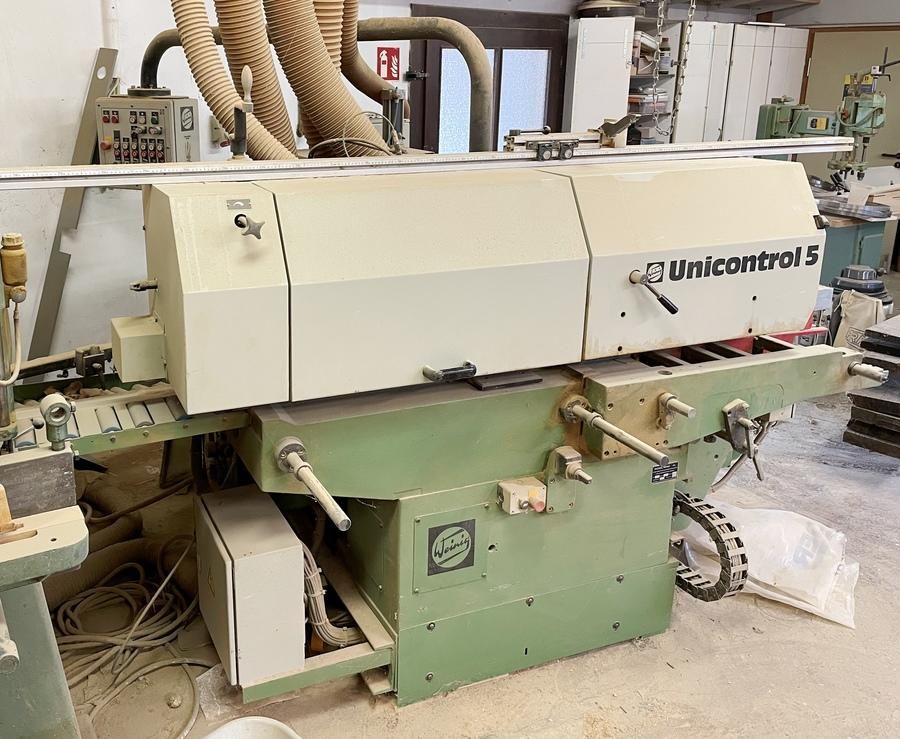

Weinig Unicontrol 5 Window production line

Arrangement of the units:
- cross-cut saw, 3 kW, horizontally pneumatically cycled against 4-fold turret
- one-sided tenoning and slotting spindle for 3 tools, stroke 2 x 100 mm, spindle diameter 50 mm, tool clamping length 300 mm, maximum tool diameter 360 mm, 11 kW
- Right-hand profile spindle, 3 tools, stroke 2 x 100 mm, spindle diameter 50 mm, tool clamping length 300 mm, maximum tool diameter 232 mm, 11 kW
- Right-hand sawing and grooving spindle, as glazing bead saw or grooving spindle, diameter 40 mm, 2.2 kW, clamping length 13 mm
- Fitting milling unit on the right, for milling the fitting groove or for grooving in the longitudinal profile, diameter 40 mm, 2.2 kW, clamping height 125 mm

Tenoning slotted spindle and profiling spindle suitable for holding several tools on top of each other, with pneumatic spindle movement
Slotting table with motorized table movement, feed rate 6 m/min

Machining width 30 - 220 mm
Machining height 30 - 100 mm
Workpiece length 245 - 2600 mm

Double parts package: slotting table with double workpiece clamping / after slotting,
the parts are automatically separated and transferred for longitudinal profiling
Return roller conveyor with automatic ejection and pull-out rollers
Length stop can be swiveled +/- 60° in both directions, for the production of studio windows / Electronic angle display,
maximum wood width 200 mm, laser light on the cross-cut saw
