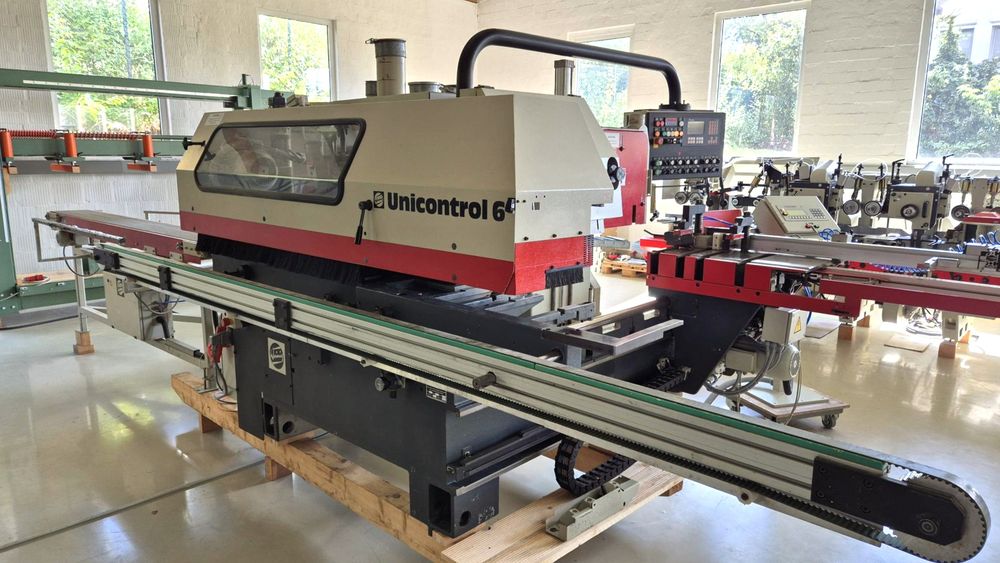

Weinig Unicontrol 6 / Window System

Pneumatically timed cross-cut saw (3 kW) with laser alignment light
Slotting spindle 50 x 320 mm for 4 tools, 80 mm each – 11 kW motor
Synchronous spindle 50 x 120 mm – 7.5 kW motor
Longitudinal profiling spindle 50 x 320 mm for 4 tools, 80 mm each – 11 kW motor
Pneumatically timed fitting spindle 40 x 160 mm – 3 kW motor
Horizontal saw/grooving spindle, top, pneumatically timed – 3 kW motor

Feed rate adjustable from 6-12 m/min – 1.1 kW motor
Screen control for 99 window types
Pneumatic support bar for mullion production Intermittently operated
Studio window system with digital angle display
Electronic length stop POSITIOMAT with digital length display up to 3,300 mm
Round milling device with long support rail and sliding belt
Transport system with return conveyor to the operator at working height
System complete with operating instructions, circuit diagrams, and spare parts lists

LEITZ tool set, IV-66 (including round-arch tool)
GOLD tool set, IV-78
GOLD tool set, IV-90
SYSTEM IS IN VERY GOOD TECHNICALLY AND OPTICALLY CONDITION
