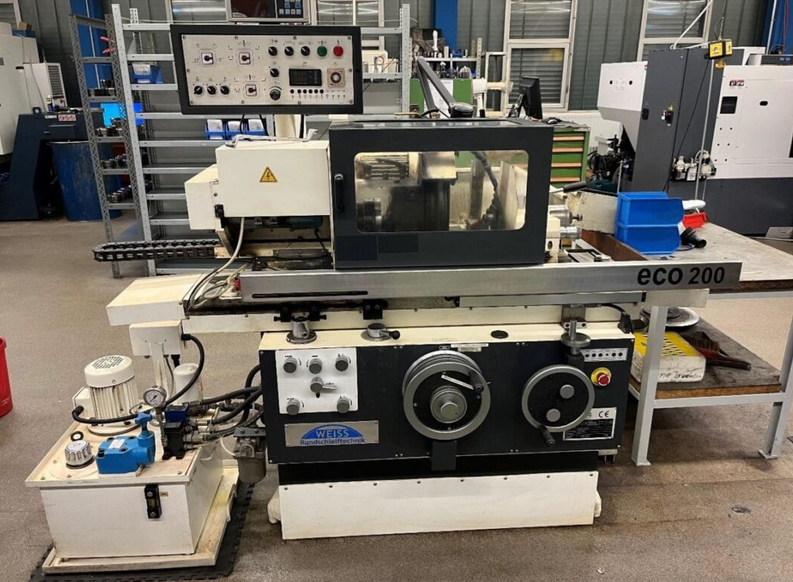

Weiss ECO200

Grinding Diameter: 100 mm
Grinding Length: 400 mm
Z-Axis Travel: 425 mm
Centre Height: 100 mm
Table Speed: 0.05 - 5.00 m/min
Workpiece Spindle Speed: 90 - 1000 rpm
Grinding Head Swivel: -2° to +30°
Tailstock Quill Taper: MT3
Grinding Wheel Speed: 1800 / 2000 rpm
Grinding Motor Power: 3.70 kW
Grinding Wheel Size: 350 x 50 x 127 mm
2-Axis FAGOR Digital Readout
Coolant Unit
Total Power: 7.00 kW
Machine Dimensions: 3.00 x 2.50 x 2.20 m
Weight: 2.50 ton
