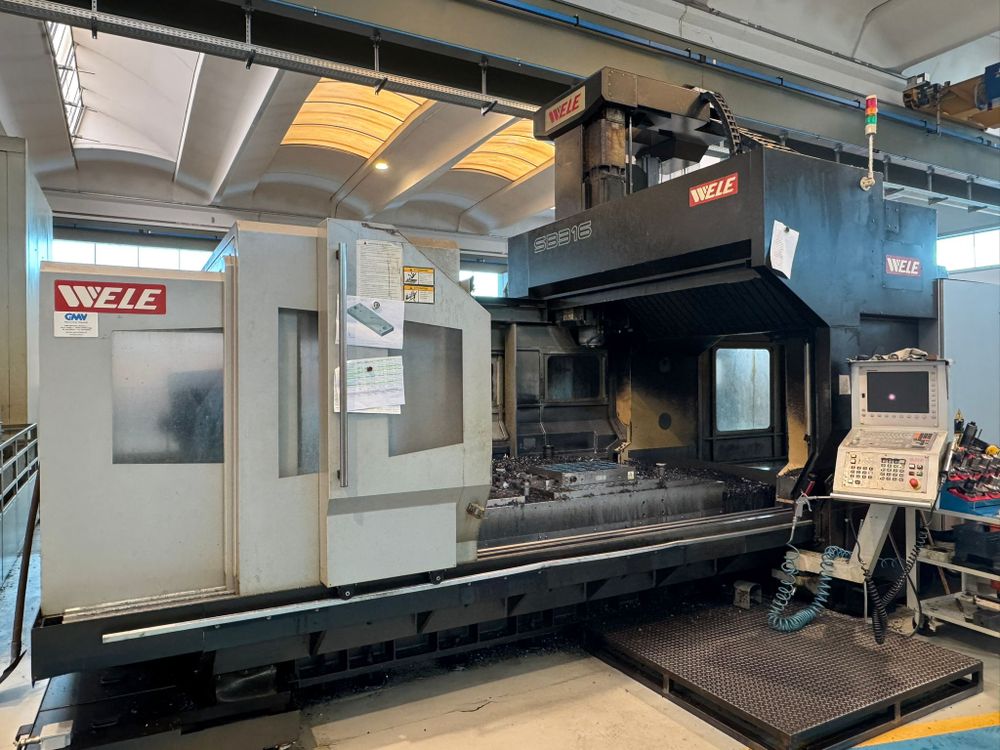

Wele SB-316 3 Axis

X-axis travel 3060 mm
Y-axis travel 1600 mm
Z-axis travel 800 mm

Table size 3000 x 1500 mm
Max table load 10000 kg
Distance between columns 1700 mm
Distance table surface to spindle nose 400–1200 mm

Spindle taper BT50 ISO
Spindle speed 10–6000 rpm
Spindle motor power 22–26 kW

Rapid traverse X/Y/Z 24000 / 24000 / 10000 mm/min

Tool magazine capacity 32 tools
Positioning accuracy ±0.005 mm
Repeatability ±0.003 mm

200 mm column extension
Rigid tapping
Helical interpolation
Gear-driven spindle head
20-bar high-pressure coolant system
Full enclosure
XYZ linear scales
Belt-type chip conveyor
Through-spindle air system

Machine dimensions 8310 × 3790 × 4350 mm
Machine weight 27000 kg
