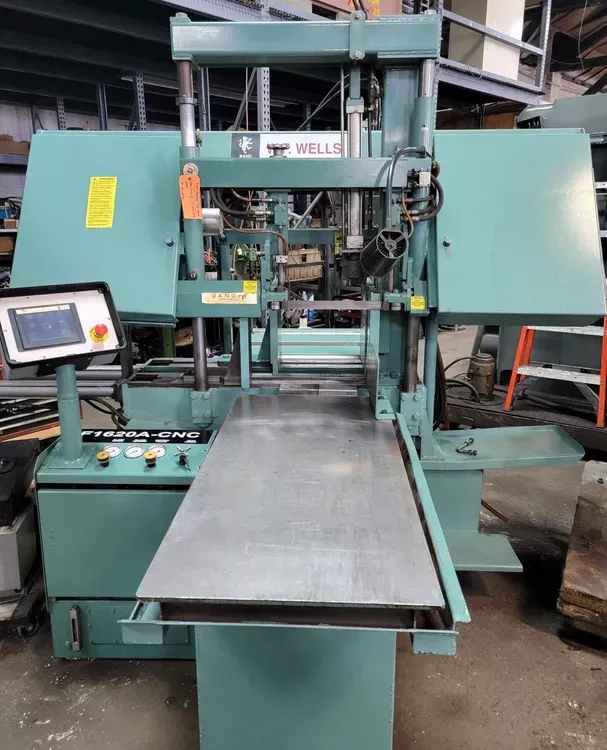

Wellsaw F-1620A-CNC AUTOMATIC CNC CONTROL

Cutting capacity, rectangular at 90°: 16" H x 20" W
Cutting capacity, round: 16" diameter
Weight capacity: 5,000 lbs
Blade speed: 60–500 SFPM
Blade size: 1¼" x .042" x 15'
Blade guide: roller guides with carbide inserts
Vise: hydraulic, full stroke
Sawing force: 0–1,000 lbs
Bandwheel size: 20"
Blade tension: hydraulic
Blade drive: 7½ HP
Coolant capacity: 20 gallons
Hydraulic capacity: 20 gallons
Hydraulic drive: 2 HP motor
Work height: 35"
Barfeed projection: 0–25", CNC controlled
Shuttle indexes: unlimited
Projection accuracy: ±.002"
Remnant end: 4"
Control: CNC programmable controller with color touch screen
Automatic kerf compensation
Blade break/stall switch
Machine weight: 4,000 lbs
Machine dimensions: 104" x 101" x 88"
Power supply: wired for 460/60/3

Hydraulic hold-down, saw & barfeed
Hydraulic chip auger
Discharge table: 20" W x 48" L
Work light (wired in)
One non-powered conveyor: 21" W x 5' L
One non-powered conveyor: 21" W x 10' L
