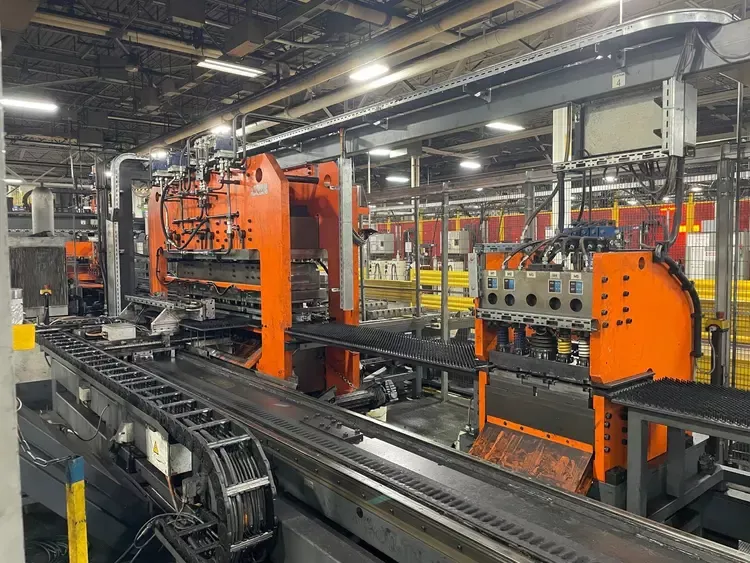

Wemo PBL-2550 PANEL BENDER

Type of machine folding machines
Basic material steel tensile strength 340–980 N/mm²
Material type GMW3399M-ST-S-CR980t/700y-MP-LCE-EG60G60G / UNCOATED + GMW3032-ST-S-240LA-HD60G60G-U
Material thickness 0.7–3.0 mm
Coil width 150–450 mm
Coil width tolerance 0/+2 mm
Sheet width 150–450 mm
Sheet length 1200–2000 mm
Sheet tolerance ±0.2 mm
Pallet weight maximum 3000 kg
Bended product width 64–430 mm
Bended product length 1200–2000 mm
Product height 150 mm
Bending radius 4–7 mm
Product tolerance +0.2/–0.5 mm
Burr side both sides
Total length 22.5 m
Maximum width 14.7 m
Working height 1000 mm
Maximum height 3.3 m
Connection current 480 V / 60 Hz
Capacity 134 kVA
Hydraulic operating pressure 240 bar
Pneumatic operating pressure 6 bar

Uncoiler
Feeder
Former
Punch
Unloading equipment
Unloading roller conveyor
Controls
Feed-in station
Punching station
Rotating station
Longitudinal bending station
Take-off station
Transfer station
XY transfer station
Drawings and manuals available
