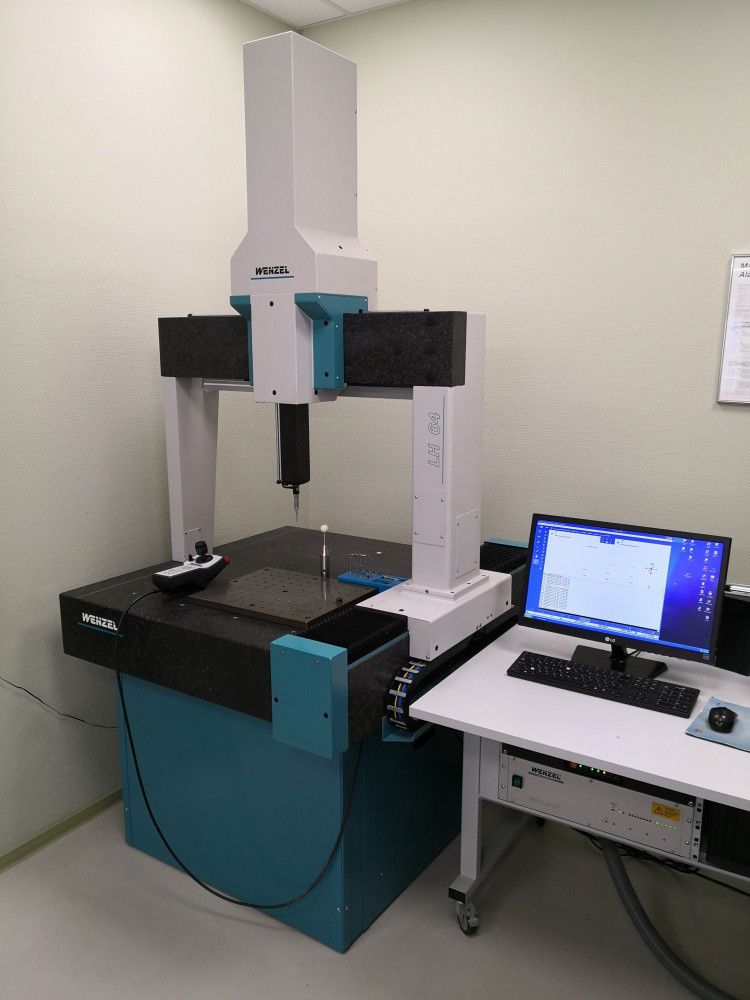

Wenzel LH 64

measuring range
- X-Axis: 600 mm
- Y-Axis: 800 mm
- Z-Axis: 400 mm

measuring uncertainty
- MPEE [μm] 3,5 + L/300
- MPEP [μm] 3,5
- MPETHP** [μm]
- MPETHP** [sec]
- DIN EN ISO 10360-2
- temperature range 18°C - 22°C
- temperature gradient 1 K/h, 1 K/m, 2 K/d

EQUIPMENT
- control system WPC2040/3, HT400
- probe system PH6 | TP200 | 1 x SF Modul
- software WM | Quartis X3 GEO
- accessories PC-System with Windows 10
- miscellaneous 18-piece stylus set M2
