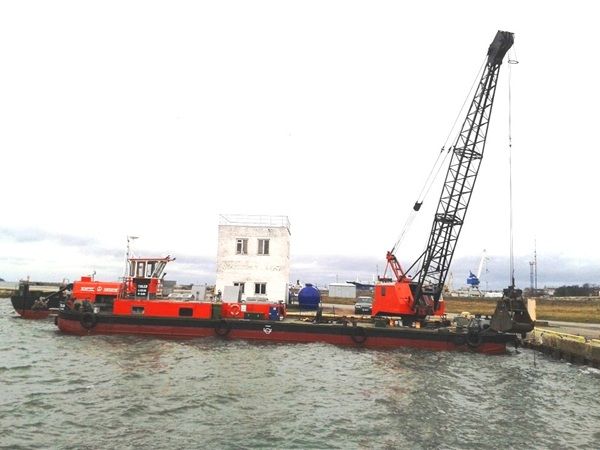

WESERHUTTE W120

WESERHUTTE W120
Year: 1937 (last upgraded 2023)

Flag: Estonia
Port of registry: Tallinn
Class: Estonian Maritime Administration
Trading region: Domestic trade up to 20 miles from place of refuge
GT: 114
NT: 34
Seaworthiness certificate valid: 06.11.2028
Length overall (LOA): 29.29 m
Beam overall (BOA): 8.08 m
Depth: 1.75 m
Draft: 1.31 m
Main engine: Deutz F 8 L 413, 111 kW
Propulsion: Schotel-Navigator, Ruderpropeller SRP 100/103
Auxiliary engine: Herkules NSN2815-00-501-7001
Generator: 380V, 50Hz, 30 kW
Speed: 5.5 knots
Bunker capacity: 3 x 3 m³
Fuel consumption in port: 4 l/h
Fuel consumption at sea: 25 l/h
Fuel autonomy: 8 days
Bow anchors: 1 x 390 kg, 2 x 27 m (16 mm)
Aft anchors: 1 x 390 kg, 2 x 27 m (16 mm)
Winches: 4 x 4 kW, each with steel rope ø19 mm
Crane model: W120
Crane motor: Deutz F 6L413
Lift capacity: 20 Mt (SWL)
Crane test due: 05.2027
Fuel consumption (crane): 15 l/h
Boom length: 17.5 m
Max working angle of boom: 75°
Grab capacity: 1.5 m³
Outreach min (outside): 2.1 m – 17.5 Mt
Outreach max (outside): 13.5 m – 3.3 Mt
Minimum outreach: 5.5 m
Max height to hook (freeboard -1.0 m): 16 m
Max height to grab (freeboard -1.0 m): 14 m
Max dredging draft (hook): 15 m
Max dredging draft (grab): 18 m
Hook lifting speed: 15 m/min
Grab lifting speed: 32 m/min
Boom outreach change: 15 m/min
Crane turnaround: 1 turn = 20 sec
Place and time of delivery: prompt, Tallinn
