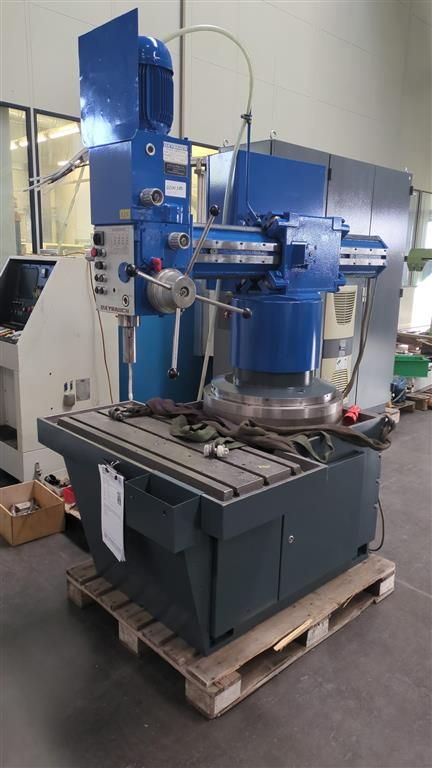

Weyrauch SW 32 G 2000 U/min

Rapid Radial Drilling Machine
WEYRAUCH SW 32 G
year of manufacture: 1976


bore capacity in steel (diameter): 32 mm
arm length: ./x. . 400 / 1250 mm
workpiece height max.: mm
drill head horizontal traverse: 400 mm
drilling head vertical adjustable: 400 mm
bore spindle stroke: 150 mm
spindle taper MT: 4
grinding spindle speed: 100 - 2000 U/min
Arm length: Spindel: min./max: ca. 400 / 1250 mm
cantilever adjustment vertical: 850 mm
cantilever adjustment horizontal: 400 mm
arm: Länge: 1360
arm horizontal: schwenkbar mm/min
number of revolutions per minute of drill spindle:: 100...2.000 / 12 step U/min.
feed steps: 0,1 / 0,2 / 0,3 - 12 step mm/U
Table dimensions: 1200 x 510 mm
distance table - lower edge spindle: min./max.: 350 / 800 mm
total power requirement: 2,4 kW
weight of the machine ca.: 1,8 t
dimension machine approx.LxWxH: 1,3 x 1,3 x 2,25 m

additional information
Equipment:
2x foot rail
Attachment option for a vertical table
Accessories:
Various clamping devices
