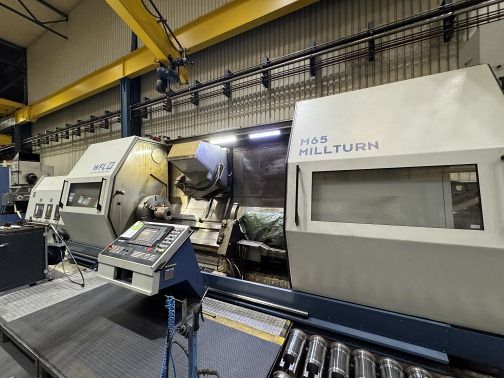

WFL Control Siemens 840 D 2600 rpm MILLTURN M65-3000 2 Axis

Ref : 2738649-3-MT

Condition : Used

Manufacturer : WFL

Controller : Control Siemens 840 D

Spindle Speed : 2600 rpm

Model : MILLTURN M65-3000

Nb Of Axis : 2 Axis

Year(s) : 2006

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Travel X axis: 720 mm
Travel Z axis: 3150 mm
Rapid travel longitudinal/face: 20/15 m/min
Control Siemens 840 D
Turning diameter: 680–830 mm
Turning length: 3000 mm
Drive of main spindle: 60 kW
Max. torque on spindle: 2748/687 Nm
Main spindle speeds: 8–2600 rpm
Spindle head DIN 55026 / A15
Drive power drilling and milling device: 30 kW
Max. torque on milling spindle: 315 Nm
Tool taper: Capto C8
Tool magazine: 108 positions
Tailstock quill taper: MT 6
Tailstock quill diameter: 180 mm
Tailstock travel: 200 mm
Feed power in X+Z axis: 2000/2000 daN
Weight: 30 t
Dimensions: 12.5 × 5.5 × 3.5 m
