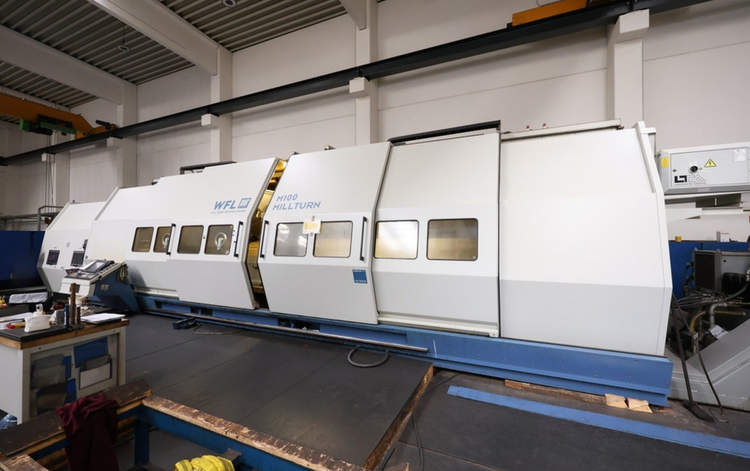

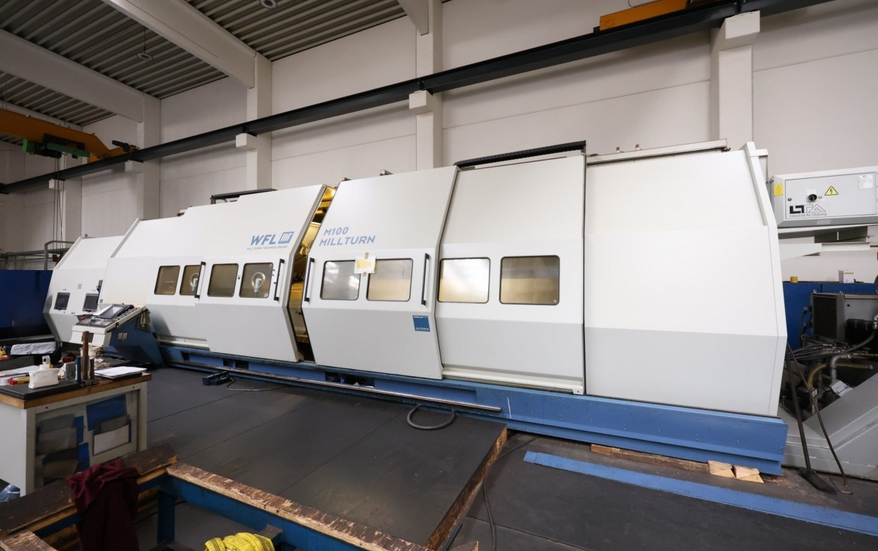

WFL Siemens Sinumerik 840D 1600 rpm M100 MILLTURN / 6500 2 Axis

longitudinal travel (Z-axis): 6870 mm
cross travel (X-axis): 920 mm
travel (Y-axis): 500 mm [-200/+300 mm]
centre distance: 6500 mm
tool taper: CAPTO C8
max workpiece weight: 7352 kg
main spindle max speed: 1600 rpm
main spindle max torque: 4472 Nm
C-axis max speed: 20 rpm
C-axis max torque: 3000 Nm
C-axis holding torque: 6000 Nm
spindle diameter: 320 mm
spindle bore: 245 mm
quill diameter: 180 mm
quill stroke: 200 mm
quill force: 5400–40000 N
milling spindle power: 30 kW
milling spindle max speed: 6000 rpm
milling spindle max torque: 315 Nm
machine weight: 145 t
machine dimensions: 47 m × 11 m × 3.2 m × 3.5 m

internal coolant supply
chip conveyor
paper belt filter system
boring bar with device
measuring equipment
clamping sleeves
tool holders
spare parts
technical documentation
