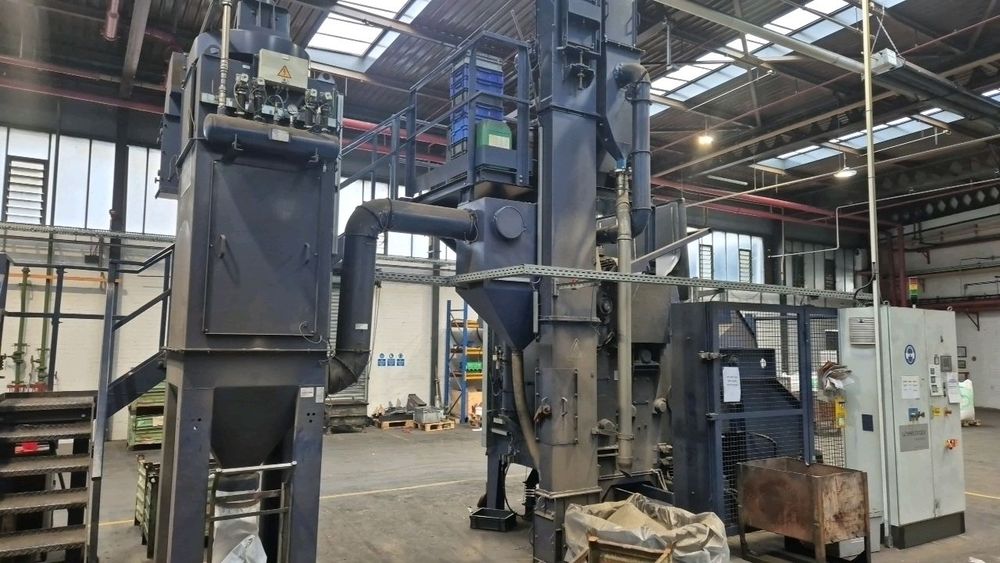

Wheelabrator MB 300G
EUROPE (Western and Northern)
WHEELABRATOR MB 300G
Year: 2017
Trough belt width: 1200 mm
Trough belt diameter: 900 mm
Capacity: approximately 0.31 m³
Maximum trough load: 800 kg
Maximum individual item weight: approximately 5 kg
Blasting system: turbine wheel blasting
Maximum workpiece temperature: 80°C
Maximum batches per day: 5
Turbine type: 15.3-EM11.0
Turbine diameter: 380 mm
Blade width: 65 mm
Number of blades per turbine: 8
Installed driving power per turbine: 11.0 kW
Abrasive pre-acceleration: mechanical, central via impeller
Abrasive throw-off speed: approximately 75.0 m/s, variably adjustable
Filter ventilator drive: 3.00 kW
Bucket elevator drive: 2.20 kW with brake
Transverse worm conveyor drive: 2.20 kW
Trough belt drive: 1.50 kW
Lifting door drive: 0.18 kW
Turbine drive: 11.0 kW
Vibration conveyor drives: 2 x 0.3 kW (total 0.60 kW)
Hydraulic unit drive: 4.00 kW
First abrasive filling: 1500 kg
Shot blast machine weight: approximately 3700 kg
Filter unit weight: approximately 300 kg
Switch cabinet weight: approximately 90 kg
Loader weight: approximately 520 kg
Vibration conveyor weight: approximately 320 kg
Maximum load capacity: 300 dm³
Maximum advised load: 800 kg
Maximum workpiece weight: 5 kg
Maximum workpiece diagonal: 450 mm
Power per blast wheel: 11/15 kW (2 x 11 kW)
