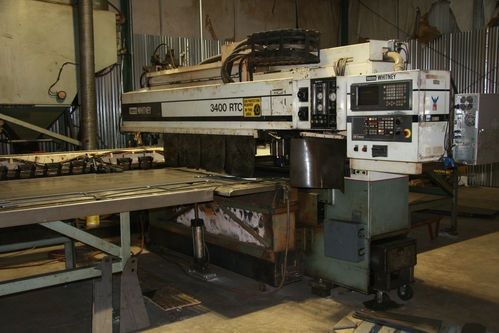

Whitney 3400 RTC 40 Ton

Punch Capacity 40 Ton
Maximum Sheet Size 100" x 48"
Maximum Positioning Area X: 100"
Maximum Positioning Area Y: 48"
Maximum Sheet Thickness Punching: .500"
Maximum Sheet Thickness Plasma Cutting: .500"
Maximum Workpiece Weight 650 Lbs.
Maximum Hole Diameter Punching 5" in .250" Material
Maximum Hole Diameter Punching 1" in .500" Material
Maximum Hit Rate 165 HPM (on 1" Centers in 10 Ga. Material)
Nibbling Speed 250 HPM
Plasma Cutting Speed .060" Thick: 250 IPM
Plasma Cutting Speed .250" Thick: 135 IPM
Plasma Cutting Speed .375" Thick: 100 IPM
Plasma Cutting Speed .500" Thick: 80 IPM
Control Fanuc 16P
Hyperterm HT200 Plasma Unit (200 Amp - Maximum)
Truecut High Speed Plasma Cutting System
Hydraulic Punching
Hydraulic Work Clamps
Hydraulic Power Unit
AC Main (Pump) Drive Motor
Pendant Mounted Control
Large Quantity of Dies
