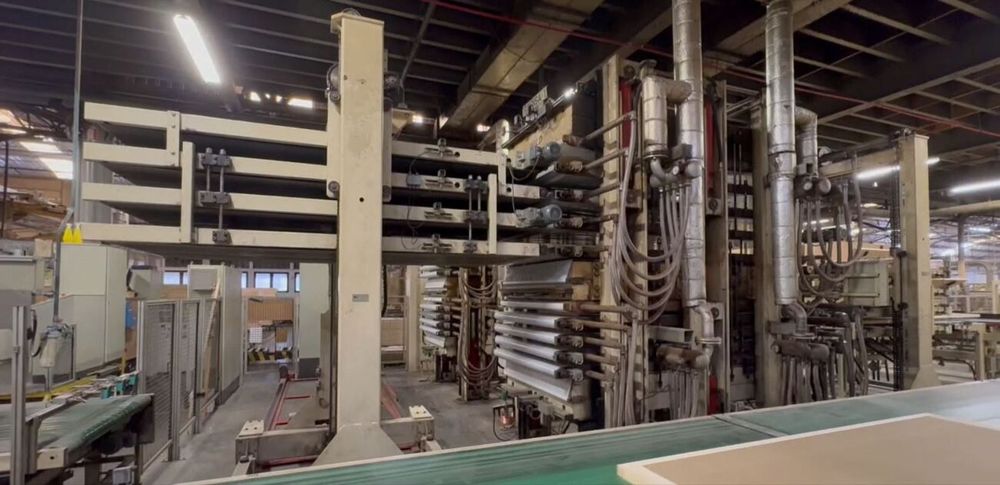

Wild Door production line

For door dimensions:
- Lengths: 1,800 - 2,300 mm
- Widths: 500 - 1,300 mm
- Thicknesses: 35 / 40 / 44 mm

Consisting of the following areas:
1. endless door panel gluing with frame laying station
2. press line with hard fiberboard loading station

1. area consisting of
- Portal feeding
- Angle transfer with rip and cross cut saw
- Feeding and supply of longitudinal and cross frame parts from magazines
- Longitudinal cross-cut station for the longitudinal frame parts
- Connecting station for the frame parts with the door leaf core. With clamping devices
- Conveyor belt angle transfer with shuttle transfer of the door leaf cores to the glued hardboard panels

2. area consisting of:
- Feeding of the hardboard panels
- Brush cleaning machine
- Hardener application machine from below
- Glue application machine from below
- Disk roller conveyor
- Angle transfer for the lower hard fiber board
- Vacuum turning device for the upper hard fiberboard
- Automatic loading station for hardboard panels and door leaf cores
- 2 door presses with 2 x 4 pressing stations each, set up parallel to each other
- Both presses are loaded at the infeed with 1 shuttle loading basket
- Both presses are unloaded at the outfeed with 1 shuttle unloading basket
- Angular transfer to the infeed into a hedgehog buffer
- Angular transfer at the outlet of the hedgehog buffer and feeding for stacking
- One-sided vacuum destacking with protective plate place
