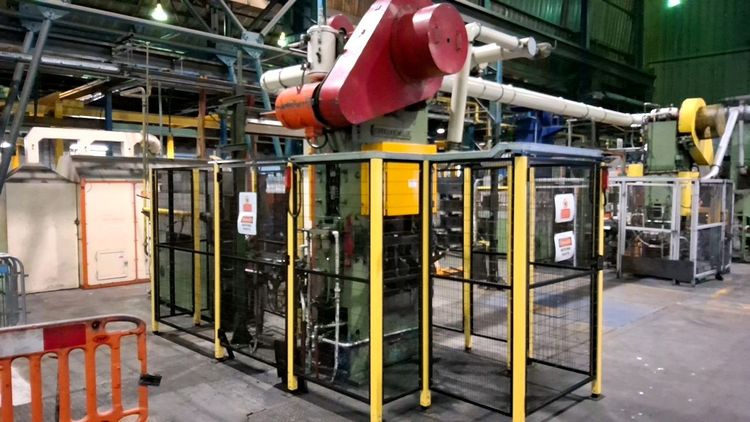

Wilkins Mitchell B24HB-1-8 100 Ton

Ref : 2726636-3-MT
Condition : Used
Manufacturer : Wilkins Mitchell
Model : B24HB-1-8
Pressure : 100 Ton
Year(s) : -
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

WILKINS & MITCHELL B24HB-1-8

Capacity: 100 Ton
Stroke: 200 mm
Speed: 60 strokes per minute
Manual adjustment: 75 mm
Shut height min/max: 325 mm / 400 mm
Slide left to right: 500 mm
Slide front to back: 425 mm
Bolster left to right: 600 mm
Bolster front to back: 625 mm
Bolster thickness: 145 mm
Working height: 755 mm
Cushion capacity: 10 Ton
Maximum cushion stroke: 100 mm
Platen left to right: 575 mm
Platen front to back: 425 mm
Four-slide horizontal split die sub-press
Number of stations: 4
Die space: 150 x 150 x 114 mm
Maximum punch diameter: 30 mm
Maximum punch stroke: 63 mm
Weight approx.: 1100 kg
