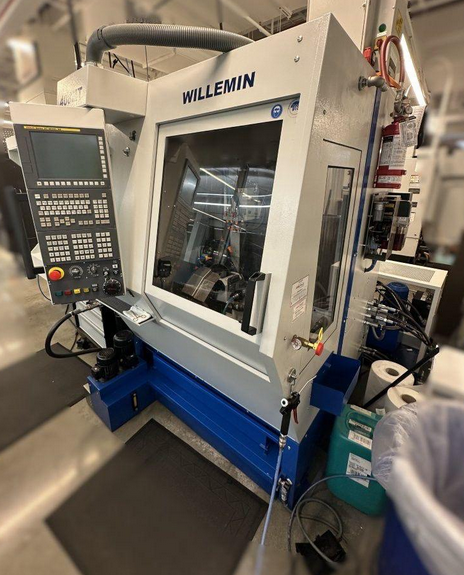

Willemin Macodel FANUC 31iB5-iHMI PRO 30000 rpm stepless 408 MT 5 Axis

X-axis travel 250 mm
Y-axis travel 200 mm
Z-axis travel 310 mm
Simultaneous axes 5
A axis 360°
A axis resolution 0.001°
B axis -45° / +115°
B axis resolution 0.0001°
Control FANUC 31iB5-iHMI PRO
Tool measuring device BLUM Z-MT
Automatic non-contact measuring device Renishaw OMP 400 + AXISET HD-TB
Coolant system
Bar diameter 32 mm
Spindle nose HSK E-40
Spindle speed 500 – 30000 rpm stepless
Tool magazine capacity 72
Maximum tool diameter 80 mm
Maximum tool length 95 mm
Maximum tool weight 1 kg
Tool change time 0.8 s
Voltage 400 V 50 Hz 3-phase
Total power required 16 kVA
Machine weight approx. 2100 kg
Machine dimensions 1840 x 2450 x 1385 mm
Bar loader LNS Super Hydrobar
