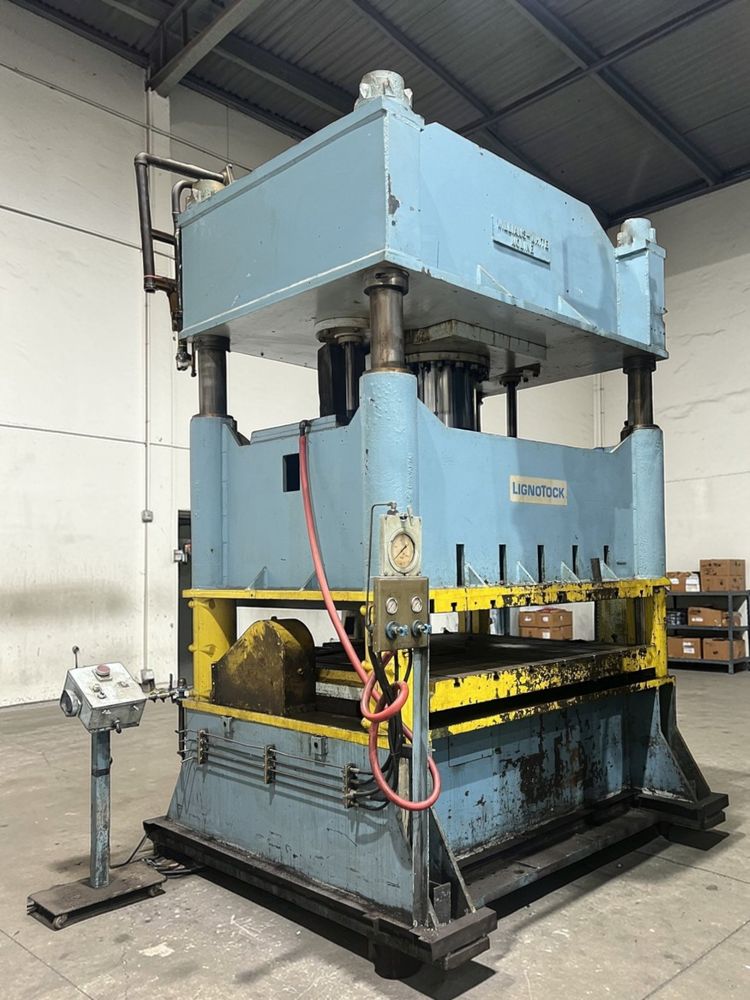

Williams & White 4 COLUMN PRESS 400 ton

Press force: 400 ton
Hydraulic pressure rating: 2600 psi
Maximum stroke: approx. 15 in
Daylight to bed: 25 – 40 in
Overall bed and ram area: 106 in x 72 in
Distance between posts: 89 in x 54 in
Usable bed area: 106 in x 54 in
Usable bed area: 89 in x 72 in
Bed bolster plate: 84 in x 72 in x 5.5 in thick T-slotted
Ram bolster plate: 84 in x 72 in x 3 in thick T-slotted
Main cylinder bore: 19 in diameter
Post diameter: 5.5 in
Electric motor power: 25 HP
Electric motor speed: 1760 rpm
Electrical: 230 / 460 V / 3 phase / 60 Hz
Overall dimensions: 120 in x 72 in x 192 in height
Machine weight: approx. 75000 lbs

Features / Equipment
4-post hydraulic press
Allen-Bradley relay logic controller
Hydraulic system with Vickers vane pump model 3520V30A5
Two hydraulic cushions in bed
Approx. 60 ton cushion capacity
Cushion stroke: 12 in
Pressure pads size: 15.5 in x 45 in
Two pull-back cylinders
Floor standing base
No pit required
