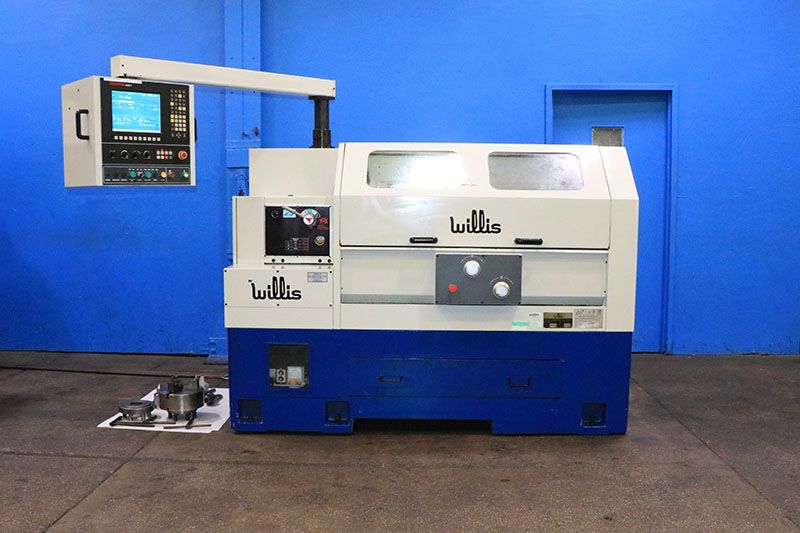

Willis Anilam 4200 CNC 3500 RPM DY350X1000 CNC Lathe w/ Anilam 4200 Control 2 Axis

Swing Over Bed: 13.78"
Swing Over Cross Slide: 6.69"
Max Distance Between Centers: 40"
Cross Slide Travel (X): 8"
Longitudinal Travel (Z): 29.5"
Spindle Taper, Camlock, Size: D1-6
Spindle Speed Range (Infinitely Variable): 25 - 3500 RPM
Spindle Bore: 2-1/8"
Tailstock Quill Travel: 5"
Tailstock Quill Diameter: 2"
Tailstock Quill Taper Hole: #4 MT
Approximate Weight: 3,650 LBS
Approximate Dimensions: 82" x 46" x 67"

Control: Anilam 4200 CNC
Two Axis Digital Readout for Manual Operation
Servo Motors & Ground Ballscrews
AC Spindle Drive
Electronic Handwheels for X & Z Manual Traverse
Jogstick for Rapid Travel
10" Pratt Burnerd 3-Jaw Chuck
12-1/4" Pratt Burnerd 4-Jaw Chuck
Dorian NVIT8-75 8-Position Manual Indexable Turret
Hardinge-Sjorgen 16C Collet Chuck
Roller Type Steady Rest
5/8" Capacity Jacobs Drill Chuck for Tailstock
Live & Dead Center for Tailstock
Center Sleeve & Center for Headstock
Hardened & Ground Bed Ways
Automatic Lubrication System
Coolant System
Enclosure
7.5 HP Spindle Drive Motor
