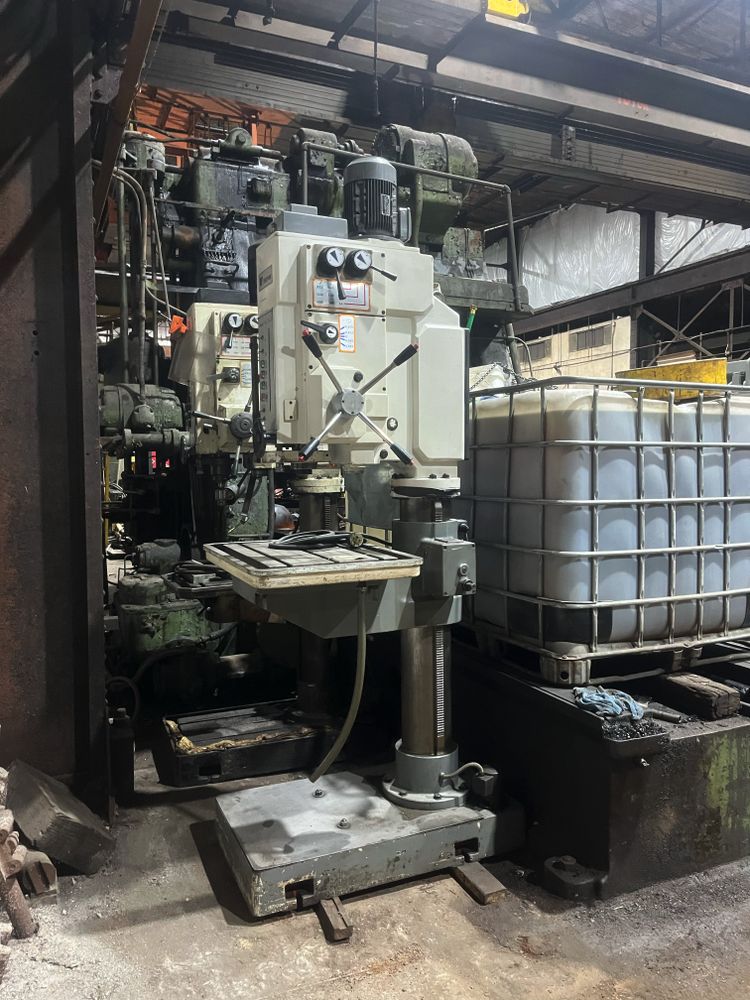

Wilton 2445V DIRECT DRIVE GEAR HEAD DRILL PRESS 1338 RPM

Swing Diameter: 30"
Drilling Capacity in Steel: 2"
Tapping Capacity in Steel: 1.75"
Spindle Travel: 10"
Spindle Nose to Table Max: 30.5"
Spindle Nose to Table Min: 2.75"
Spindle Nose to Base Max: 50"
Spindle Center to Column: 15"
Table Working Surface: 23.5" x 33.5"
Table Weight Capacity: 575 lbs
Spindle Taper: #4 MT
Quill Diameter: 3.465"
Spindle Speed Range: 55 - 1338 RPM
Number of Spindle Speeds: 9
Spindle Feed Range: .003 - .013 IPR
Number of Spindle Feeds: 4
Spindle Motor: 4 HP
Power Feed Gear Box with Electro-Magnetic Clutch
Direct Drive Round Column
Automatic Tapping Control
Power Down Feed to Spindle
Hand Wheel for Fine Feed
Coolant System
Floor Space: 4'5" x 2'6"
Machine Height: 9'
Machine Weight: 2,450 lbs
