Windmoller & Holscher 3 layers Blown film plant

Number of layers 3
Overhaul/renovation several upgrades such as thickness gauge and control (year 2016),
dosing system, coronas and web guides
Film structure ABC
Material LDPE,LLDPE, MDPE
Film Width 1300
Output (Kg/h) 200

Extruder 1 Layer ref: A
Screw diam 1 50

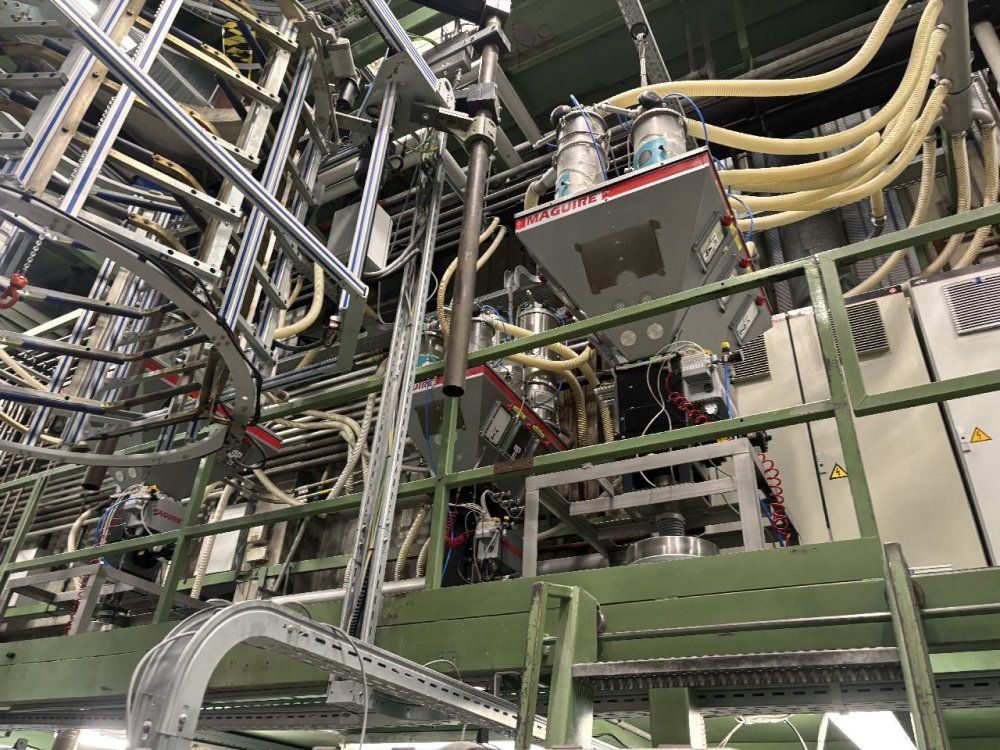

Description 1 Maguire 6 components dosing system

Extruder 2 Layer ref: B
Screw diam 2 90
Description 2 Maguire 6 components dosing system

Extruder 3 Layer ref: C
Screw diam 3 50
Description 3 Maguire 6 components dosing system

Head description IBC with ultrasound sensors, automatic thickness profile control
Optifil P2 year 2016, complete with monitor
Die diam (mm) 160
Thickness controll system Kundig thickness gauge and
automatic thickness profile control Optifil form W&H year 2016
Bubble cage motorises with silicon rollers no marking
Take off unit rotating
Corona treatment Double side corona Vetaphone year 2013
Web guide BST with self entering sensor
Rewinder Type Double back to back
Rewinder description Afex

In a blown film extruder PE granulates (or other polymer)
are melted in an extruder and pushed through a circular die extruding
a tube of molten polymer.
Tube is then inflated to multiples of its initial diameter and cooled to
form a thin film. Bobble is later collapsed and re-winded.
