Windmoller & Holscher AM 2180 and AD 2360/22

Bottomer with Palletizer Arcomat

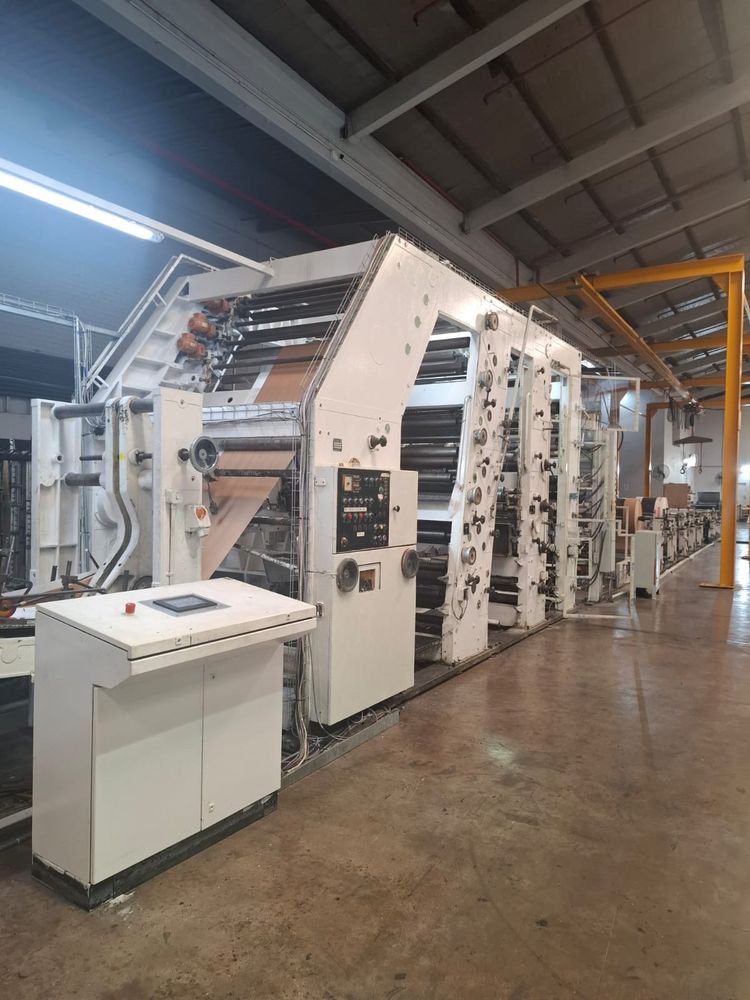

W&H Tuber AM 2180
Brand: Windmoller & Holscher
Model: AM 2180
Year: 1982
5 plies
Stepped end and flush cut
2 color in line printer
Min – max tube width: 300 – 700 mm
Min – max tube length (flush cut): 450 – 1650 mm
Min – max tube length (stepped end): 450 – 1350 mm
Side fold depth: 130 mm
Max paper roll width: 1430 mm
Max paper roll diameter: 1300 mm
Max mechanical speed: 400 pcs/min (concrete tuber speed is less)
With photocell to work pre-printed reels
With PIV gearbox
5 unwinding stations (4 x paper and 1 x free film)
Pneumatic, hydraulic controller, make FIFE (without the necessary attachment)
Longitudinal control of the outer paper web
Longitudinal gluing with grooved counter rollers
Bundle forming station with drop table
Roll changing device, manually operated
Cutting control system
1 set of needle rollers mounted in front of the loop feed
Stripper plates on the main draft
Glue pumps for longitudinal and transverse gluing
Rated power approximately: 51 kw
Number of tubes per package: approximately 60
Max package height: 200 mm
No TRANSYSTEM between tuber and bottomer

W&H Bottomer AD 2360/22
Brand: Windmoller & Holscher
Model: AD 2360/22
Year: 1981
Printing on bottom patch: 1 colors on each side
Min – max tube width: 350 – 700 mm
Min – max sack length (flush cut and stepped end 435 – 1370 mm)
Min – max bottom width (flush cut): 75 -220 mm
Min – max bottom width (stepped end sacks): 75 -210 mm
Min – max tube length with minimum bottom width: 560 – 1500 mm
Min – max tube length with maximum bottom width: 870 – 1640 mm
Min max bottom centre distance: 360 – 1300 mm
Dimensions of opened up bottom: 200 – 480 mm
Min – max valve length without fold: 90 – 240 mm
Min – max valve length with fold: 130 – 290 mm
Length of valve fold: 10 -60 mm
Prefabricated tubular valve: 90 – 180 mm
Cut off length selectable in steps of 3,3 mm
Roll width: 110 – 460 mm
Max roll diameter: 1300 mm
Special design for poly valve:
Staggering device: 45 or 62 mm
Valve length: 120 – 190 mm
Max diameter of poly roll: 1300 mm
Fringed valve:
Distance between cuts: 5, 10 and 20 mm
Length of cut: max. half the valve length
With Elevator and Palletizer Arcomat
Visible in operation
Delivery time: August 2026
