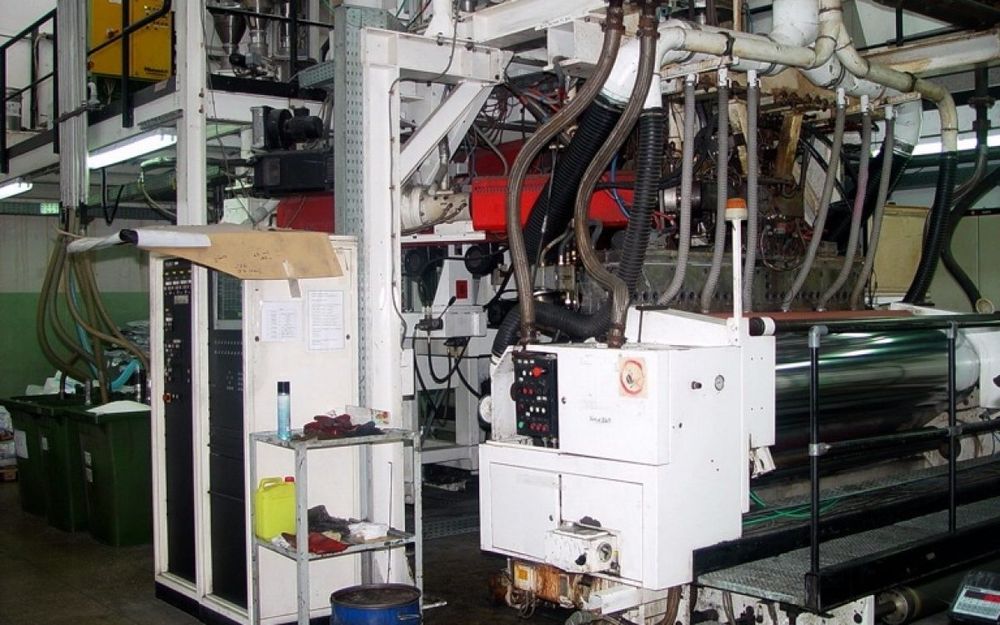

Windmoller & Holscher Filmex

Coex Cast Film Extruder
Type: Cast COEX
Extrudable Materials: CPP, Stretch, Barrier Films, PA, PE, EVOH and combinations
Layer: 5
Barrels: 120mm/45mm/90mm/45mm/90mm
Layer Structure: A/B/C/D/E
Film Thickness: 20μm-180μm
Capacity: 300 Kg/s (Max.)
Head Opening: 2100 mm
Film Width: 1850mm
Thickness Control: FAG Radiometrie (2009)
Extrusion Head: Automatic / 2008 + 8 Feed Manifold (Feedblock)
Corona: AFS Double Side Corona
Edge Control: Available
Winding: Filmex Brand
Winding Diameter: 800mm/1000mm (Max.)
Bobbin Diameter: 76mm/152mm

Other Features:
Cooling roller available
The extruder is designed for PA but can work with the materials written above.
