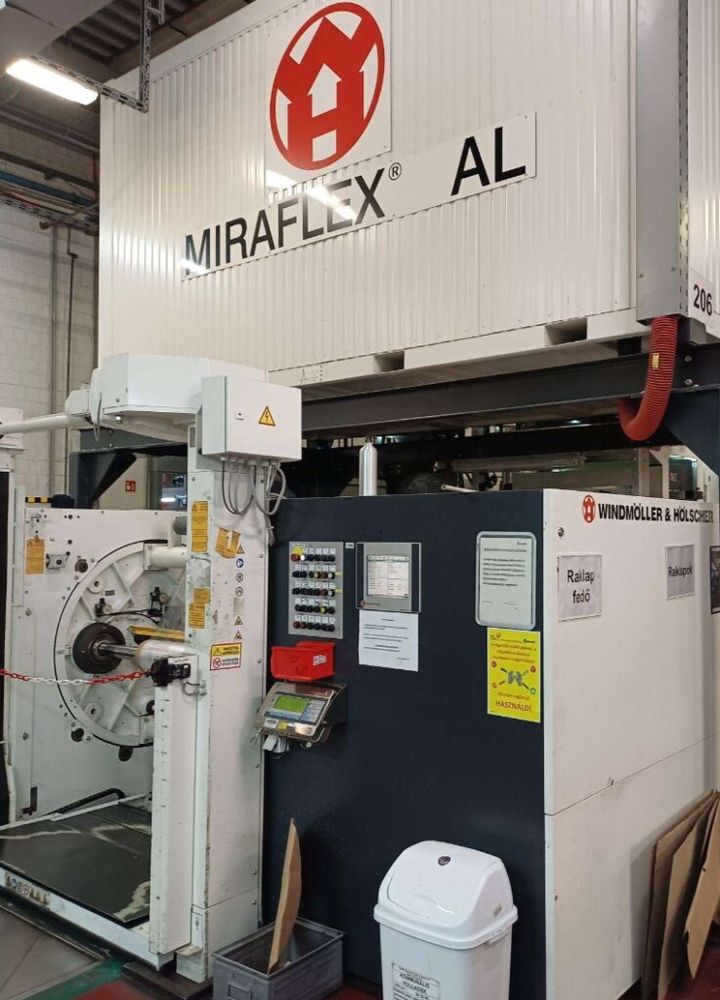

Windmoller & Holscher Miraflex AL 8 8 1,270 mm

Condition : Good
Machine Type: Central Impression (CI) Flexographic Printing Press
Gearless Drive: Yes
Number of Colors: 8
Ink Type: Solvent-Based
Machine Status: In Production

Technical Specifications:
Maximum Web Width: 1,320 mm
Maximum Printing Width: 1,270 mm
Printing Repeat: 370 – 1,130 mm
Maximum Mechanical Speed: 400 m/min

Suitable Materials:
The machine is suitable for printing on: PE, OPP, CPP, PA, PET, Paper

Material Thickness:
Minimum: 12 micron
Maximum: 200 micron

Unwinder:
Automatic Turret Unwind
Shafted & Shaftless Operation
Maximum Reel Diameter: 1,000 mm

Rewinder:
Automatic Turret Rewind
Shafted & Shaftless Operation
Maximum Reel Diameter: 1,000 mm
2 Air Shafts (Ø150 mm)

Drying System:
Gas Drying System

Machine Equipment:
Automatic Web Guide
Video Inspection Camera
AFS Single Side 6 kW Corona Treater
Automatic Cleaning System
INKSPEC Viscosity Control (3 Solvents)
Mounting Device Included

Included Accessories:
34 Anilox Rollers
Approximately 400 Printing Sleeves
24 Intermediate Sleeves (3 Different Sizes)
Complete Set of Sleeves & Anilox Rollers
Basic Trolleys
High-Pressure CO2 System
Basic Spare Parts
Machine Manuals

Printing Tool Inventory:
Printing Sleeves:
Total Quantity: Approximately 400 pcs
Various Repeat Sizes Available

Anilox Rollers:
Total Quantity: 34 pcs
Multiple Screen Counts & Cell Volumes

Adapters: 480 mm, 590 mm, 710 mm (8 pcs of each size)
Doctor Blade Chambers: 14 pcs

Machine Highlights :
8-Color Gearless CI Flexographic Printing Press
Production Speed up to 400 m/min
Solvent-Based Printing
Automatic Turret Unwind & Rewind
Gas Drying System
AFS 6 kW Corona Treater
Automatic Cleaning System
Camera Inspection System
Large Package of Sleeves & Anilox Rollers Included
Available for Inspection in Production
