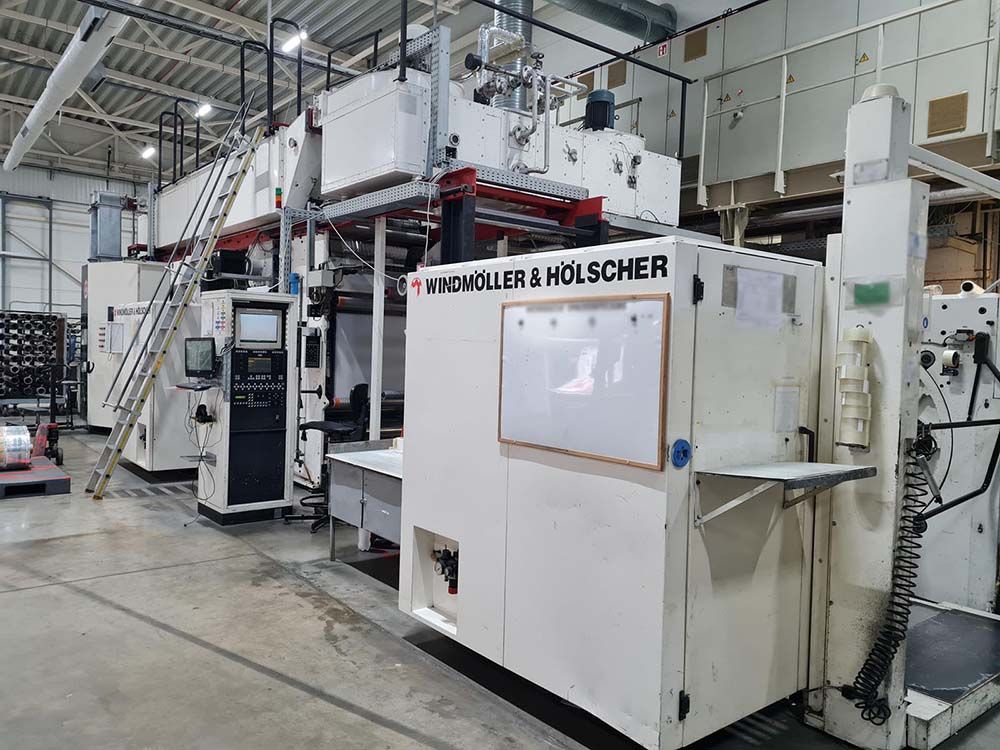

Windmoller & Holscher NOVOFLEX 8 1.000 mm

8 colour units
printing width : 1.000 mm
material width : 1.050 mm
printing lengths : 300- 760 mm

Materials
LDPE,PP,PA 20- 150 my
HDPE,OPP 12- 100 my
Laminates up to 150 my
Paper: 30- 120 g/m2

Essentially equipped with:
Non-Stop-unwind, max. roll D 1.000 mm, inner core D 76 mm
Roll lift-in device
Splicing unit
Web tension measure and adjustment unit
Web guide prior to printing, type BST
Spreader roller
Single-sided Corona pre-treatment for PE, type Softal, incl. ozone obliterator and suction
Common steel impression cylinder, Nickel-Plasma coated
Temperature unit, type Single
lnk circulation with pumps and ink containers
Automatie washing system
Viscosity control
Nip roller prior to 1st colour unit
Web Video camera/monitor
Operator column PROCONTROL®
Drying, thermal oil (without heater)
Solvent analyzer, system ENPRO®
Draw (chill roll) behind drying
Web guide prior to rewind, type BST
Non-Stop unwind, reel 0 1.000 mm, inner core 0 76 mm
Roll lift-in device
Splicing unit
printing sleeves (used), as per enclosed list
adaptors (used), as per enclosed list
anilox rollers {used), as per enclosed list
available technical documentation
Printing unit with 8 doctor chamber colour units FLEXOREX CCI
Longitudinal cutting unit with 5 razor blade holders, motoricall banana roller and suction
Electrical connection 3x 400 V, 50 Hz, with MP
