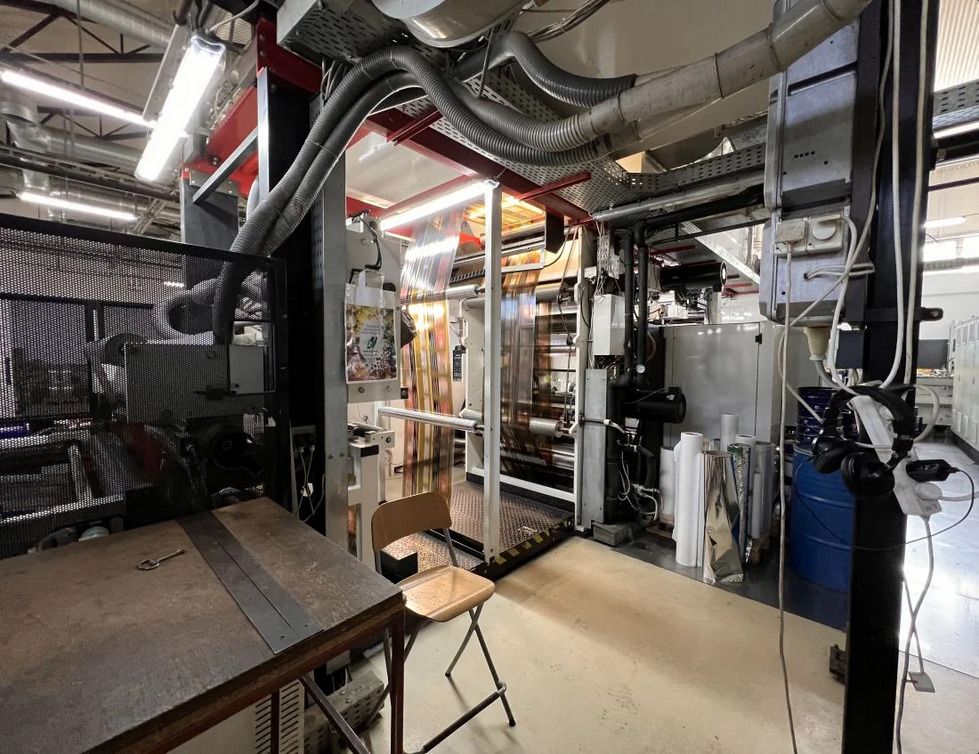

Windmoller & Holscher Novoflex 8010 1050 mm

Max. Web width:: 1050 mm
Max.Print width: 1000 mm
Printing repeat length: 300-760 mm
Max mechanical Speed: 300 m/min
No Corona treatment
Printable substrates and thickness ranges:
LDPE, PP, PA: 20-150 µm
HDPE, OPP: 12-100 µm
Laminates: 120-150 µm
Paper: 30-120 g/sqm
AL (soft, hard): from 10 µm

Unwind/rewind: non-stop (automatic reel change) system
Maximum Unwind/rewind diameter: 1,000 mm
Core diameters: 70/76 mm (occasionally 152 mm)
Web tension control with load cells and automatic regulation
Drying Thermal oil system
Inline slitting
Lift table
Web guiding system: BST type (edge guiding), ensuring guidance before and after printing
Web inspection camera/monitor for print quality control
Viscosity control (new viscosity meter), electric ink circulation system
Aradex VD600 units (currently installed): 4 new, 3 like new, 1 refurbished
New viscosity meter
Interface modem -> online connection of the printing press with W&H service
Format shafts (currently installed): 4 new motors + 1 factory refurbished
Sleeves: > 300 pcs
Plate cylinders: > 40 pcs
Anilox rollers: > 50 pcs
