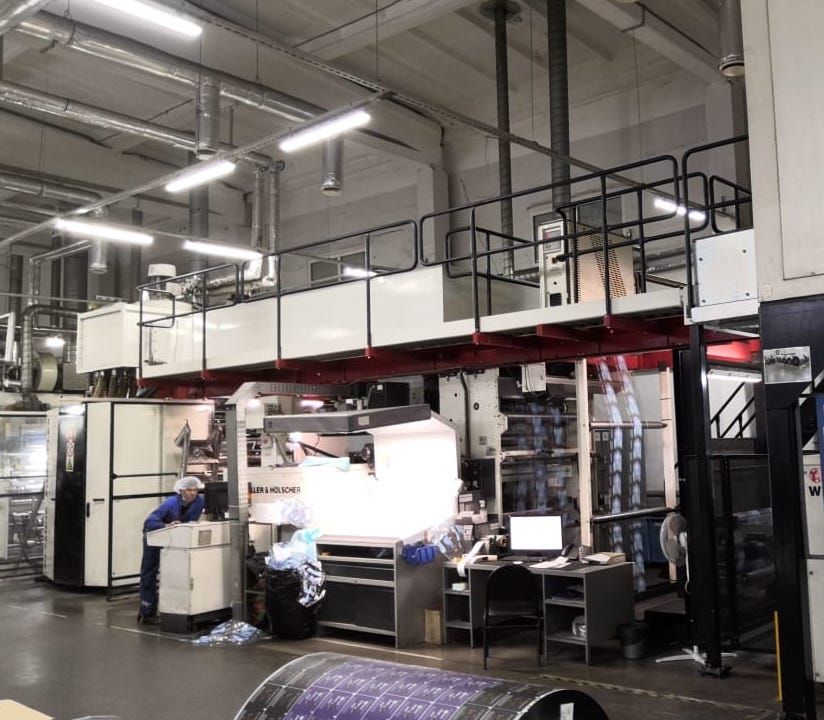

Windmoller & Holscher Primaflex 1270 mm

SUITABLE FOR PRINTING:
LDPE, PP,PA: 20 - 150 microns
HDPE, OPP: 12 - 100 microns
PET: 12 - 150 microns
OPA: 12 - 200 microns
Paper 30-120 g/m

Material thickness: PET, OPP, PE aluminum and composite materials 12 - 150 µm
Max. printing width 1270 mm
Print repeat range 370 – 760 mm
Speed mechanical 300 m/min
Inner core diameter: 70 /76 mm
Unwinder automatic, non-stop, reel diameter 800 mm
Rewinder automatic, non-stop, reel diameter 800 mm
Drying with thermal oil
Corona treater Softal
Web guides: BST
Viscosity control
Inking system:- closed chambers doctor blades

Anilox cylinders
1 x 80 L/sm – 14 cm/m2
1 x 100 L/sm – 10,7 cm/m2
1 x 140 L/sm – 8,2 cm/m2
2 x 200 L/sm – 7,0 cm/m2

Sleeves: 8 x 380-400-420-435-440-400-470-500-515-520-530-540-560-600-620-630-660-720
