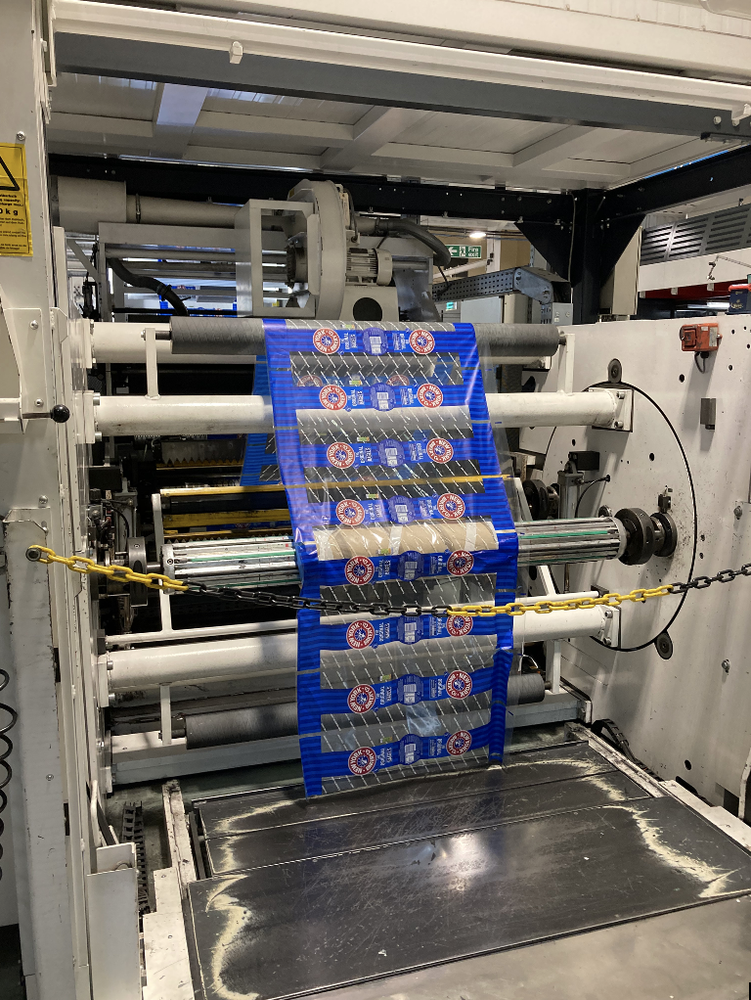

Windmoller & Holscher PRIMAFLEX CM8 1,270 mm

Maximum material width: 1,320 mm
Maximum printing width: 1,270 mm
Printing repeat length range: 360–800 mm
Maximum roll diameter: 800 mm
Maximum roll weight (unwind and rewind): 850 kg
Core inner diameter: 70 / 76 mm
Core outer diameter: 85 / 90 mm
Web tension range – unwind: 25–330 N
Web tension range – draw section: 25–350 N
Web tension range – rewind without slitting: 25–350 N
Web tension range – rewind with slitting: 40–350 N
Maximum machine speed: 400 m/min

Processable Materials:
• LDPE, PP: 20–150 μm
• HDPE, OPP: 12–100 μm
• Laminated films: up to 150 μm
• Paper: 30–120 g/m²
• PET, OPA, BOPP: 10–30 μm

Electrical Requirements:
• Machine connected load: 240 kVA
• Additional connected load (electrical heating): 180 kW

Cooling Water Requirements:
• Chill roller (per roller): approx. 1.5 m³/h
• Temperature control unit: max. 2.0 m³/h

Compressed Air Requirements:
• Pressure: 600 kPa
• Volume (normal printing): approx. 1.75 m³/h
• Additional volume for sleeve change (max. 5 min.): approx. 2.5 m³
• Additional volume for TURBOCLEAN®: max. 270 m³/h

Drying (Electrically Heated):
• Air supply – printing unit: max. approx. 3,610 m³/h
• Air supply – bridge: max. approx. 6,320 m³/h
• Combined exhaust air – printing unit & bridge: 7,750 m³/h (reference temperature: 20°C)
• Max. exhaust air temperature: 57°C
• Fresh air quantity: 4,230 m³/h
• Fresh air temperature: approx. 20°C
• Heating capacity – printing unit: approx. 150,000 kJ/h
• Heating capacity – bridge: approx. 360,000 kJ/h
• Air outlet temperature – printing unit: max. 100°C (heating off: hall temperature + approx. 20°C)
• Air outlet temperature – bridge: max. 120°C (heating off: hall temperature + approx. 20°C)
• Air outlet speed – printing unit: max. 55 m/s ±10%
• Air outlet speed – bridge: max. 45 m/s ±10%

Noise Emission:
• Sound pressure level: 83 dB(A)
• in accordance with DIN EN ISO 3746 / EN 13023
• Noise guarantee void if non-W&H equipment is added to the machine

Colour:
W&H – New Line® – CDesign (RAL 3000 red / RAL 7016 anthracite / RAL 9010 white)
