Winter Complete log band sawmill with double edger and wood excavator

Complete log band sawmill with double edger and wood excavator
Complete log sawmill includes:

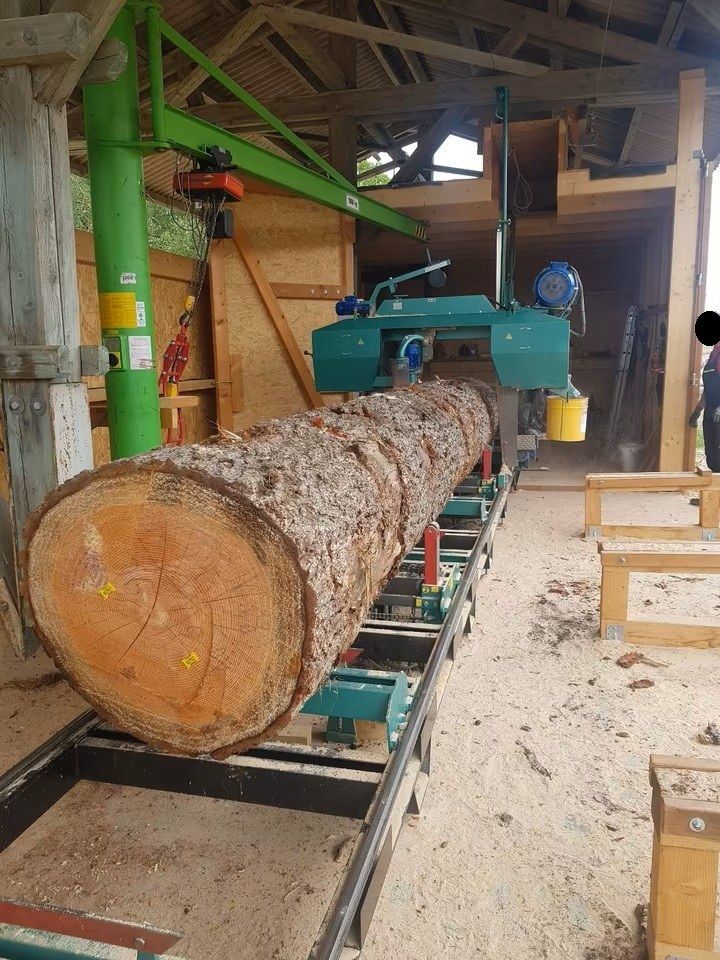

Log band sawmill
Brand: WInter
Type: TTM 1100

Technical data:
- Max. log diameter 1100 mm
- Max. cutting length 10 m
- Rail length 12 m
- Main drive 15 kW
- Horizontal feed drive 1.10 kW
- Vertical feed drive 1.10 kW
- Roller feed drive 0.18 kW
- Voltage 400 V / 50 Hz
- Electrically adjustable saw head
- Forward feed speed 1.5 - 20 m/min
- Reverse feed speed 5.0 - 40 m/min
- Up/down feed speed 20 mm/s
- Saw blade dimensions Length 4.80 - 4.90 m, width 35 - 38 mm, thickness 1.1 - 1.2 mm, tooth pitch 22 mm
- Includes operator seat
- Includes turning rollers
- Includes log clamp
- Includes log supports
- Includes sighting ruler
- Includes circular scale
- Saw unit dimensions W=2400, L=1700, H=1700 mm
- Weight of saw unit: 950 kg
- Weight of rail (2 x 6.0 m): 700 kg
- Weight of rail accessories: 300 kg
- Dimensions L=13.0 m x W=1.7 m x H=1.7 m
- Total weight: 1950 kg
- Including hydraulics

Double edger
Brand: Winter
Type: DS 160 Deluxe

Technical data:
- Max. cutting height 160 mm
- Max. passage width 980 mm
- Feeding with max. 15 saw blades
- Saw blade diameter 450 mm
- Saw shaft ø 75 mm
- Saw blade bore ø 75 mm with keyway
- Feed speed adjustable 0-30 m/min.
- Including chip discharge belt
- Saw shaft motor 37.0 kW
- Total connection 40.5 kW
- Voltage 400 V / 50 Hz
- CE conformity
- Dimensions L=3500 mm, W=1950 mm
- Weight 2500 kg
- Motor 37.0 KW

Sharpening machine for saw blades OWM - 4A
Brand: WInter

Technical data:
- Automatic work sequence
- Programmable tooth counter with automatic shut-off
- Saw blade length 3 to 5 m
- Tooth height: Triangular tooth 4-12 mm Wood-Mizer profile 7-20 mm Broken tooth 4-7 mm
- Tooth spacing 5-30 mm
- Tooth profiles
- Feed speed 40 teeth/min, 60 teeth/min on special request
- Grinding wheel motor 0.18 kW, 400 V / 2800 rpm
- Feed motor 0.15 kW 380 V / 900 rpm
- Grinding wheel outer diameter 150 mm x 8 mm inner diameter 13 mm or 20 mm
- Dimensions (LxWxH) 0.70 x 1.0 x 1.30 m
- Weight 115 kg

Tooth setting machine
Brand: Winter
Type: RWM

Technical data:
- Max. tooth setting per side up to 1 mm
- Setting accuracy ± 0.05 mm
- Speed up to 70 teeth/min
- Band width 15 - 100 mm
- Tooth scale 8 - 50 mm
- Tooth height 5 - 15 mm
- Band thickness up to 1.2 mm
- Including base frame
- Weight 35 kg

Wood excavator
Brand: Atlas
Type: 1304

Technical data:
- All hoses have been replaced
- Drive motor has been newly installed
- Wood grapple included
- Two slewing cranes, 500 kg each
- One custom-made crown grapple for moving heavy block goods. Load capacity 250 kg.
- One wood grapple for the slewing crane
