1/1

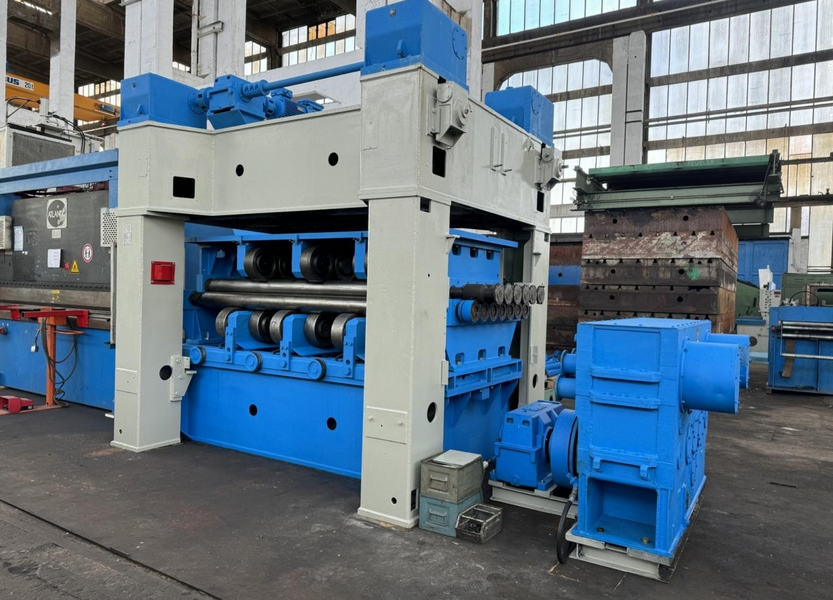

WMW GOTHA UBR 10 x 2000 /1-16
Ref :
2796947-3-MT
Condition :
Used
Manufacturer :
WMW
Model :
GOTHA UBR 10 x 2000 /1-16
Year(s) :
1982
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Sheet Width 2000 mm
Sheet Thickness (max) 10 mm
Sheet Thickness (min) 3 mm
Straightening Roller Count 13 rollers
Straightening Roller Diameter 145 mm
Support Roller Diameter 290 mm
Roller Center Distance 150 mm
Feed Speed 16 m/min
Traverse Lift Speed 0.71 mm/sec
Traverse Lift Range -18 to +42 mm
Lower Crossbar Swivel Max 8 mm
Main Drive Motor 30 kW
Machine Weight 32 tonnes
Included Equipment
Support rollers 21/24
Supports top/bottom 3/3
