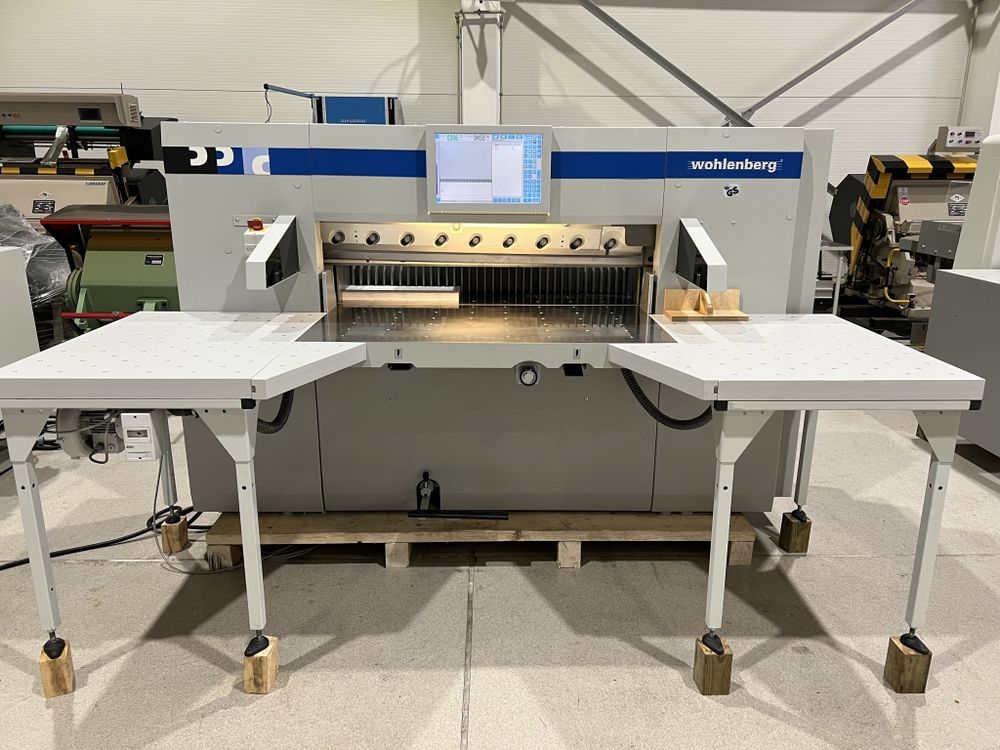

Wohlenberg 132 TS

Paper Cutting Machine
Machine in very good condition, ready for production.
Available immediately from stock.
The guillotine can be used as a stand-alone unit or integrated with cutting systems.
Program generation takes place in the menu and includes various cutting tasks, e.g.
Single cut, Programming, Multiple cut, Non-cutting pressure, Automatic actual value transfer.

Distinguishing features of the Wohlenberg machine:
– Interactive user interface
– 18.4” touch screen
– MIS integration (optional)
– USB interface
– Ethernet interface
– Windows CE operating system
– CIP data module
– Positioning via electronic handwheel
– Optimized cutting cycle
– Programmable hold-down pressure
– Automatic adjustment of the hold-down pressure to the cutting width
– Automated knife change from the front
– Quick knife change
– New machine body cast in one piece = higher stability
– Maintenance-free electromagnetic clutch

Technical data:
Cutting length: 1320 mm
Maximum stack height: 165 mm
Infeed depth: 1325 mm
Smallest cut with sheet metal under the pressure beam: 77 mm
Smallest cut without sheet metal under the pressure beam: 20 mm
Maximum saddle feed speed: 300 mm/s
Maximum mechanical efficiency of the knife: 44 cycles/min
Saddle guidance: above the work table
Main engine power: 4.5kW
Net weight: 3410 kg
The machine is equipped with a spare knife, sticks, a pressure plate, documentation, tools.
