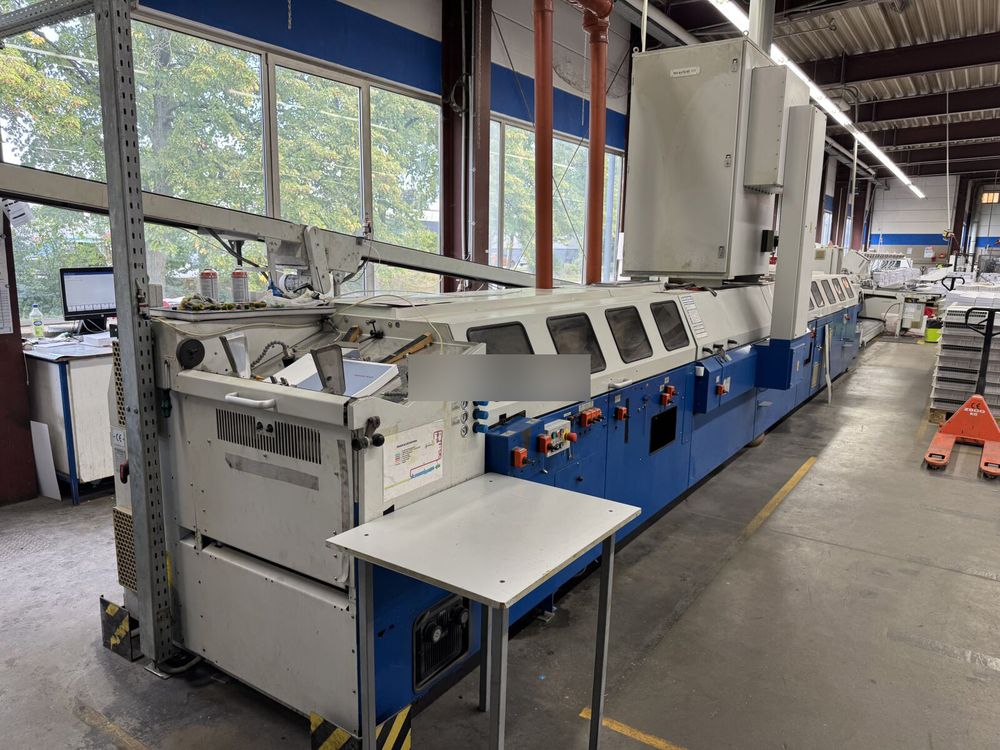

Wohlenberg Champion S

Equipment:
Gathering Machine:
Type: Sprinter e XL
Gathering stations: 20
Year: 2006
Hand feeding station
ACC-Control
criss cross delivery
Winjector
SPS Control
Touchscreen
Fill level monitoring in the magazine

Technical Details:
Size max: 320 x 485 mm
Size min: 75 x 105 mm
layer thickness max: 3 mm
Mechanical speed max: 1.000 - 8.000 cycles/h

Perfect Binder:
Type: Champion S
Year: 2006
Number of clamps: 28
infeed incl. coupling to a ZU gathering
Endsheet: 1x
Milling station
Premelter for hotmelt spine gluing
Premelter for hotmelt side gluing
Gauzing
rill station for 4 times rill
Cover feeder: Rotary feeder
Nipping and Pressing station
1st Spine preparation Station

Spine Gluing:
Base for 1 Spine Gluing Unit
Base for 2 Spine Gluing Units
Infrared intermediate Drying between both bases
Hotmelt: Mobile, with 2 application rollers
Cold Glue: Mobile, with 2 application rollers and one foam application roller for special work
PUR: Glue pot as 2nd glue tray (interchangeable)

Side Gluing:
Hotmelt: Mobile, with 2 horizontal, separately height-adjustable discs
Cold Glue: Mobile, with 2 horizontal, separately height-adjustable discs

Drying Conveyor:
conveyor belts
Drying station: with drying tower

Three knife trimmer:
Type: trim-tec 60i
Year: 2006
Small format device ( 70 x 115 mm trimmed / 80 x 120 mm untrimmed)
Big format device

Technical Details:
Size max (cutted)): 310 x 430 mm
Size min (cutted): 85 x 145 mm
Size max (uncutted): 320 x 440 mm
Size min (uncutted): 87 x 147 mm

Technical Details:
Mechanical Speed: 1.000 - 8.000 cycles/h
Book thickness: 2 - 62 mm
Block height: 140 x 485 mm
Block width: 75 x 320 mm
Width of unfolded cover before binding: min. 208 mm (with small format device)
Sheet weight: Hotmelt: 135 - 400 g/m2 ; Coldglue: 135 - 320 g/m2
Max. Cover size: 490 x 645 mm
Min. Cover size: 140 x 208 mm
