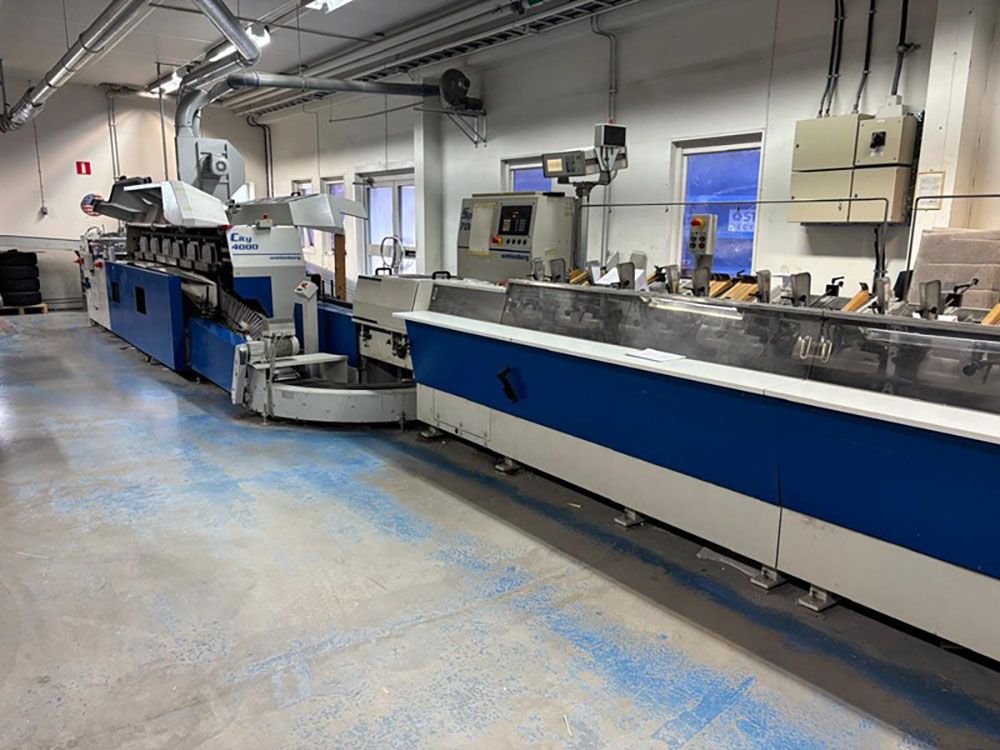

Wohlenberg City 4000

16 gathering stations with quality control in all stations
universat machine for single use or inline operation with the gatherer Sprinter 700917010
mech. speed: 1000 - 4000 cYcles/h

Format range:
book height: max. 370 mm, min. 140 mm
book width: max. 320 mm, min. 105 mm
format limitation through height-width ratio,
book thickness: max. 50 mm, min. 2 mm
clamp opening: 70 mm
fixed book hang-out 10 mm
with 15 coated clamps with centraladjustment
with infeed channel
with jogging station
witfr-comnined milling, roughening and brushing station 6'2 kW
incl.2 milling knifes Z=52,4 notching pins,2 brush sets
with cover feeding station and side gauges
format ranoe: max. 640 x 380 mm
min. 212 x 140 mm
cover iqht: for
hotmelt max.400 g/m2
(depending on glue, book thickness and fibre
running direction of the cover)
with scoring device lor 2 and 4 scores and devided scoring tools
with cover aligning and pressing station
with DV-pump for cover feeder
with long plate chain transPort
with PLC-device
with control panel and integrated plain text display,
with digital mechanical positioning indicators on important adjustment sPindles
with one-hand cordless jogger, incl. battery charger and 4 batteries
with noise insulation
with drive and switch cabinet for stand-alone and inline machines
with frequencY controlled motor for A.C. 400 volts (+6 % I -10 %)' 50 cycles, 3-phase
