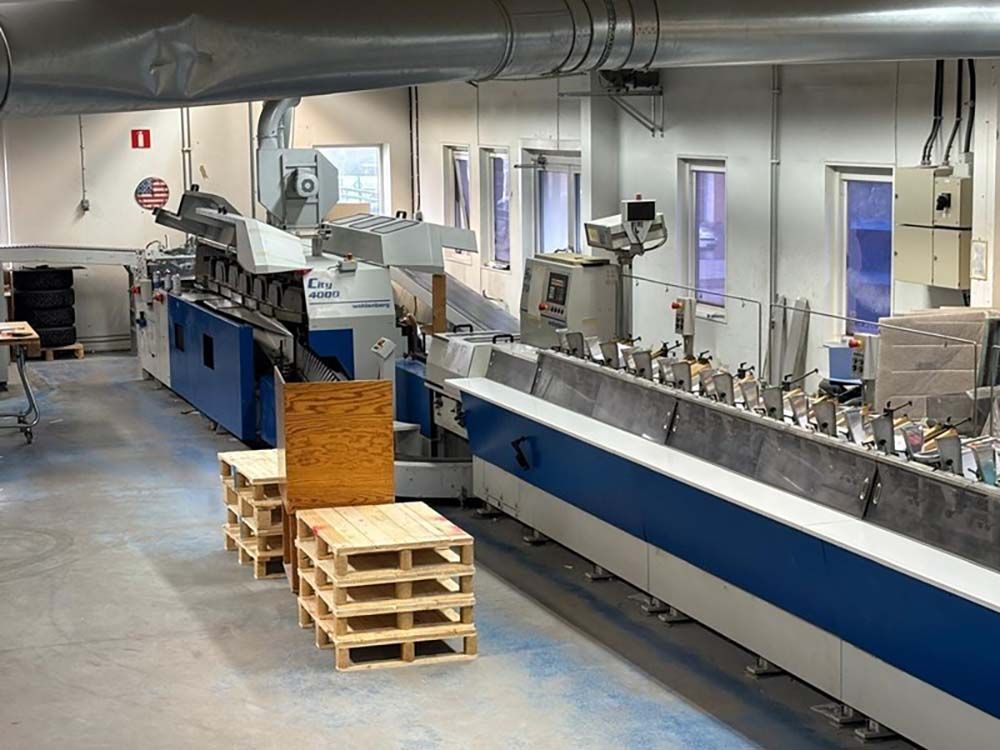

Wohlenberg CITY 4000

Binding length max./min.: 1000 to 4000 cycles/h.
Binding thickness: 2 to 100 mm
Cover size max.: 640x370 mm
Cover size min.: 208x140 mm
Cover thickness max./min.: 50 mm / 2 mm
Max. speed: 4000 cycles/h. (50.000 with fast speed option)
Max. book size: 370x320x50 mm
Min. book size: 140x105 mm

with infeed channel with jogging station witfr-comnined milling, roughening and brushing station 6'2 kW
Incl.2 milling knifes Z=52,4 notching pins,2 brush sets with cover feeding station and side gauges
Format ranoe:
max. 640 x 380 mm
min. 212 x 140 mm
Cover iqht: for hotmelt max.400 g/m2 (depending on glue, book thickness and fibre running direction of the cover)
with scoring device lor 2 and 4 scores and devided scoring tools with cover aligning and pressing station
with DV-pump for cover feeder with long plate chain transPort with PLC-device with control panel and integrated plain text display,
with digital mechanical positioning indicators on important adjustment sPindles with one-hand cordless jogger
Incl. battery charger and 4 batteries with noise insulation with drive and switch cabinet for stand-alone
and inline machines with frequencY controlled motor for A.C. 400 volts (+6 % I -10 %)' 50 cycles, 3-phase
