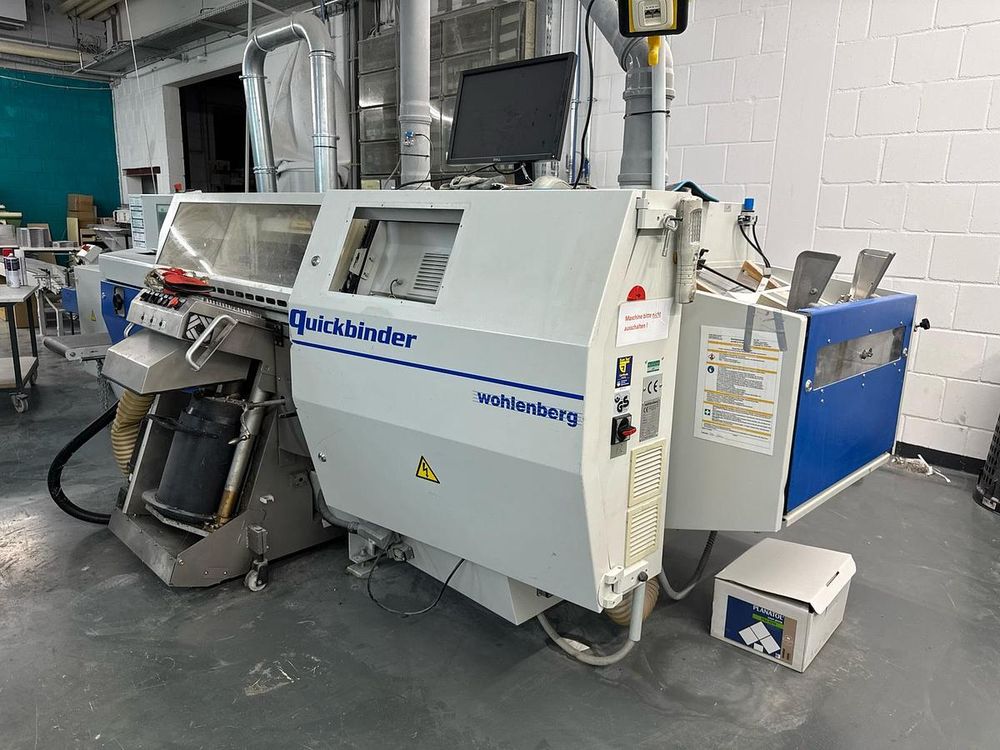

Wohlenberg QUICKBINDER

Perfect Binding Line
Overview:
QUICKBINDER perfect binder
transport and drying line
TRIM-TEC 45i three knife trimmer

Configuration:
QUICKBINDER perfect binder
Navigator with touchscreen
5 clamps
handfeeding
spine preparing unit with dust exhaust system
PUR spine gluing unit with integrated smelting unit
Hotmelt side gluing unit
rotary cover feeder
pressing station
delivery with lay down device to the left

Technical specifications:
mechanical speed: up to 2.000 cycles/h
size range max.: 430 x 320 x 70 mm
size range min.: 110 x 105 x 2 mm

transport and drying line with emergency delivery via reversing belt

TRIM-TEC 45i three knife trimmer
right hand infeed with integrated counter stacker
standard cutting tables
knife-changing device
delivery conveyor

Special equipment:
2 sets of knives
BUSCH KF 110-80 waste removal conveyor (year 1998)

Technical specifications:
mechanical speed: up to 2.700 cycles/h
size range uncutted max.: 310 x 410 mm
size range cutted max.: 300 x 380 mm
size range cuttes min.: 100 x 145 mm
