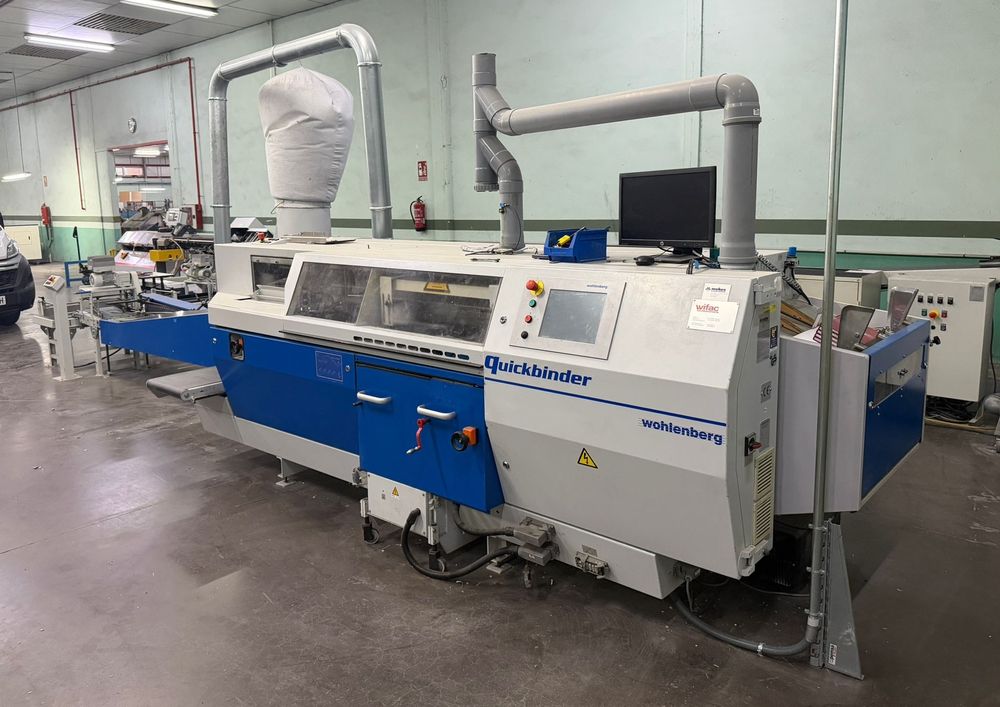

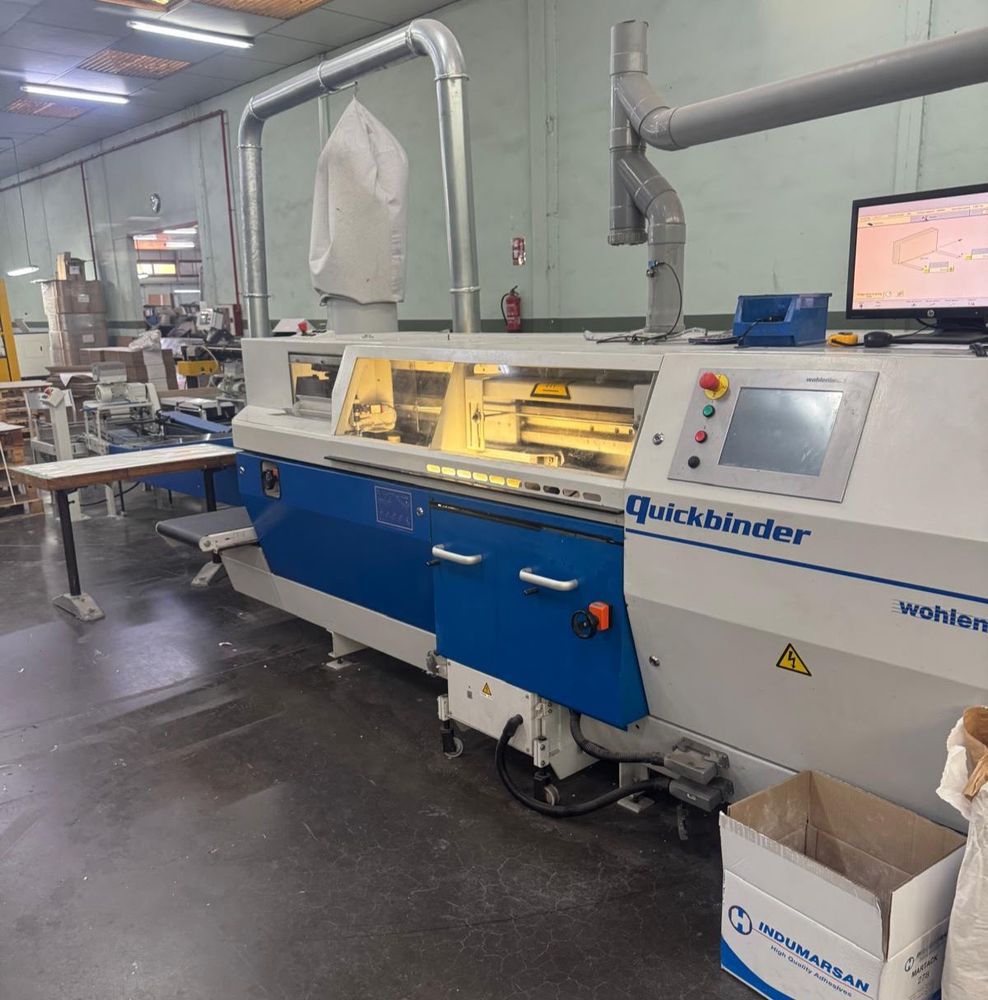

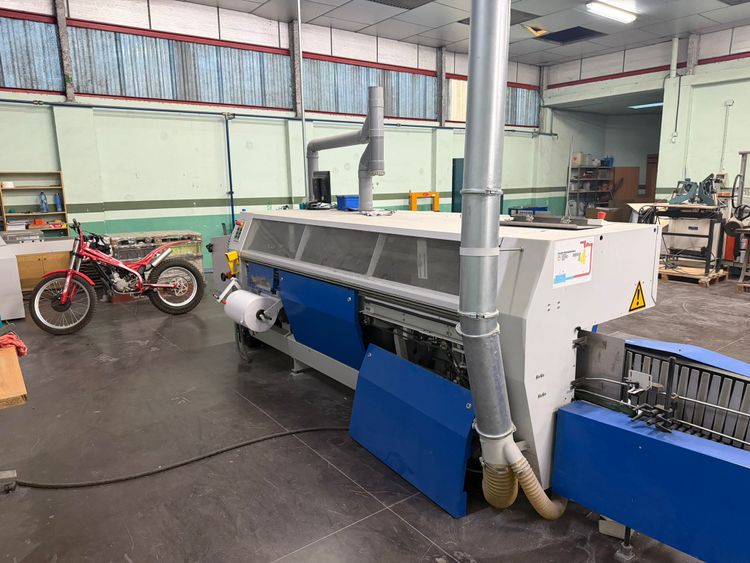

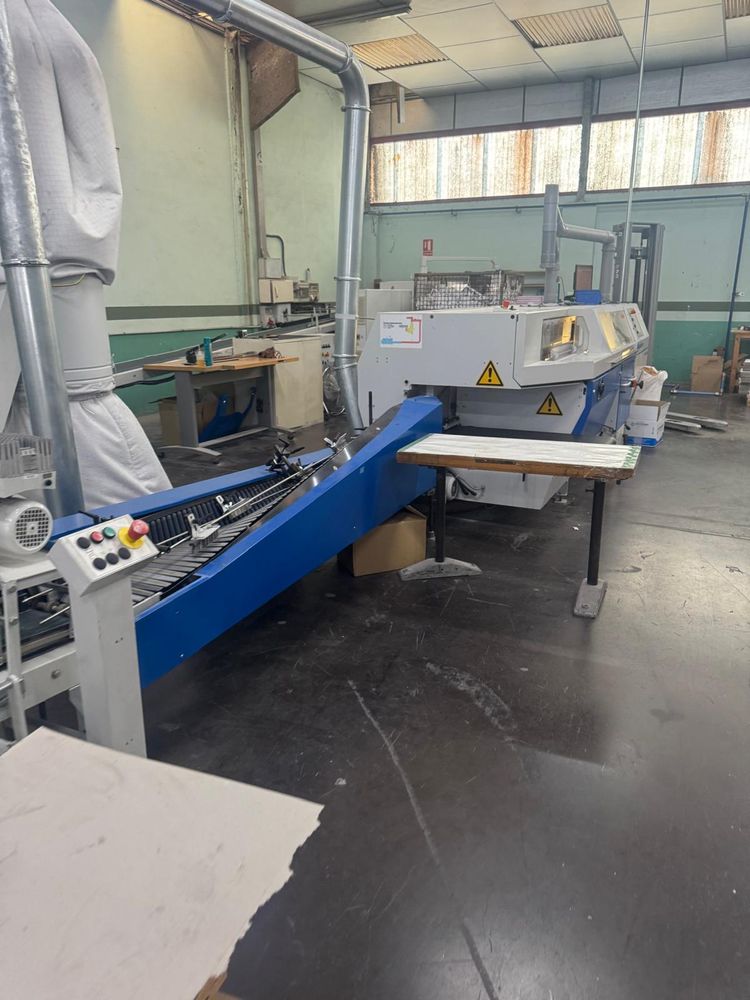

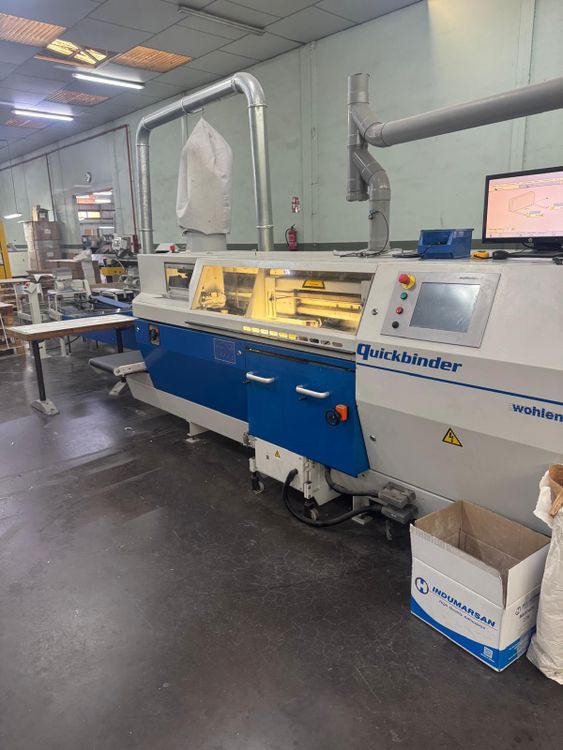

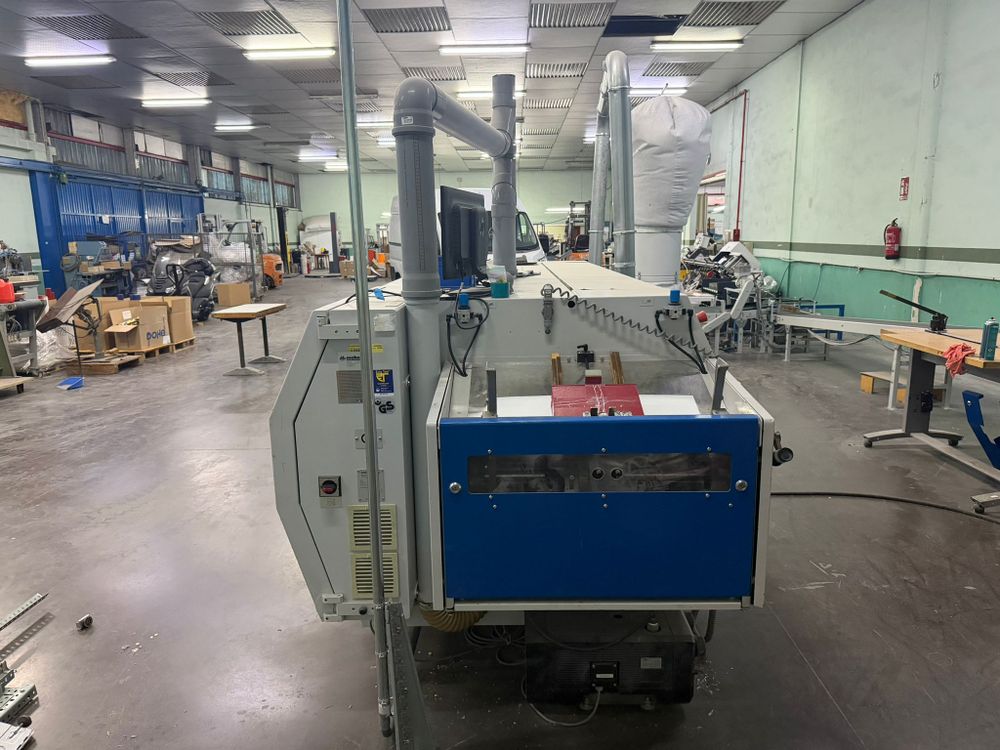

Wohlenberg Quickbinder

Book binding machine + three knife trimmer
Equipped with:
Feeding station

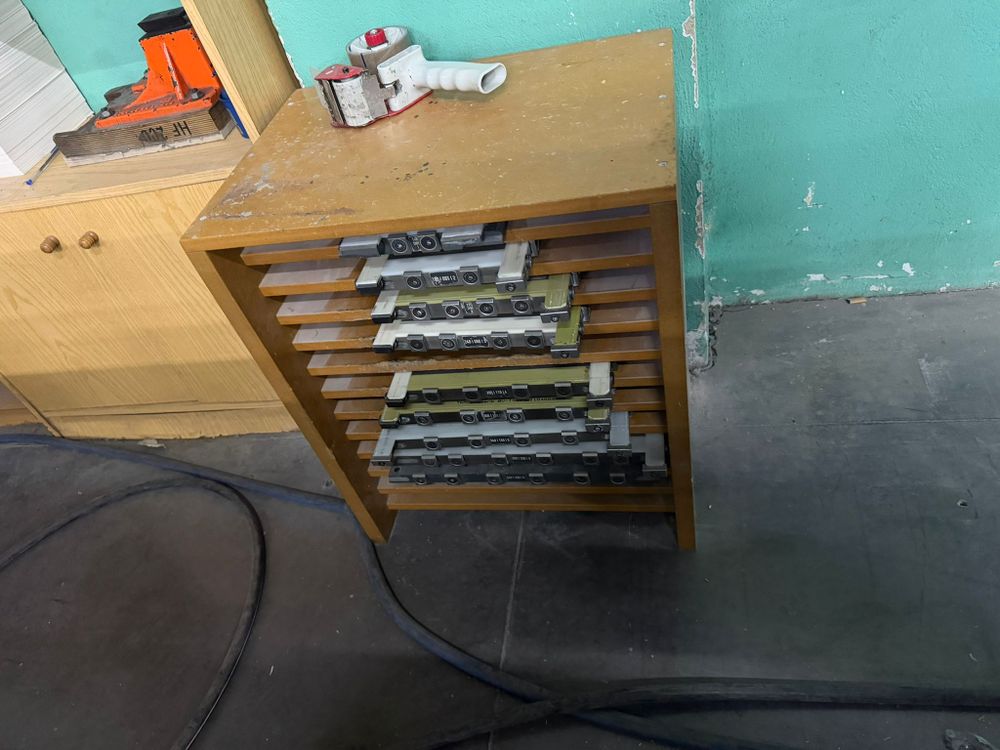

5 book binding clamps
Milling station
Hotmelt side gluing and front gluing
Pile cover feeder
Spine pressure station

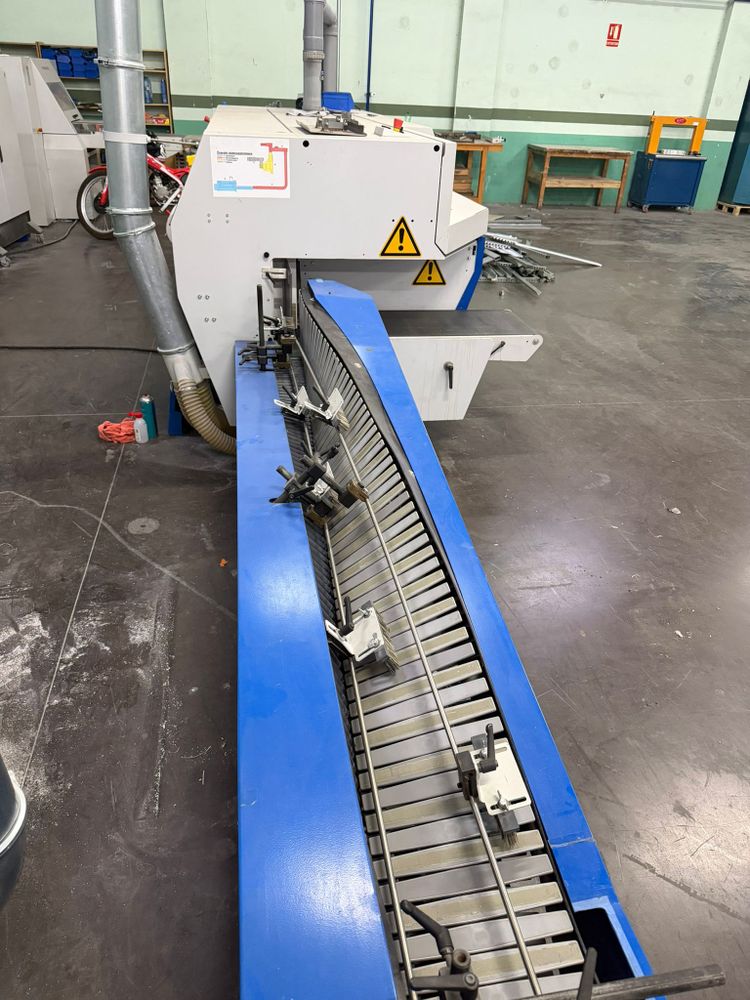

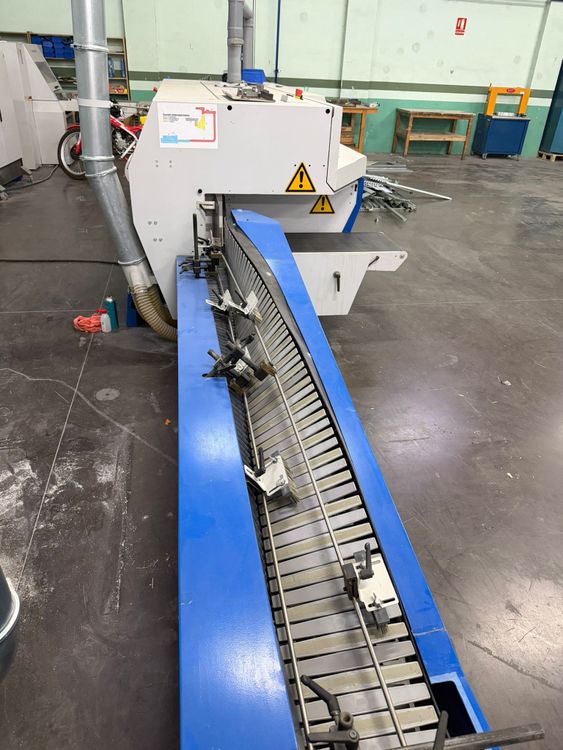

Laydown delivery

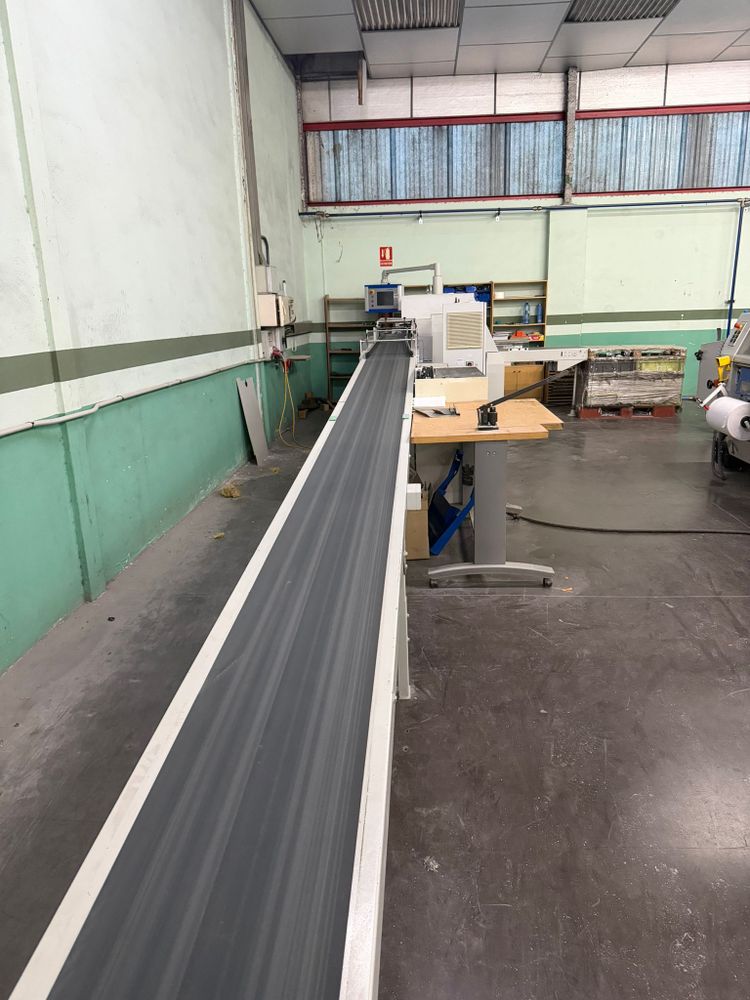

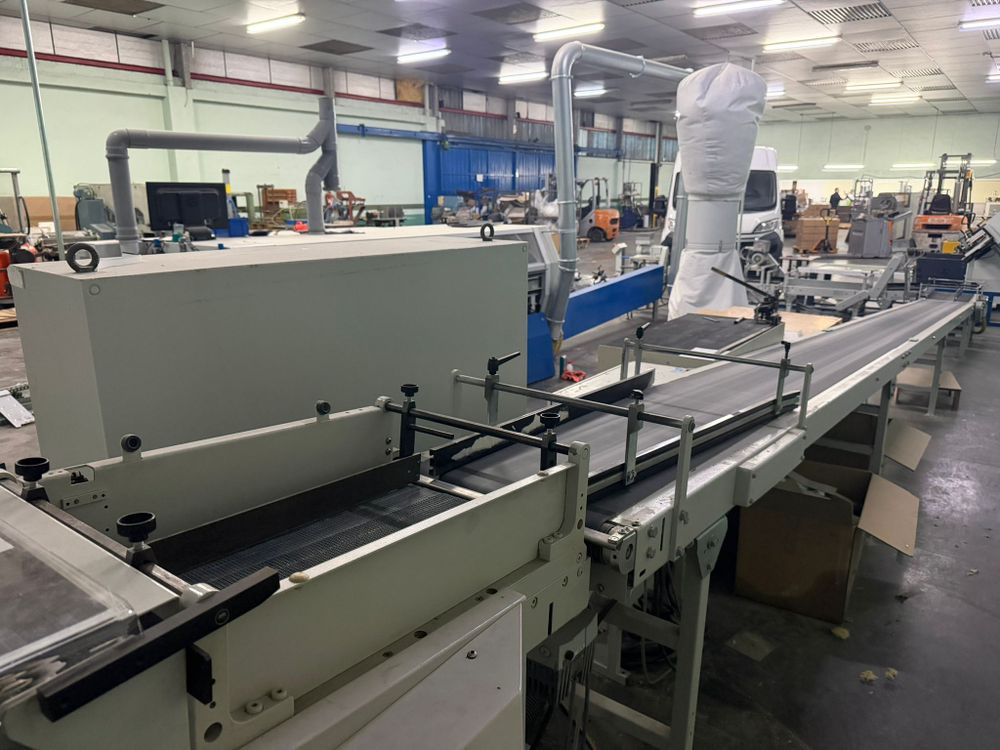

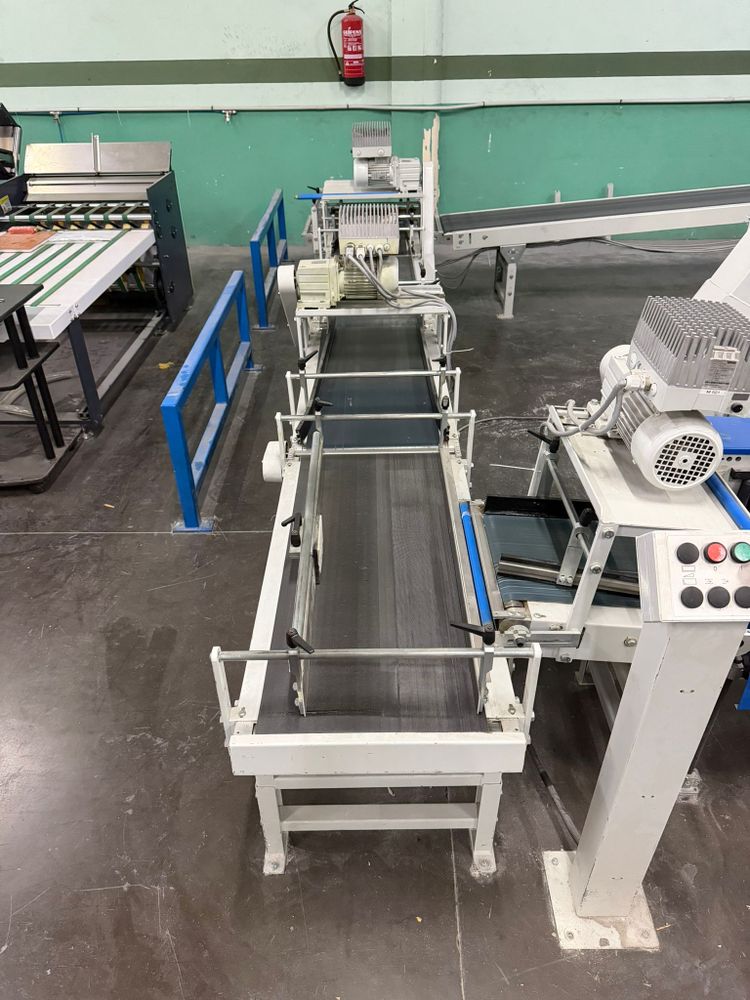

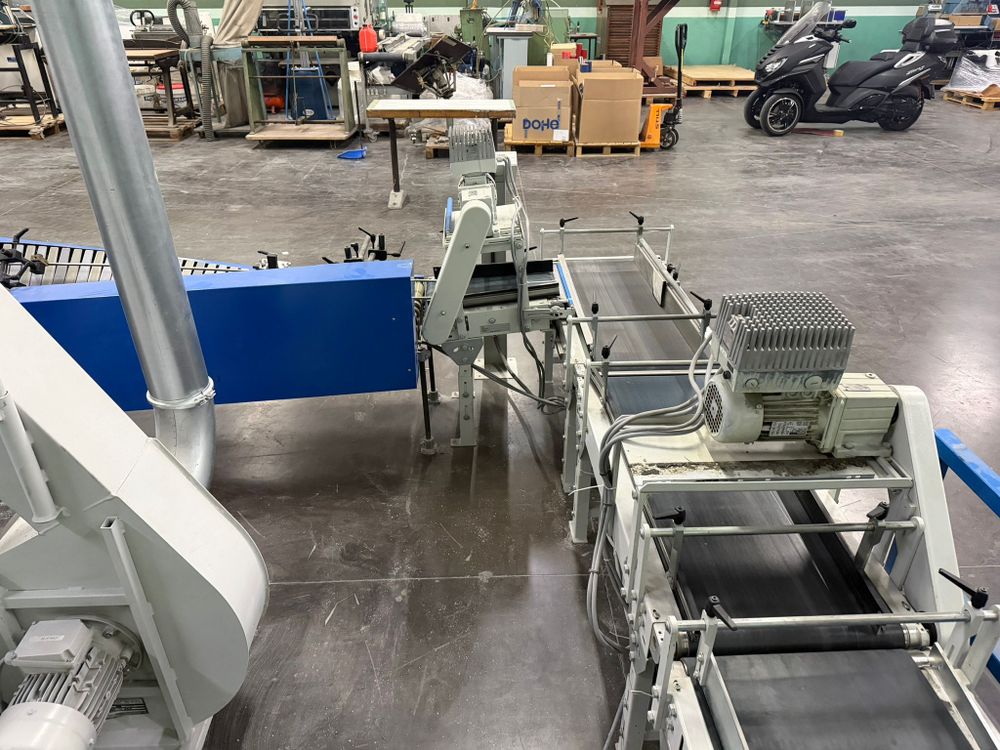

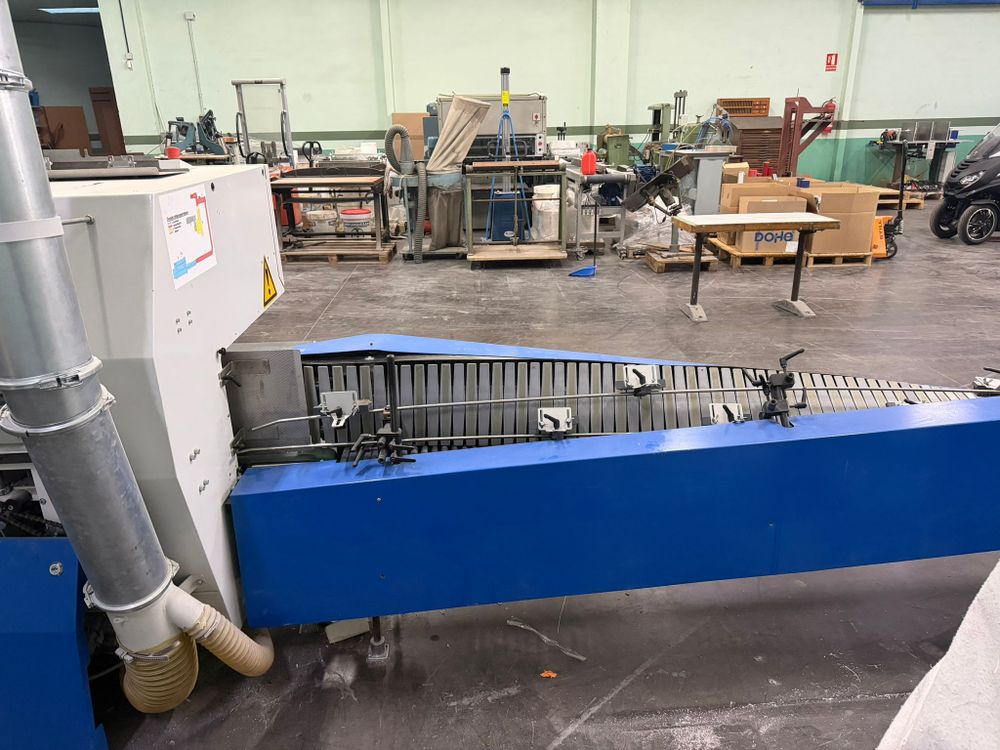

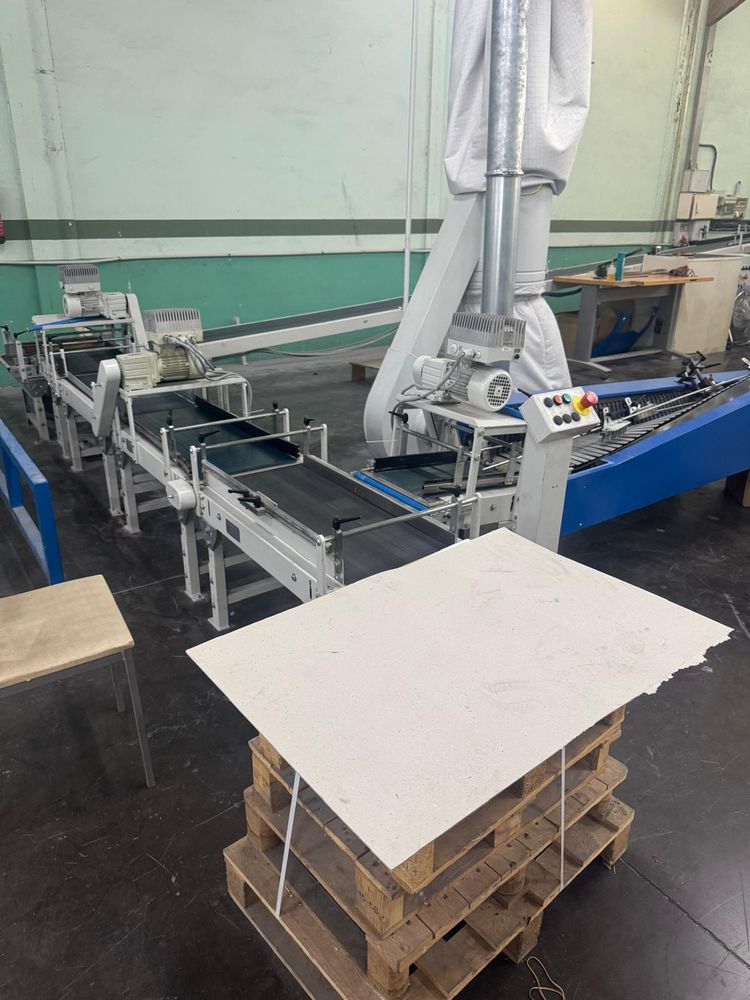

Conveyor belt system (14mts approx.)

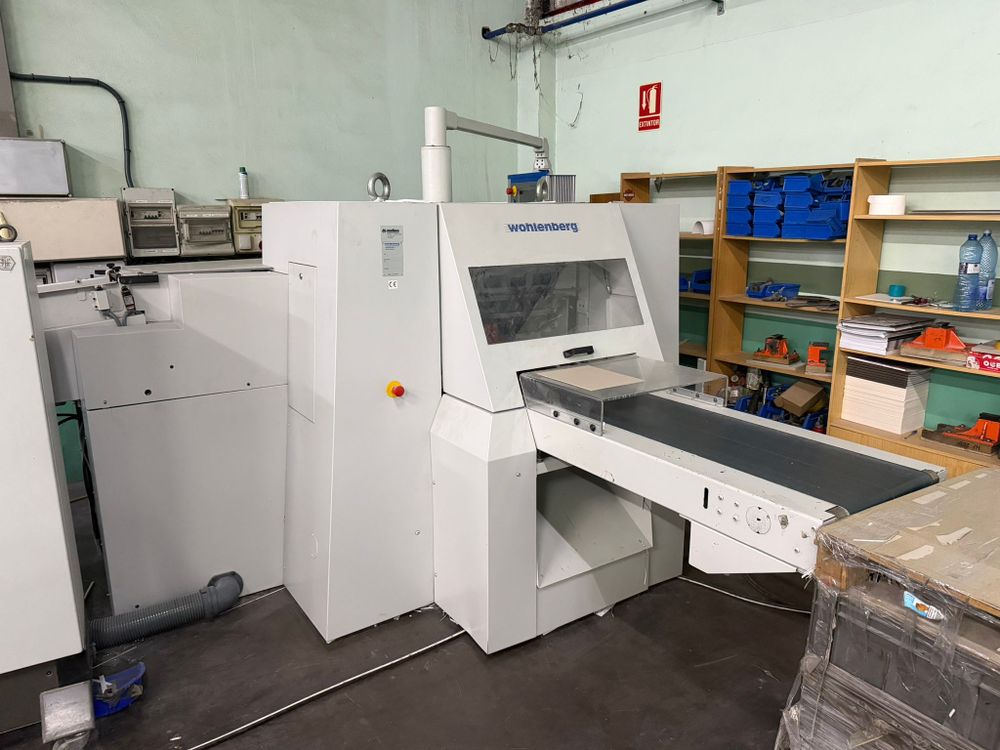

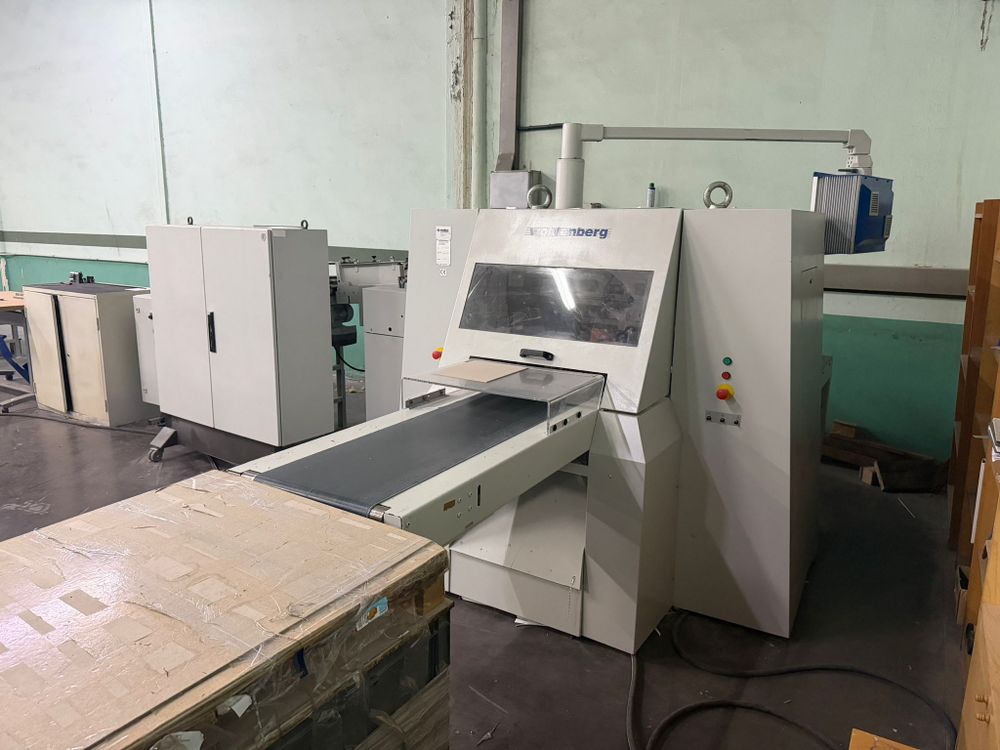

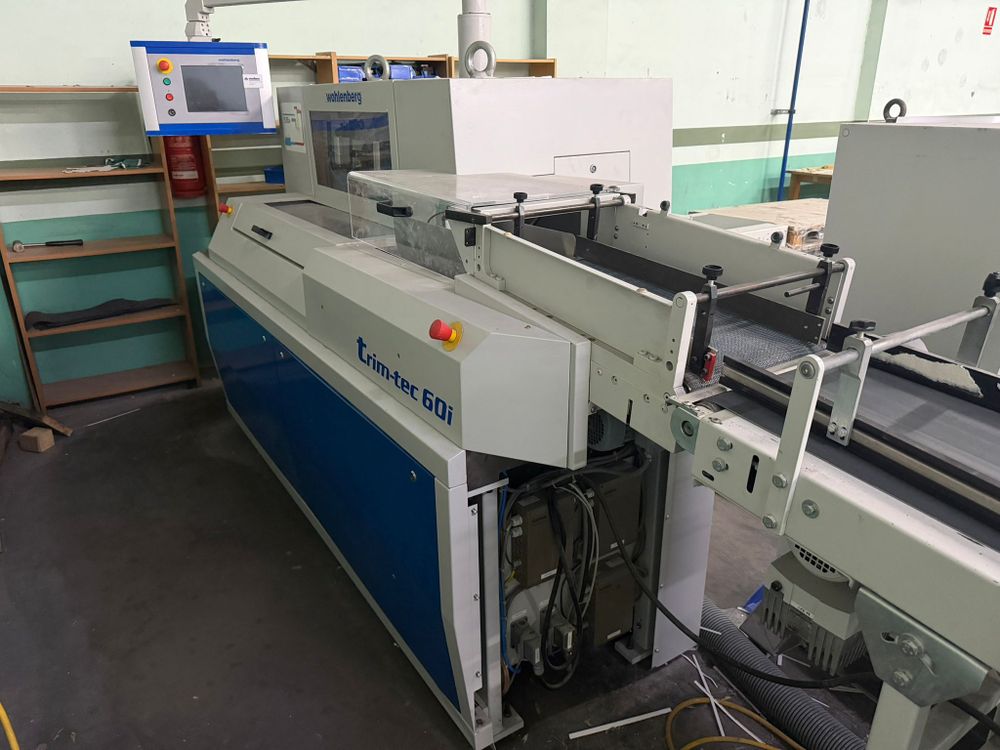

Three knife trimmer WOHLENBERG TRIM-TEC 60 I (2006)

Technical specifications (WOHLENBERG QUICKBINDER):
Mechanical speed: 500 - 2.000 cycles / hour
Product height: 110 – 430 mm
Product width: 105 – 320 mm
Product thickness: 2 – 70 mm
Cover height: 110 – 4355 mm
Cover width: 208 – 650 mm
Opening clamps: max 90 mm

Technical specifications (WOHLENBERG TRIM-TEC 60 I):
Mech. speed 1000-3600 cycles/h steplessly adjustable
max. untrimmed 310 x 420 mm
max. trimmed 300 x 400 mm
min. untrimmed 87 x 147 mm
min. trimmed 85 x 145 mm
head/tail trim 1 – 25 mm
front trim 1 -24* mm
*with 70 mm pile height 10 mm trim only
*with 60 mm pile height 20 mm trim only
