Wood chip suction
EUROPE (Western and Northern)

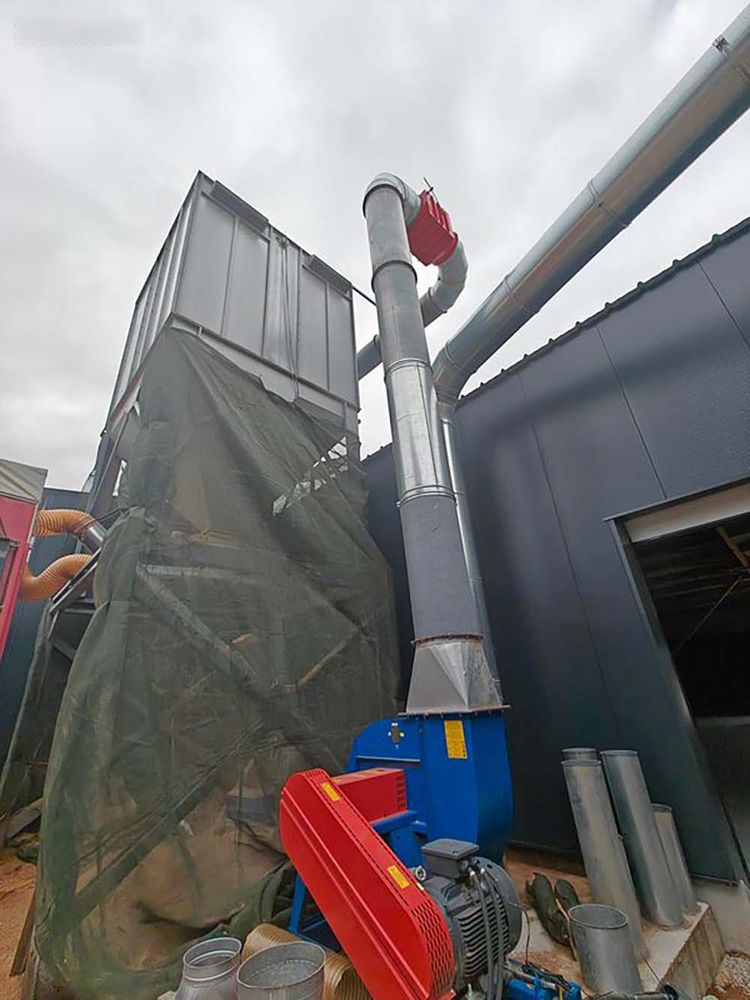

Woodworking workshop extraction:
The extraction includes:

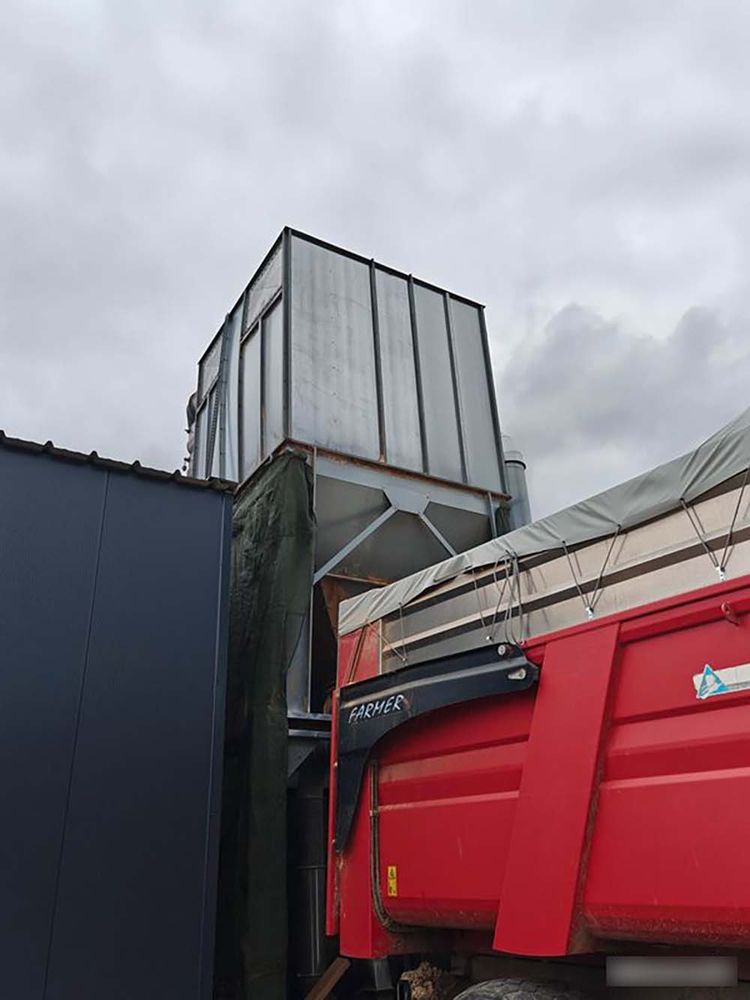

- SILO: ROBOCYCL' AIR TYPE 80 (YEAR 2007) with support:
Including:
- 80 filter sleeves, Ø220, 2,500mm high, made of 500g antistatic needle-punched felt (replaced October 2023).
Attached with a snap-ring and tension cup.
- 1 electromechanical vibrator, 90W power (ATEX compliant) with adjustable amplitude.
- 1 filter cell cladding with bolted panels and an inspection door.
- 1 explosion vent
- Clean air outlet on top via a Chinese bonnet.
- 1 quadrant collection hopper
- ATEX Zone 20 indoor airlock, excluding outdoor areas – certified as a protection system in accordance
with EN 15089 with an EA1MRP9 GALVA 200 filter/airlock adapter hopper (2021)
- ATEX Ø500 non-return valve compliant with EN 16447 AIRCOM (2021)
- ZM 710-I Ex12 fan (pulley/belt) LG0 orientation, ATEX 2D (Zone 21). SIMOTOP 30 kW 4-pole motor,
ATEX 3GD construction (zone 22) (YEAR 2020)
If required, we also have Ø500 pipes.
Inspection in working order until the end of week 39.
