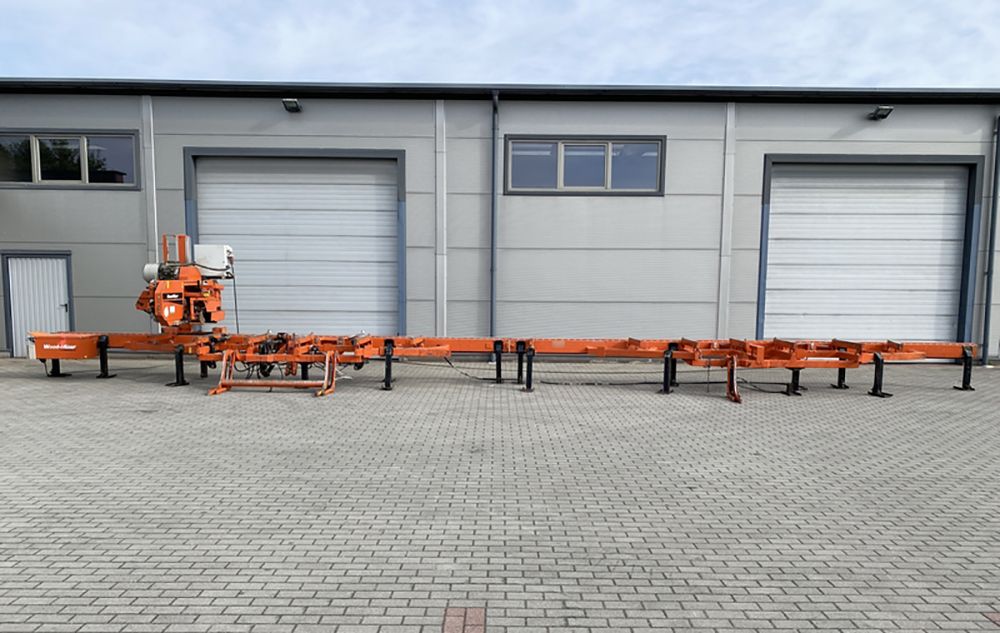

Wood-Mizer LT 70 Band Sawmill

Wood-Mizer Band Sawmill with Hydraulics and 13m Debarker
TECHNICAL PARAMETERS:
– Motor: 15 kW

Cutting Dimensions:
– Max. Log Diameter: 95 cm
– Roller Clearance: 73 cm
– Max. Cutting Width (Square Timber): 64 cm
– Max. Cutting Height Above the Blade: 39 cm
– Max. Cutting Length: 12 m

Head Equipment:
– Automatic Cutting Thickness Adjustment Device
– Electric Head Height Adjustment: Up/Down
– Electric Head Feed: Forward/Reverse: Continuously Adjustable Feed Speed
– Electric Blade Guide Arm
– Hydraulic Blade Tensioning System with Air Cushion
– Debarker

Blade:
– Length 4670 mm
– Width: 38 mm - 50 mm
– Blade guide wheels: 600 mm diameter
– Belt type: Z
– Material: Cast iron

The sawmill is equipped with full hydraulics:
– Hydraulic leveling system
– Side supports
– Material clamp
– Comb turner
– 3 loading arms

Machine dimensions:
– Length: 1520 cm
– Width: 235 cm
– Height: 240 cm
