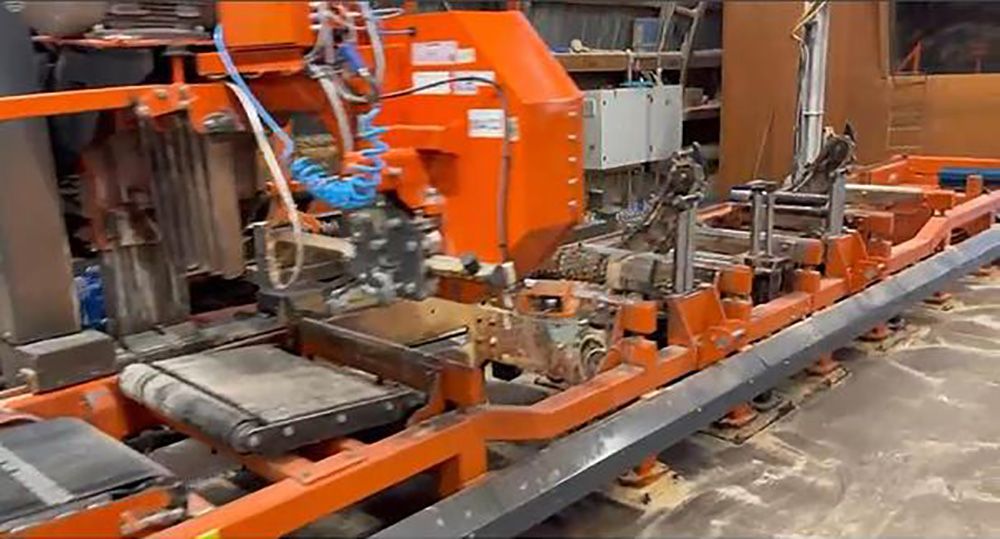

Wood-Mizer WM4000 SAW LINE

Power: 22kW Electric
Power Supply: 400V/50Hz, 3Ph
Blade:
Length 4.98m
Width 38mm
Blade Wheel: Diameter 635mm
Type Belted Cast Steel
Cutting Capacity: Length 6.50m
Length (with Board Removal) 6.30m
Diameter 910mm
Max. Clamp Width (from stop block) 660mm
Min. Clamp Width (from stop block) 50mm
Max. Throat Width (guide to guide) 830mm
Max. Cant Width (outer guide to stop block) 740mm
Max. Cutting Depth 61cm wide 130mm
Max. Cutting Depth 56cm wide 330mm
Dimensions & Requirements
Length (bed only) 8.80m
Length (with cab) 10.50m
Width (machine only) 3m
Width (with cable boom) 4.87m - 6.10m
Height (head only) 2.90m - 3.10m
Height (with cable boom) 3.40m
Bed Height 790mm
Weight 3800kg - 4250kg
Shop Air Supply 110psi
Dust Collection Port 150mm
Hydraulic System
Hydraulic Output 23 - 34 LPM
Motor 5.5kW - 7.5kW
