Wool washing (scouring) line - reconditioned

Wool scouring line - reconditoned in 2023

TECHNICAL SPECIFICATIONS – WOOL WASHING LINE

1. Year of manufacture: 1995
2. Manufacturer: Ivanovo Textile Machinery Factory, Russia
3. Modernization:
The line was partially modernized in 2023:

Pneumatic wastewater valve system replaced,

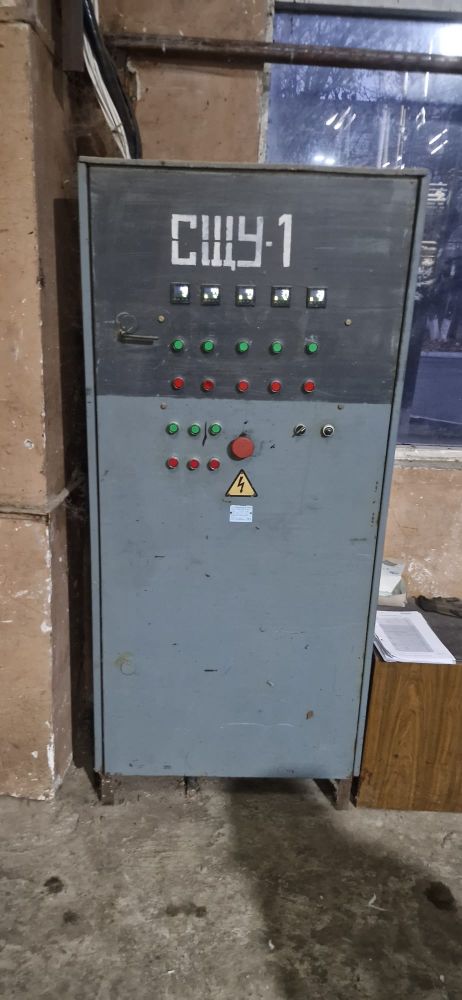

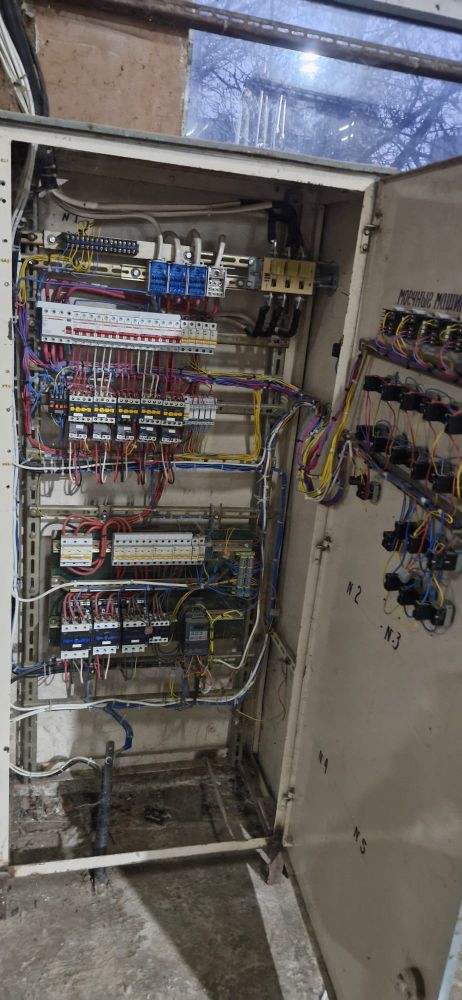

Electrical cabinet upgraded with modern components.

Although the line is old, it has seen very little use.

4. Total capacity: 800 kg/h
5. Material processed: Raw sheep's wool
---

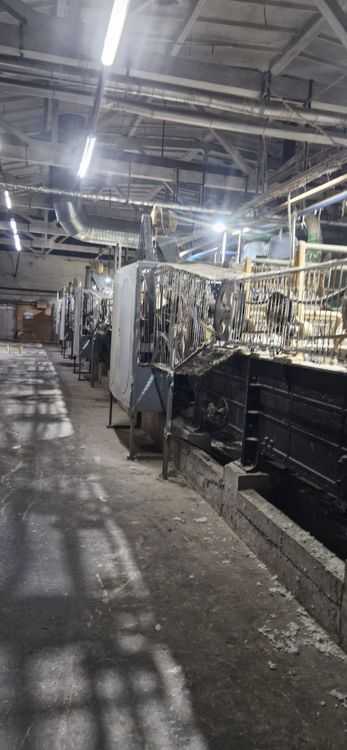

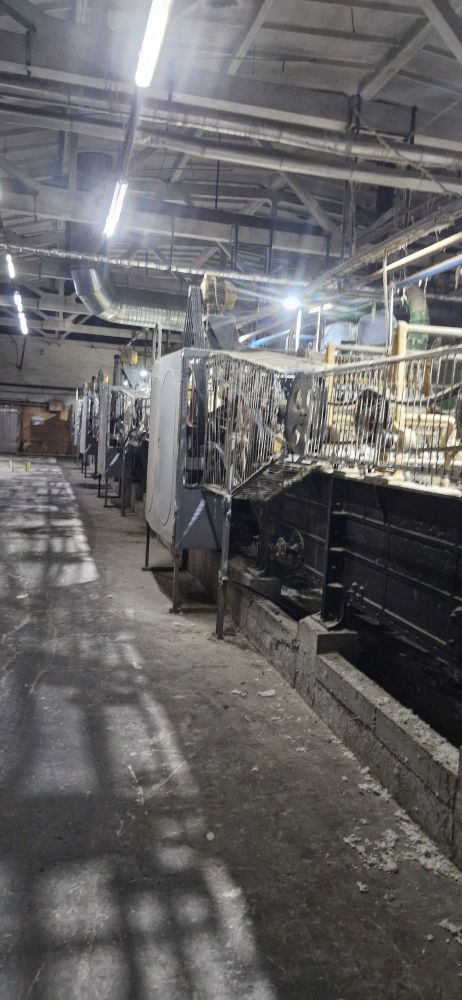

Line composition

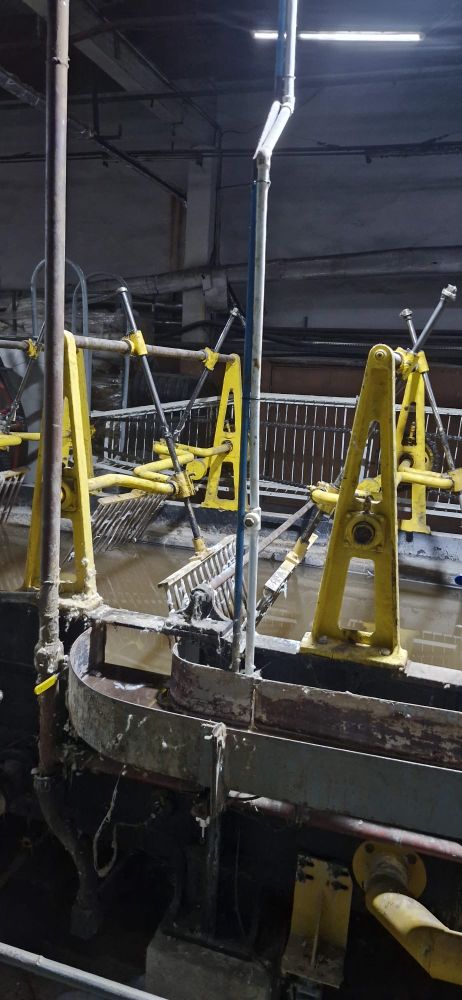

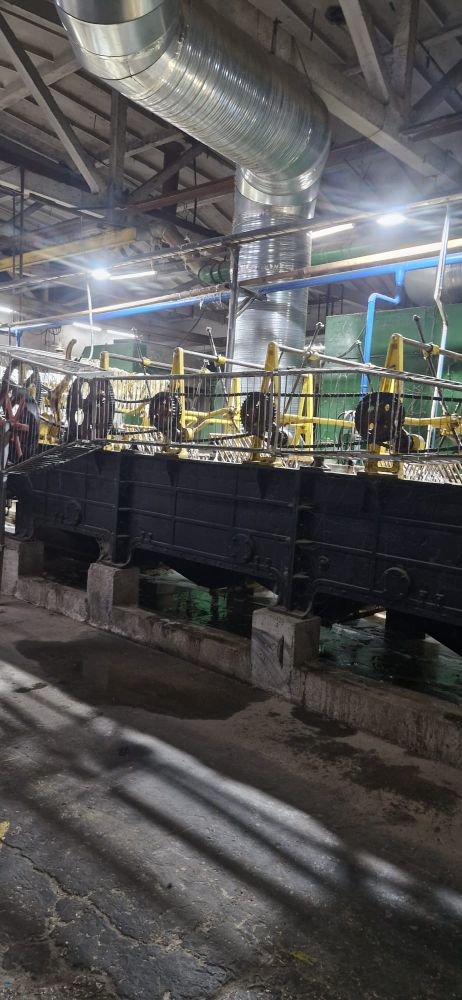

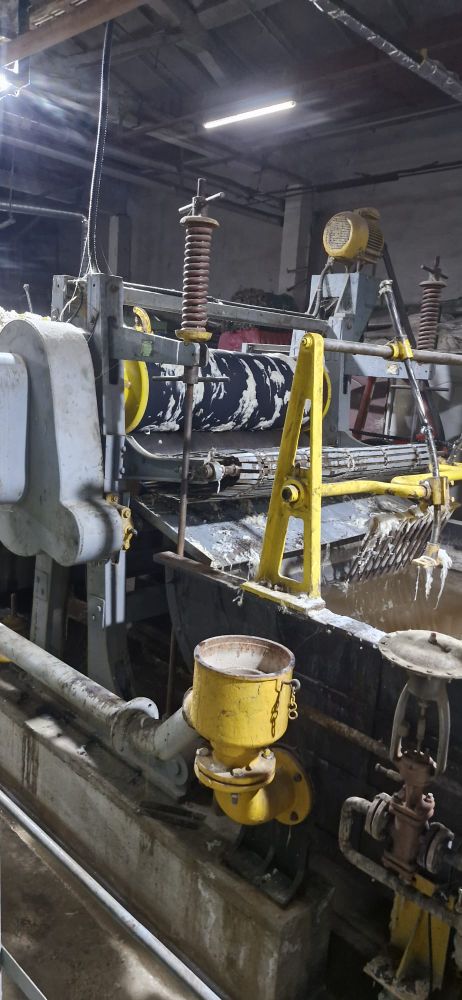

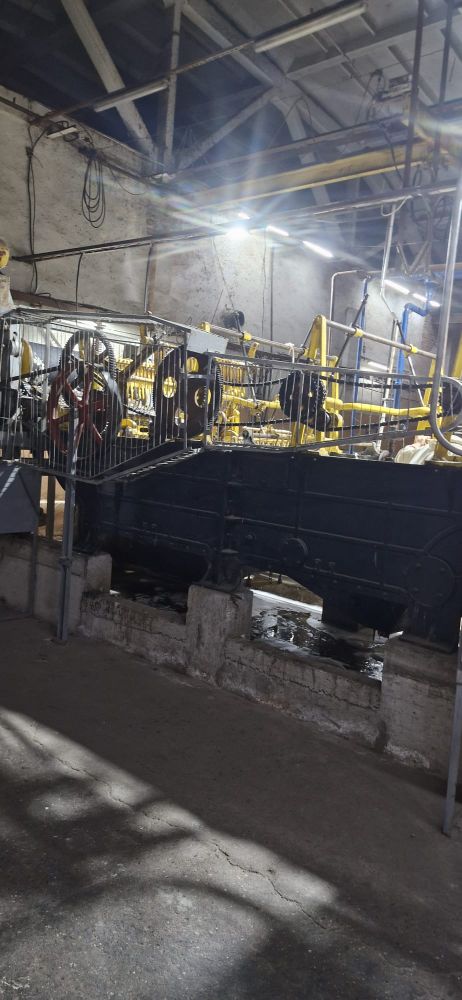

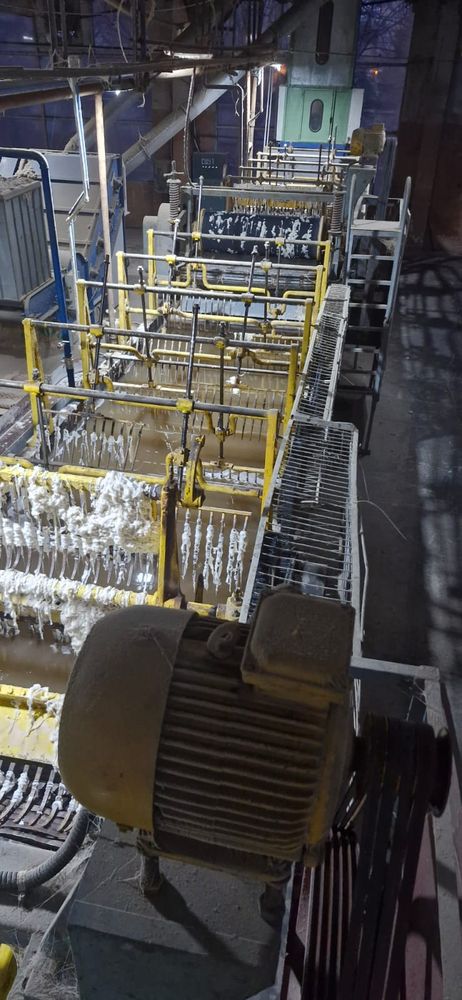

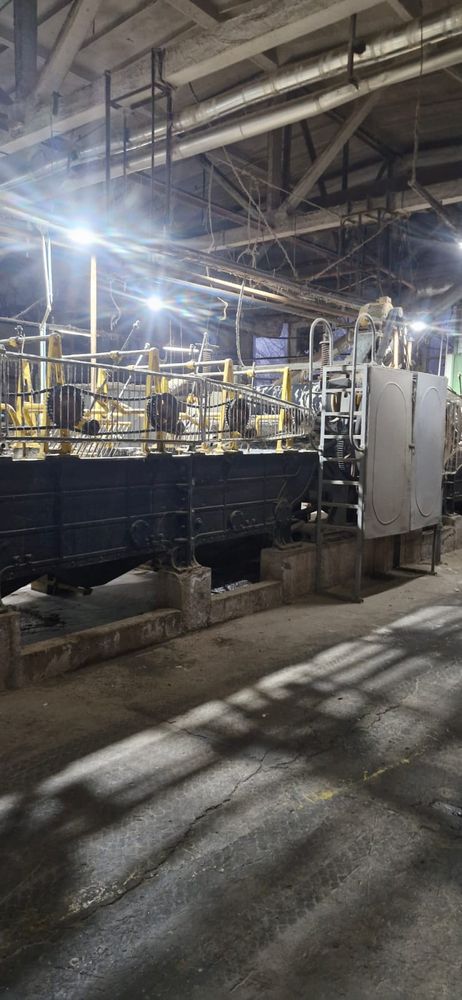

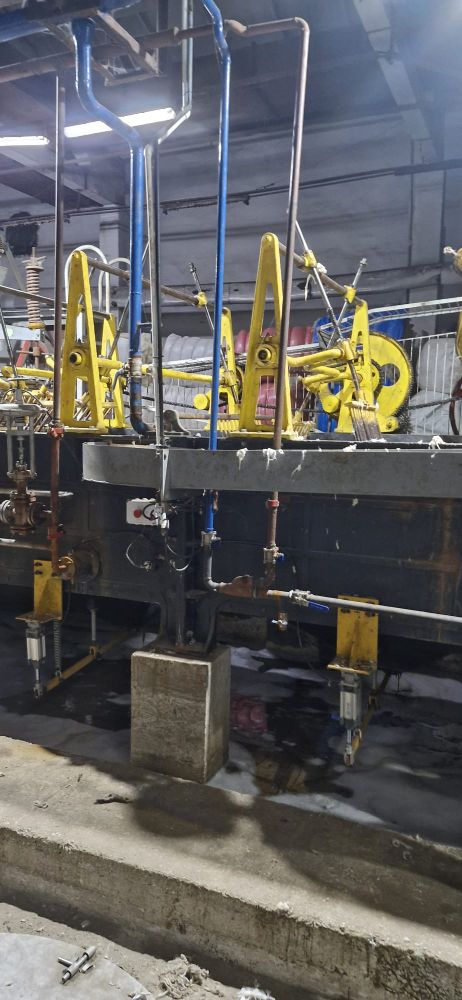

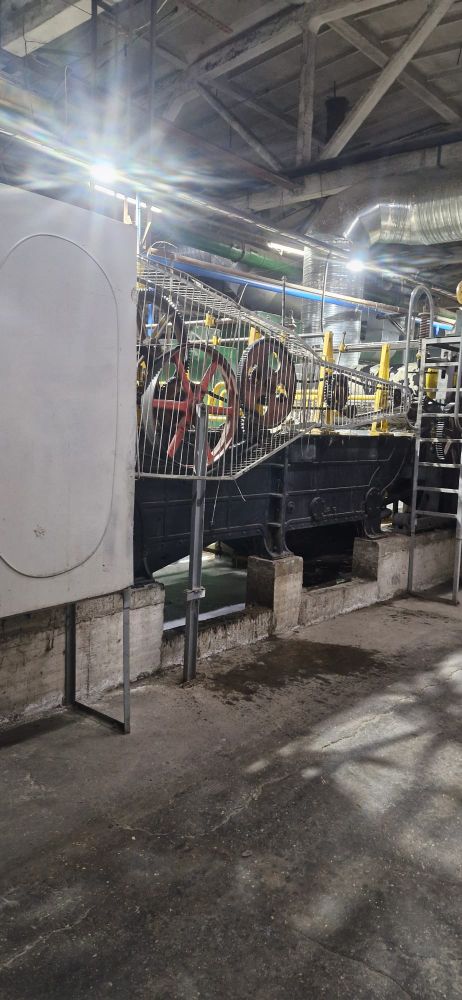

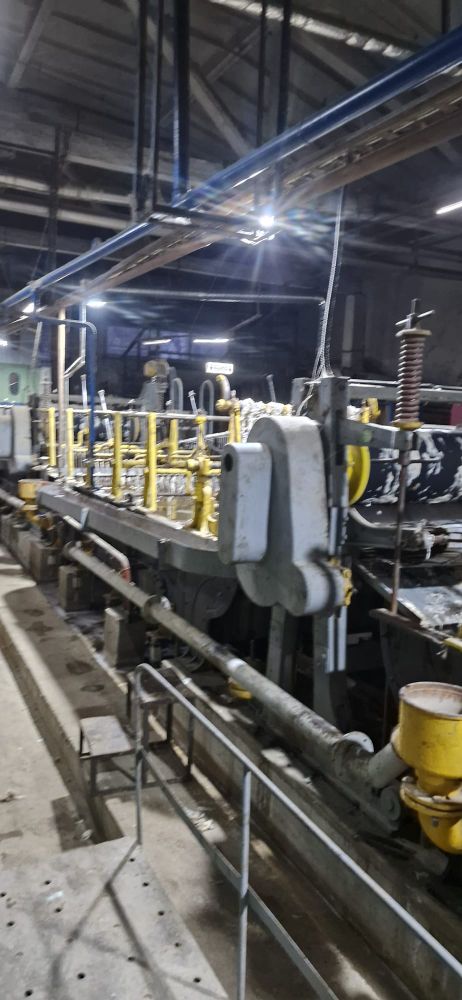

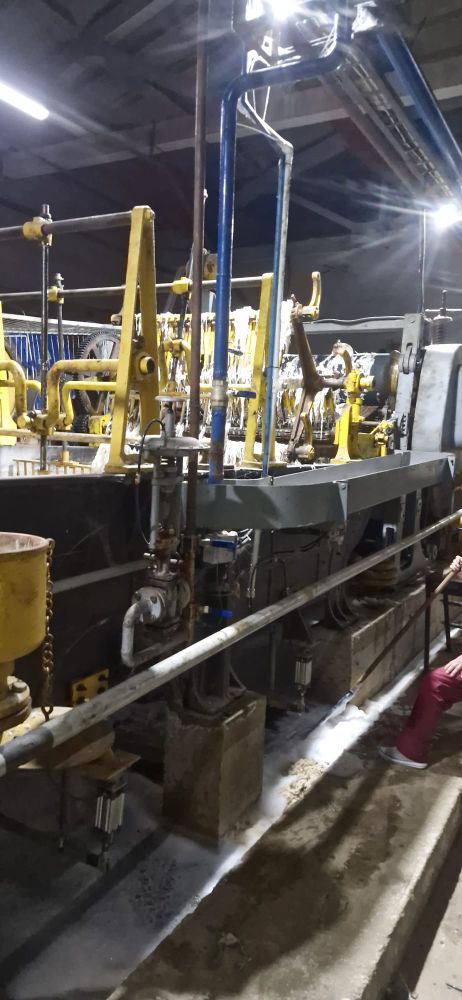

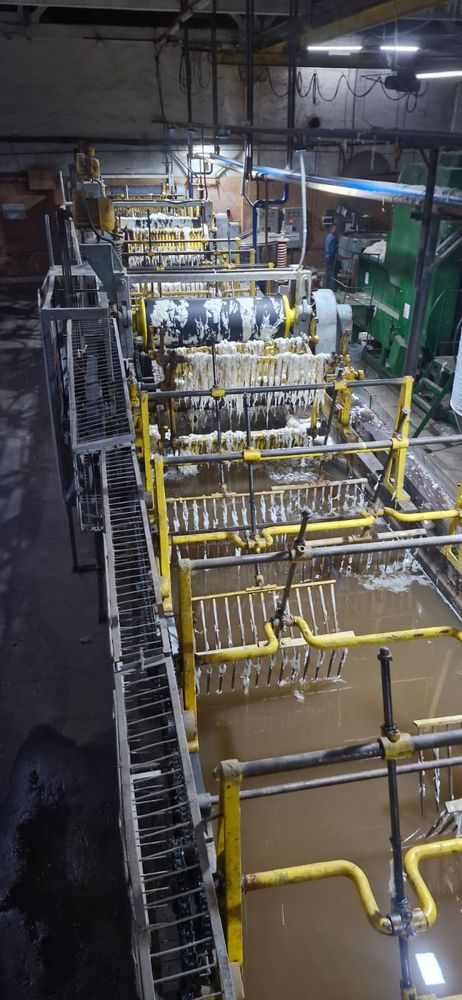

1. Line consisting of 5 washing tanks with 5 spin-drying systems equipped with upper rubber rollers.

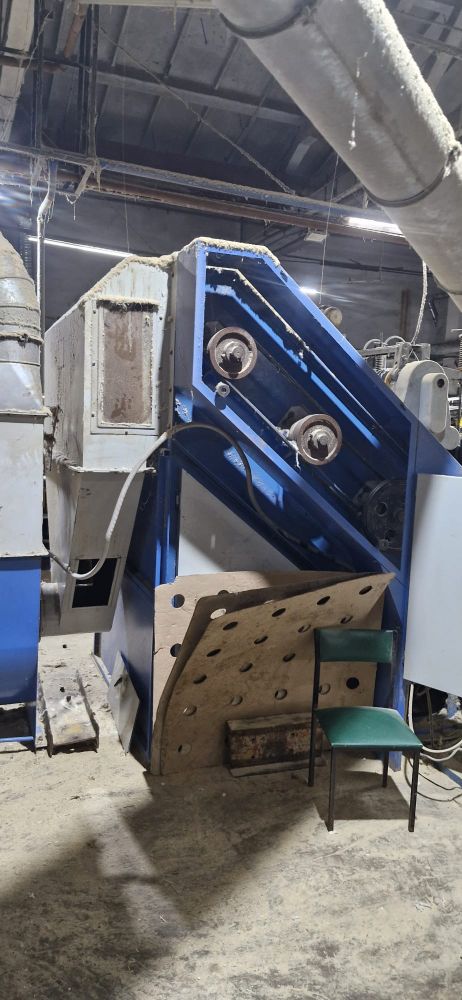

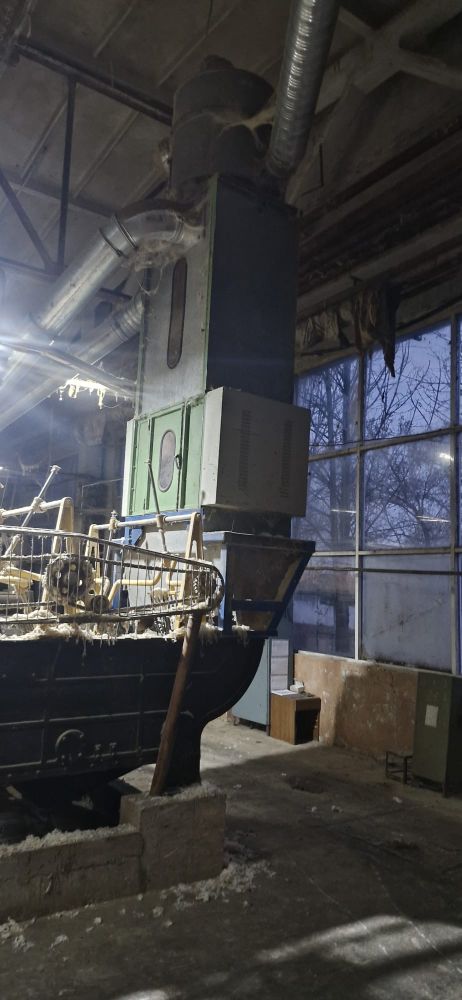

2. One opener with a productivity of 650 kg/h.

3. Dryer: Not included.

4. Washing Tank Volumes:

3 x 8-ton tanks,

2 x 5.5-ton tanks

5. Operating Temperature: 46–55 °C

6. Heating Type: Steam

7. Tank Material: Cast iron, 1 cm thick

8. Washing Line Power Consumption: 45 kW/h

---

Dimensional Parameters

1. Total Line Length: 38 m

2. Tank Width: 1.80 m

3. Total Line Width: 2.8 m

4. Total Height: 3 m

5. Installation: Requires foundations and connections (water, drainage, steam, electricity)

---

General Condition

The line has recently been installed and is operational.
